> >>>Vertical Pressure Steam Sterilizer/ Autoclave

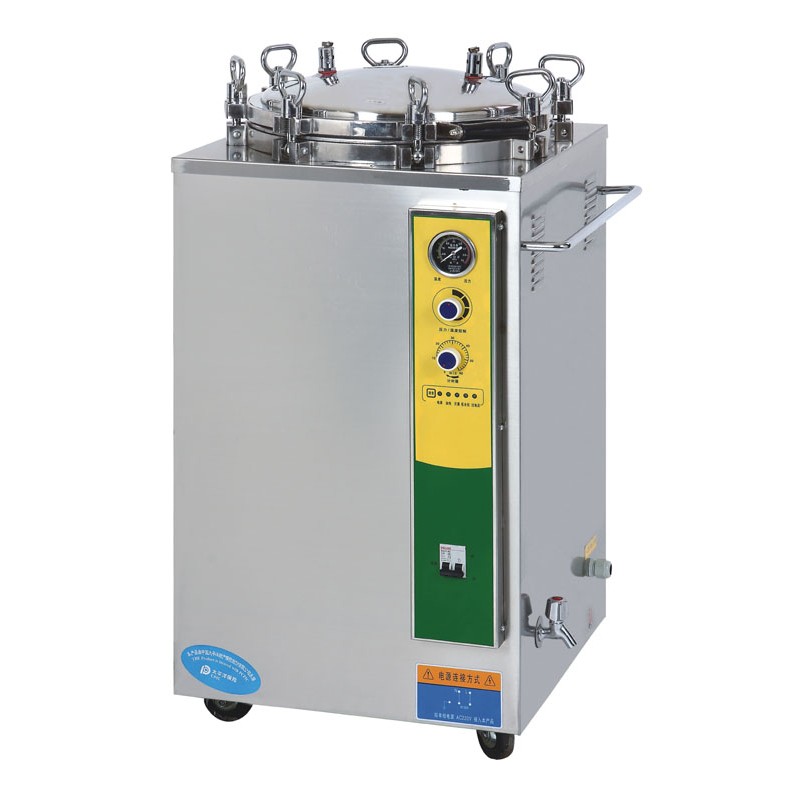

Vertical Pressure Steam Sterilizer/ Autoclave

SA-V Series

Vertical Pressure Steam Sterilizer/ Autoclave, knob control, temperature range 105 ~ 134°C, timer function, 35L to 150L, electric heating

More details

More info

Characteristics:

  1. Indicator light indicates working state
  2. Over-temperature & over-pressure auto-protection device
  3. Double scale indication pressure gauge
  4. Safe protection of water lacking
  5. With the below exhaust structure, which is convenient to exhaust the cold air
  6. Automatically shut off with beep reminding after sterilization
  7. Fully stainless steel structure
  8. Easy to operate, safe and reliable
  9. With two stainless steel sterilizing baskets

Technical Data：

Model

SA-V35LJ
SA-V35HJ

SA-V50LJ
SA-V50HJ

SA-V75LJ
SA-V75HJ

SA-V100LJ
SA-V100HJ

SA-V120LJ

SA-V150LJ

Lid

Flip
Hand wheel

Flip
Hand wheel

Flip
Hand wheel

Flip
Hand wheel

Flip

Flip

Chamber volume

35L

50L

75L

100L

120L

150L

Chamber size (mm)

(φ318×450)

(φ340×550)

(φ400×600)

(φ440×650)

(φ480×660)

(φ510×740)

Working pressure

0.22MPa

0.22MPa

0.22MPa

0.22MPa

0.22MPa

0.22MPa

Working temperature

134°C

134°C

134°C

134°C

134°C

134°C

Max working pressure

0.23 Mpa

0.23 Mpa

0.23 Mpa

0.23 Mpa

0.23 Mpa

0.23 Mpa

Heat average

≤±1°C

≤±1°C

≤±1°C

≤±1°C

≤±1°C

≤±1°C

Timer scope

0～60min

0～60min

0～60min

0～60min

0～60min

0～60min

Temperature scope

105～134°C

105～134°C

105～134°C

105～134°C

105～134°C

105～134°C

Power

2.5KW

3KW

4.5KW

4.5KW

6KW

6KW

Voltage

220V.50Hz

220V.50Hz

220V.50Hz

220V.50Hz

220V.50Hz

220V.50Hz

Overall dimension(mm)

480×460×850

520×520×980

560×560×980

590×590×1080

600×640×1140

670×690×1130

Transport dimension(mm)

570×550×970

590×590×1110

650×630×1150

680×650×1220

730×730×1270

760×760×1270

G.W/N.W (kg)

56/ 42

68/ 50

90/70

105/85

125/ 100

135/110
