Autoclave/Sterilizer

> >>>Digital Vertical Pressure Steam Sterilizer/ Autoclave

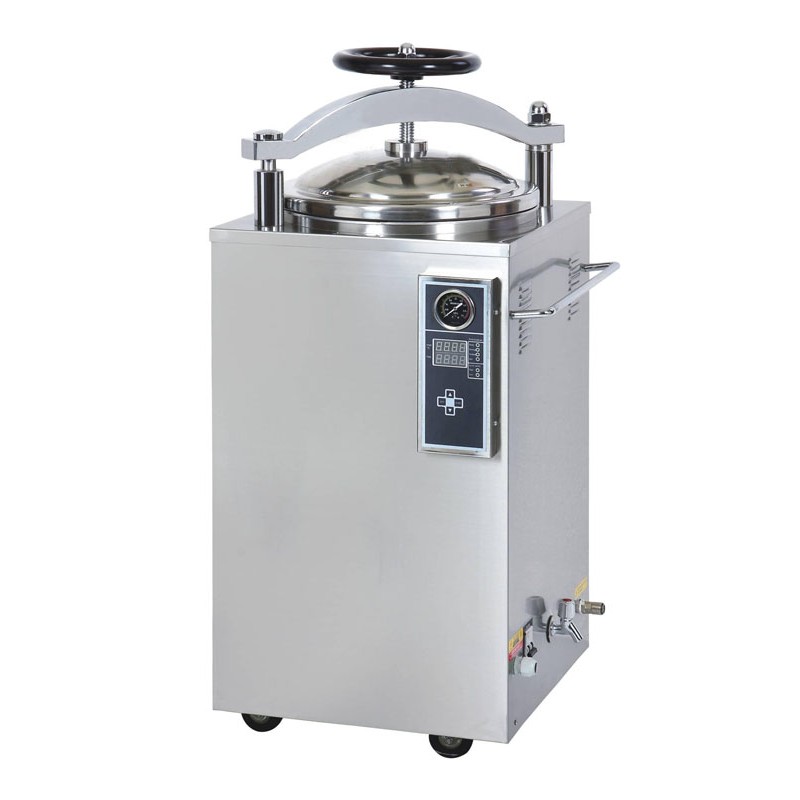

Digital Vertical Pressure Steam Sterilizer/ Autoclave

SA-V Series

Digital Vertical Pressure Steam Sterilizer/ Autoclave, temperature range 105 ~ 134°C, timer function, 35L to 100L, electric heating

More details

More info

Characteristics:

  1. Fully stainless high-alloy steel structure
  2. Digital display of working status, touch of key
  3. Manual or semi-automatic control
  4. Auto discharge the cool air, and steam discharging automatically after sterilization
  5. Automatically shut off with beep reminding after sterilization
  6. The accident protection system
  7. Automatic off of heating elements at reducing of a water level
  8. Blocking top cover at working
  9. Blockage of starting at opening
  10. Heater protection sensor
  11. Pressure and water level control
  12. With three stainless steel sterilizing baskets
  13. Easy to operate, safe and reliable
  14. The drying system is optional, which can be equipped according to the customers request

Technical Data：

Model

SA-V35LD
SA-V35HD

SA-V50LD
SA-V50HD

SA-V75LD
SA-V75HD

SA-V100LD
SA-V100HD

Lid open

Flip
Hand wheel

Flip
Hand wheel

Flip
Hand wheel

Flip
Hand wheel

Chamber volume (mm)

(φ318×450)

(φ340×550)

(φ400×600)

(φ440×650)

Chamber size

35L

50L

75L

100L

Working pressure (MPa)

0.1-0.22

0.1-0.22

0.1-0.22

0.1-0.22

Working temperature

120-134°C

120-134°C

120-134°C

120-134°C

Max working pressure

0.23 Mpa

0.23 Mpa

0.23 Mpa

0.23 Mpa

Heat average

≤±1°C

≤±1°C

≤±1°C

≤±1°C

Timer

0 ~ 99min
0 ~ 99h59min

0 ~ 99min 0 ~ 99h59min

0 ~ 99min 0 ~ 99h59min

0 ~ 99min 0 ~ 99h59min

Temperature range

105 ~ 134°C

105 ~ 134°C

105 ~ 134°C

105 ~ 134°C

Power

AC220V.50Hz

AC220V.50Hz

AC220V.50Hz

AC220V.50Hz

Voltage

2.5Kw

3Kw

4.5KW

4.5KW

Dimensions (mm)

480×460×850
450×450×1010

520×520×980
510×470×1130

560×560×980
560×560×1120

590×590×1080
540×560×1250

Packing size (mm)

570×550×970
570×550×1150

590×590×1110
590×590×1280

650×630×1150
650×630×1280

680×650×1220
680×630×1370

G.W/N.W

56Kg/ 42Kg
72Kg/56Kg

68Kg/50Kg
88Kg/ 68Kg

90Kg/70Kg
100Kg/ 80Kg

105Kg/85Kg
110Kg/ 85Kg
