Autoclave/Sterilizer

> >>>Auto Horizontal Cylindrical Pressure Steam Sterilizer

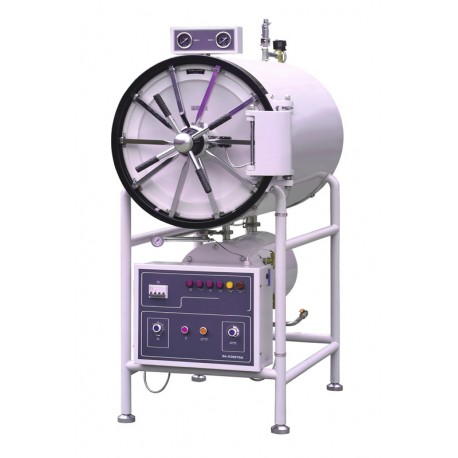

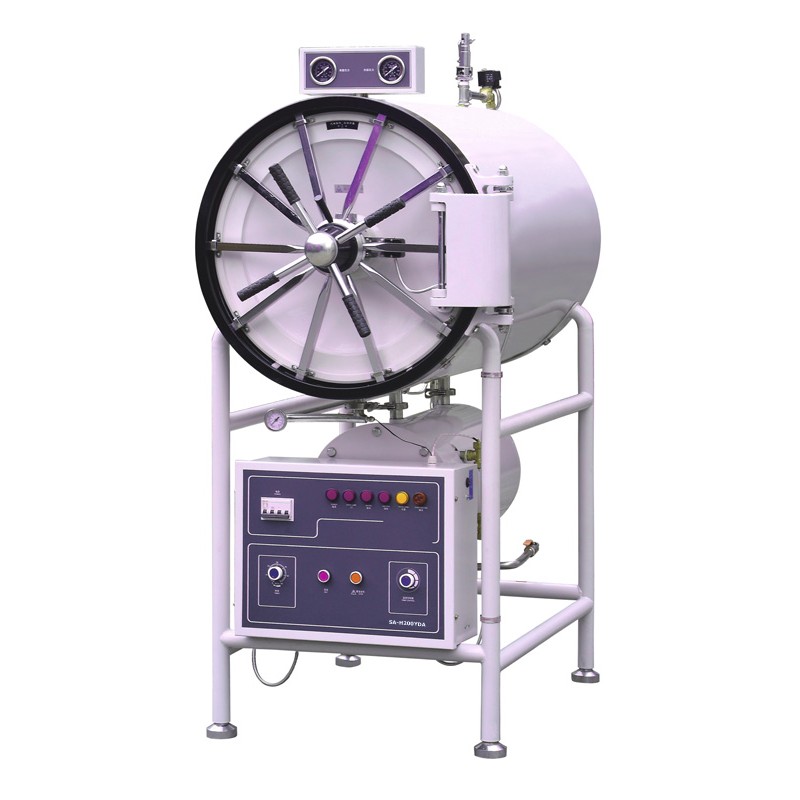

Auto Horizontal Cylindrical Pressure Steam Sterilizer

SA-H Series

Microprocessor Horizontal Pressure Steam Sterilizer/ Autoclave, temperature range 105/50°C ~ 134°C, 90 ~ 500 liters, auto exhaust and vacuum drying

More details

More info

Characteristics:
1. Automatic sterilization controlled, easy to operate.
2. With drying function.
3. With over-temperature, over-pressure auto-protect device.
4. Safety interlocking device, steam cannot entry into chamber and alarm when door not closed;  Door cannot be open when pressure large than 0.027MPa
5. Safety value pressure relief protection.
6. Power supply will be cut-off automatically when lacking water or water level is not reached.
7. Over-current protection.
7. Chamber of the sterilizer is made of quality stainless steel.

Standard models:

Model

SA-H90YDA

SA-H150YDA

SA-H200YDA

SA-H280YDA

SA-H400YDA

SA-H500YDA

Chamber volume

90L

150L

200L

280L

400L

500L

Chamber size (mm)

φ440×700

φ440×1000

φ515×1000

φ600×1000

Φ700×1100

Φ700×1300

Working pressure

0.22MPa

0.22MPa

0.22MPa

0.22MPa

0.22MPa

0.22MPa

Working  temp.

134°C

134°C

134°C

134°C

134°C

134°C

Temp. range

105°C - 134°C

105°C - 134°C

105°C - 134°C

105°C - 134°C

105°C - 134°C

105°C - 134°C

Time of sterilization

0-60 min

0-60 min

0-60 min

0-60 min

0-60 min

0-60 min

Time of drying

0-60 min

0-60 min

0-60 min

0-60 min

0-60 min

0-60 min

Heat average

≤±1°C

≤±1°C

≤±1°C

≤±1°C

≤±1°C

≤±1°C

Power

9KW/380V 50Hz

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

18KW/380V 50Hz

18KW/380V 50Hz

Dimension (mm)

1100×600×1300

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830

1800×900×1820

Packing size (mm)

1250×750×1850

1550×750×1850

1560×820×1850

1680×920×2100

1800×1050×2100

1850×1050×2100

 G.W/N.W

270/200 KG

320/240 KG

350/260 KG

465/365 KG

530/520 KG

580/470 KG

All in stainless steel:

Model

SA-H150YDC

SA-H200YDC

SA-H280YDC

SA-H400YDC

Chamber volume

150L

200L

280L

400L

Chamber size (mm)

φ440×850mm

φ515×1000mm

φ600×1000mm

φ700×1100mm

working pressure

0.22MPa

working  temperature

134°C

Adjustment of temperature

40°C- 134°C

Time of sterilization

0-99 min

Time of drying

0-99 min

Heat average

≤±2°C

Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

18KW/380V 50Hz

Dimension

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830

Transport dimension

1550×750×1850

1560×820×1850

1680×920×2100

1600×1050×2100

 G.W/N.W

320/240 KG

350/260 KG

465/365 KG

530/420 KG
