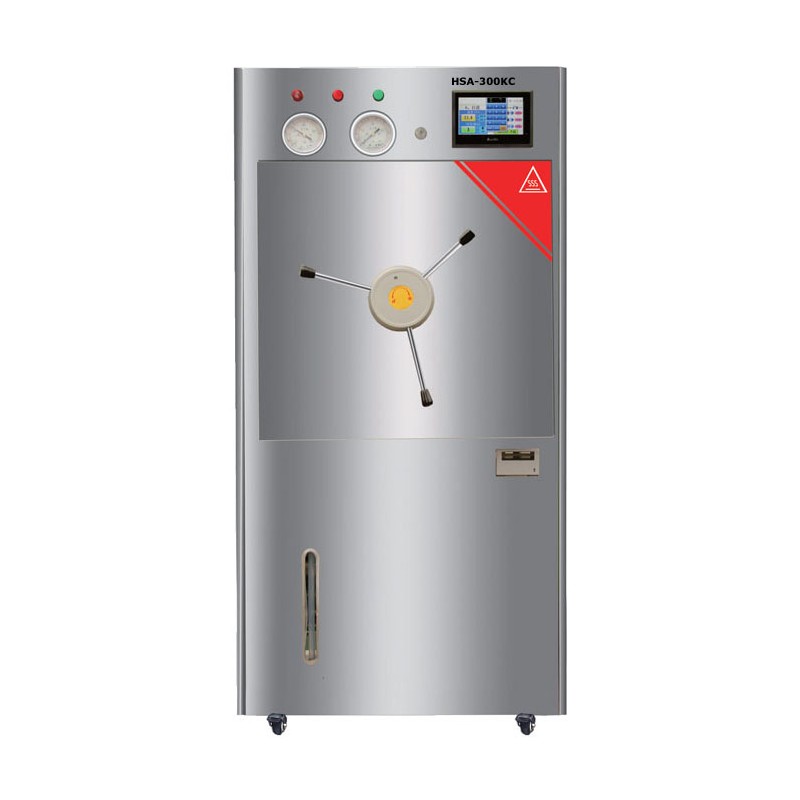

Microcomputer Controlled Horizontal Steam Sterilizer / Autoclave

HSA Series

Microcomputer control Horizontal Pressure Steam Sterilizer/ Autoclave, all in stainless steel, LCD touch control, temperature range 50°C ~ 138°C, 120L/200L/300L, auto exhaust

More details

More info

Suitable for sterilizing instruments, dressings, liquid, utensils, and other items

Features

  • SS304 Stainless steel material
  • Rotary type fast openings lid with below features:
    • Safety valve to ensure maximum pressure at 0.24Mpa
    • dual scale readings II pressure gauge
    • automatic discharge of cold air
    • Internal circulation steam exhaust
  • electric heating type
  • pressure interlock interactive
  • pressure self-locking linkage cover
  • water-leak protection
  • Self-expand silicone sealing ring
  • Water drain valve

Model

HSA-120KC

HSA-200KC

HSA-300KC

Capacity

120L

200L

300L

Sterilizing

Auto control

Auto control

Auto control

Steam emission by internal circulation

Yes

Yes

Yes

Display

LCD touch

LCD touch

LCD touch

Lid open

Rotary

Rotary

Rotary

Safety max pressure

0.24Mpa

0.24Mpa

0.24Mpa

Timer range

0 ~ 99 hours

0 ~ 99 hours

0 ~ 99 hours

Temperature setting

50 ~ 138°C

50 ~ 138°C

50 ~ 138°C

Power

7.5 KW

9 KW

10.5 KW

Chamber size (D*H mm)

Φ400x960

Φ500x1020

Φ600x1050

Quick open

●

●

●

Auto control of sterilization program

●

●

●

Safety interlock

●

●

●

Water leakage protect

●

●

●

Self inflating seal

●

●

●

Auto alarm

●

●

●

Auto exhaust

●

●

●

Power supply

380V/50Hz

380V/50Hz

380V/50Hz

Weight

230kg

250kg

270kg

Dimensions (mm)

1160x622x1550

1460x722x1650

1460x822x1750
