Multi-Inoculation Instrument

Mainly used for bacterial resistance test. Widely used in the medical field of drug testing, drug production, drug research and development.
Instrument Description

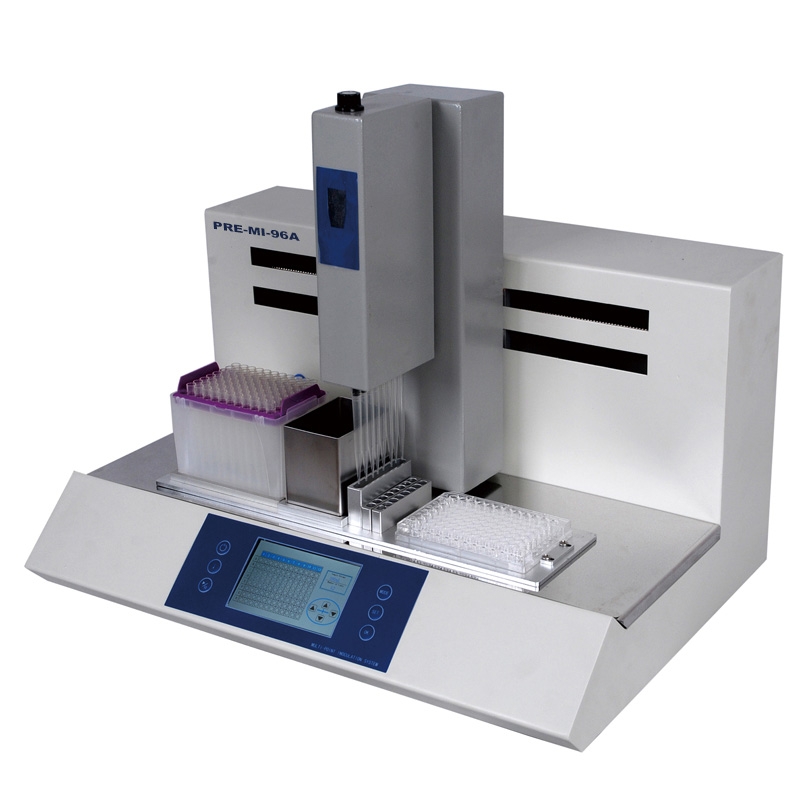

Our independent research and development of HMI-96A multi-species bacterial resistance test instrument - broth dilution method special equipment, can complete a 96-well plate inoculation in about 6min, breaking the tube broth dilution method tedious process. With Robot double track transmission shifts the liquid sample, including drugs, broth and broths. Unique, patented mechanism designed to automatically complete pipette tip drained away and replaced. With position memory function can remember the last power-down pipette tip position. Imported high-precision pipette sampling system so that the sample volume is more accurate, vaccination process is simple, fast and accurate.

Features:
1.The similar market products can only load one sample at work, the other two need to stop the machine and to replace the tube, then start to complete the test tube again. Time is longer and need someone to look after the experiment. Our products can simultaneously and automatically load broth, liquid and bacteria in drug dilution, the integration of the three steps, time is short, speed is fast and no need laboratory personnel take care.
2. The similar market products take 96 samples and replaces 96 tips at one time, the experiment cost is high . Our product just need replace one tip for each kind of sample which reduces experimental cost.
3. The similar market products need to vortex and mix with another instrument before cultivation, while our products can be on-line mixing and adjustable mixing times, mixing effect is better than oscillation mixing mode, and improve test efficiency and reduce experimental cost.
4The similar market products is generally the maximum amount 200μL, the step size is 50μL, our products are with wide sampling range 50-300μL, step size 5μL, more accurate sample volume.
5. With additional features, can be used alone as a sampler.

 Software screenshot display

Technical Parameters:
Number of channels: 8 channels
Pipetting volume: 50- 300μL
Step changes in volume: 5μL
Mixing times: 0-10 times
Sample location selection: 1-12
Pipetting accuracy: ± 1% (50 - 300μL)
Dimensions: 560 x 441 x 402mm
Power: 1 0 0 W
Applicable Plate Type: 96-well cell culture plate

Weight：12 Kg

Supporting equipment:
Standard configuration: one host, one power cable, one standard containers box with pipetting head tank , one waste pipetting head collection tank , the sample solution tube 30, one tube tank, one 96-hole plate
Optional: 96-hole plates ,pipetting needle ,bar code printers, barcode scanners
