Balance & Scales

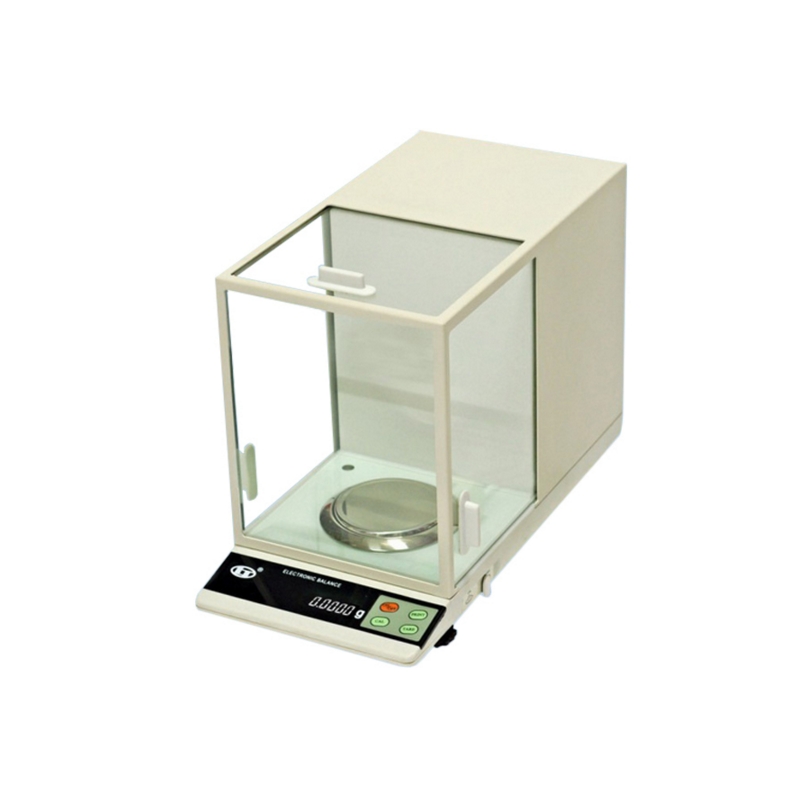

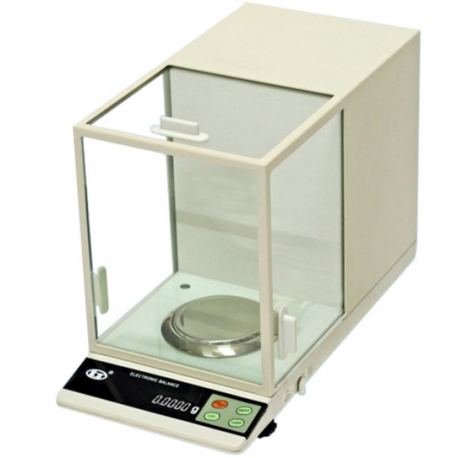

Analytical Balance

Model: AB1804

high precision weighing 1/100000. Both large and high precision. Higher price ratio.

Features

All metal shell, more reliable, can effectively shield the environment of electricity, magnetism, etc. for the balance of the impact, to adapt to the environment is stronger, the relative environmental requirements are smaller. Industrial grade structure design, the use of a long life.
Rear type electromagnetic force sensor, three open the door of the big wind shield, spacious weighing room. The higher resolution is obtained by using the internationally recognized high sensitivity, high stability and high stability.
Internal calibration weights, calibration weights are not artificial contact, effectively avoid due to the weight of the weight of the damage caused by the balance error. More to prevent the loss caused by weight loss. Weight loading, unloading operation using mechanical structure, firm and reliable.
Cobalt blue fluorescent digital tube display. Highlight, durable.
With overload / underload alarm, temperature compensation, full range, accumulated down, peeled / bottom hook weighing (optional bottom hook).
Optional RS232 output interface, and computer, printer etc., fully meet the needs of laboratory quality analysis.
Dual range, one machine, daily weighing 1/10000, high precision weighing 1/100000. Both large and high precision. Higher price ratio.

Technical parameter

Model	AB1804
Sensor	rear electromagnetic force sensor
Max measure range	30g (0.01mg)/180g (0.1mg)
Min Reading	0.00001g(0.01mg)/0.0001g(0.1mg)
Min measurement	0.005g(5mg)/0.05g(50mg)
Repeatability	≤±0.0001g(0.1mg)
Linear error	≤±0.0002g(0.2mg)
Four position error	≤±0.0002g(0.2mg)
stabilization time	<3seconds
Pan size	Φ90mm
Weighing room dimension	185×155×210 mm
Calibration	Automatic calibration(standard weight manual)
weight	Built-in
Calibration weight	Standard circular weight (F1grade 100g)
Environmental temperature	0°C~45°C
Environmental Humidity	20%RH ~ 85%RH
weight	11.5kg
Power supply	AC220V±10%,50Hz
Consumption	<20W
Displayer	Cobalt blue fluorescence digital tube display
The bottom hook/hydrostatic support	optional
Communication interface	RS232(optional)
Weighing room	big wind cap with 3 doors
Key	6 keys
Function key	Switch net weight automatic calibration function
Size	410×195×280 mm
Package size	570×370×450 mm
