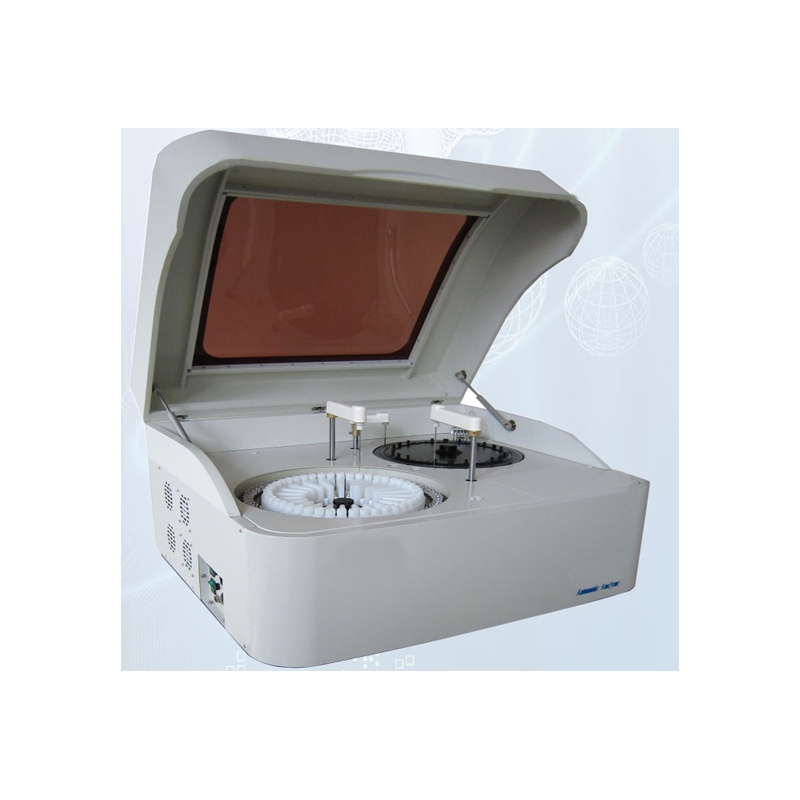

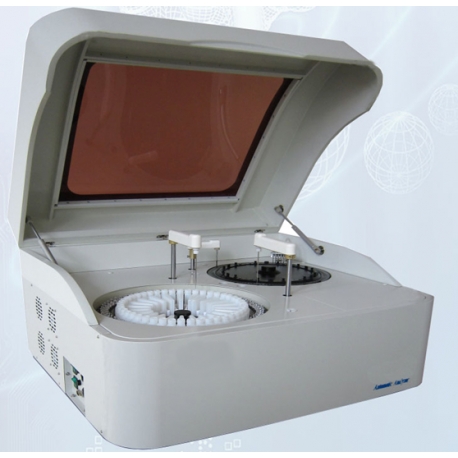

Automatic Biochemical Analyzer

Overall Performance
Equipment type        Fully automatic discrete, STAT priority
Analysis rate          Constant speed 300T/H(without ISE)
Test principle          Colorimetry, turbidimetry
Analysis method       End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration

Sample System
Sample Tray          60 sample positions, random access of all samples
Sample Volume       2-50ul, 0.1ul increment
Sample probe         Liquid level detection, the remaining detection, collision protection etc.
Sample Containers    Sample cups, Micro tube, Original blood-collection tube, etc.

Reagent System
Reagent Tray         45 reagent positions
Reagent Volume      R1:25-300ul, R2:10-150ul, 0.1ul increment
Reagent Probe        Liquid level detection, the remaining detection, collision protection etc.
Reagent Refrigeration    4-15℃, independent power supply, 24-hour non-stop refrigeration

Reaction System
Reaction Tray         Rotating tray, 120 cuvettes
Cuvette              Reusable high quality cuvette, Optical diameter 6mm
Reaction Volume      180-500ul
Incubation system     Bi-directional liquid-air device
Temperature          37℃±0.1℃ with real-time display

Optical System
Light source            12V35W halogen lamps, over 2000 hours
Photoelectron road      after spectrophotometry
Wavelength            340,405,450,510,546,578,630,700nm
Absorbance range      0-3.500Abs
Resolution             0.0001Abs

Operating System
PC operating system       Windows XP or above
Analysis control software      English version graphical operating software
Report printing            Report formats support the user-defined mode, QC and state information etc.
System connection        RS-232

Working Conditions
Power supply             AC 220V±22V, 50Hz±1Hz, power 1.5KVA
Ambient Temperature      15-30 ℃
Humidity                  35-80%
Water consumption        7L/Hour
Dimension                Bench top: 750mm*520mm*600mm
