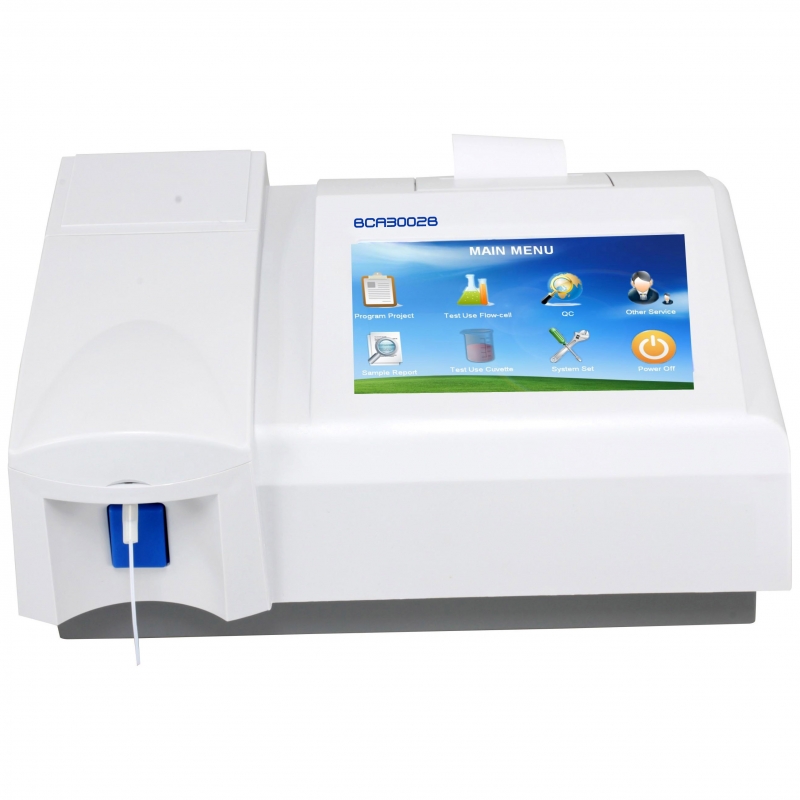

Semi-automatic chemistry analyzer

Features:

1.      7 inch Color LCD , Touch screen
2.      Flow cell and Cuvette test mode compatible
3.      Real time curve showing
4.      7 wavelength , 90 test item pre-programmed
5.      Memory for 10,000 sample results
6.      Light source hibernate function making lamp life longer
7.      RS232 interface, PC connecting

Parameters:

1.      Test mode: Kinetic, End point, Two point, Absorbance
2.      Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position
3.      Wavelength precision: ±2 nm, width ≤ 10nm
4.      Absorbance range: 0~4.500 Abs
5.      Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs
6.      carry over: < 1%
7.      Repeatability CV: < 1%
8.      Incubator: 37°C、30°C、25°C、Precision : ±0.1°C
9.      Sample volume: 0~3000 uL (≥500uL recommend)
10.   Data Storage: ≥10000
11.   Quality control curve:  、SD、CV%、L-J quality control curve for every test item
12.   Flow cell: 32 uL quartz glass, 10 mm
13.   Lamp: Philips 6V 10W Halogen Lamp with long life
14.   Screen: 7 inch color LCD
15.   CPU: ARM series high speed micro CPU
16.   Printer: Internal thermal sensitive printer
17.   Interface: RS-232
18.   Work Environment: Temperature 0°C ~ 40°C, Humidity: ≤80%
19.   Power supply: 100~240VAC，50-60Hz，100VA
20.   Dimension: 340(L)*270(W)*160(H)
21.   Weight: 5 kg

Usual test list

Liver function:

ALT   AST   ALP   T-BIL   D-BIL   TP   ALB   TTT   CHE   Nh3

Renal function:

BUN   CRE   UA   URE   CO2-CP   γ-GT

Lipids:

T-CHO   TG   HDL-C   LDL-C

Cardiac function:

CK   CK-MB   LDH

Immune proteins:

IGA   IGG   IGM   C3

Others:

GLU   HGB   AMS
