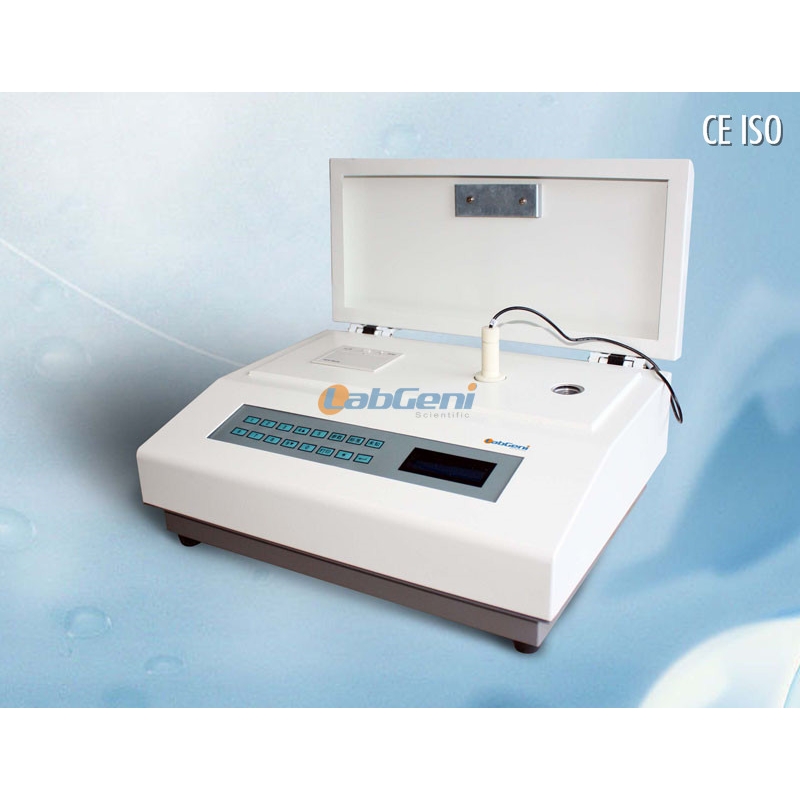

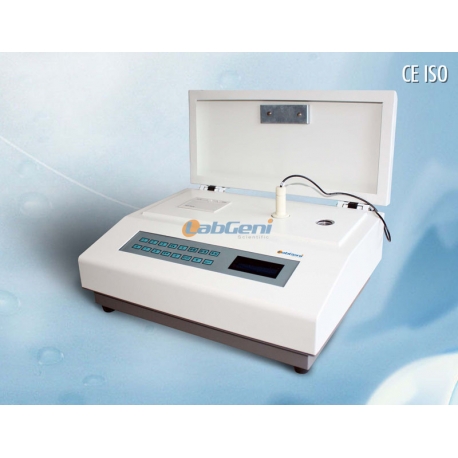

BOD Rapid Measuring Instrument

Main feature:
BOD-1 BOD rapid measuring instrument (economy) is a high-tech patent product integrated biological science and modern electronic technology , rapid determination of BOD in water samples, the instrument has two independent operating systems, for 2 people operate at the same time, stable performance, good reproducibility, easy operation, measurement one sample only needs 8 minutes, timely information feedback, provide the basis for the evaluation of water quality and water treatment operation control, is ideal detection tool for environmental protection worker. This instrument enables the introduction of rapid determination of BOD become more economical and practical.

Main technical performance:
Measurements: Biochemical Oxygen Demand (BOD)
Measuring principle: Microbiological electrode
Measuring range: 2-4000mg / L
Standard Method: HJ / T86-2002
Relative standard deviation: ≤5%
Sample measurement time: ≤8 min
Biofilm: use BOD5 special bacteria, can be directly measured without biochemical culture
Microbial membrane life: more than one year stored dry at room temperature, pot life of 30 days or more
Injection: manual injection
Thermostat mode: proportional constant temperature heating control, temperature control and high accuracy.
Data storage and printing: with print data storage function, can automatically store 170 data.
Installation conditions: Indoor
Ambient temperature: 5 ~ 40 ℃
External dimensions: 500 × 360 × 150mm
Weight: about 11 kg
Power: AC220V, 50HZ
