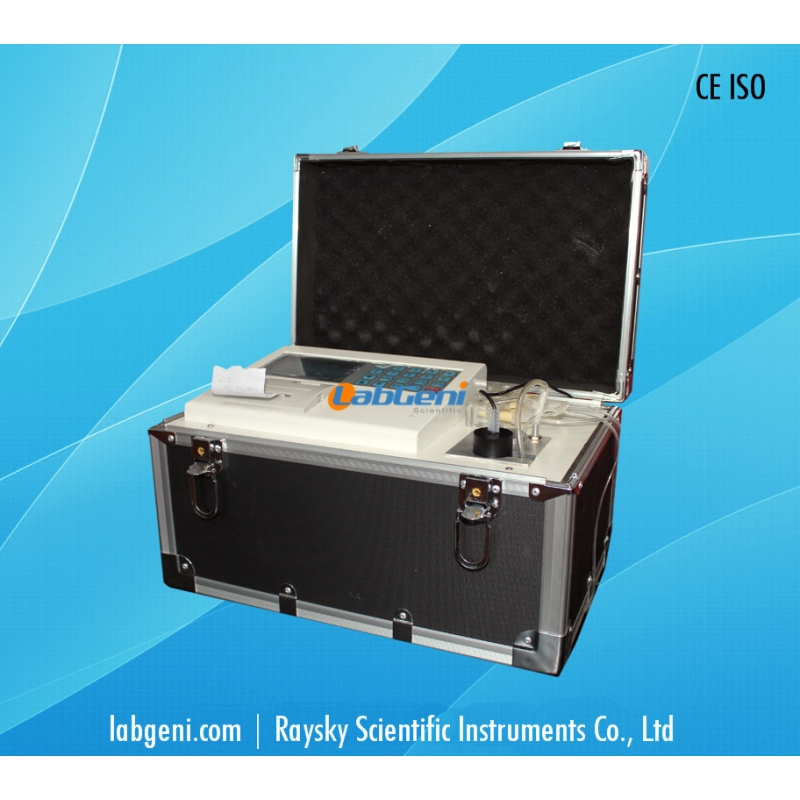

Portable BOD Rapid Measuring Instrument

1.  Portable hand-held, mobile and flexible, to achieve water quality BOD-site testing
2. AC and DC, suitable for laboratory and field areas without electricity
3.  Initial liquid flow path automatic switching system, water samples detection can be done automatically by the instrument
4.  Using a large capacity battery, charging time can be used continuously for thirty hours
5.  International advanced Biological membrane preparation technology + modern high-tech electronic
6.  Large-screen LCD display state and measurement results, with 140 data storage and printing capabilities

BOD-3BXPortable BOD Rapid Measuring Instrument is high-tech products integrated biological Sciences and the modern electronic technology. It is based on the original desktop BOD detector produced by our company, according to user needs and market characteristics specially developed a new generation of hand-held portable BOD speed measuring device, the instrument has a small, portable, flexible features, easy to carry and use, high measurement accuracy and reliable. The instrument uses AC and DC power supply, built-in high-capacity battery, one tine electric charge can be used continuously for thirty hours. Adopts the company's initial liquid flow path automatic switching devices, water samples can be done automatically by the instrument, you can use in the laboratory and meet the requirements in the wild areas without electricity, especially for the evaluation of water pollution emergencies, It Provides a reliable and powerful guarantee.

Instrument functions and indicators:
1. Measurements: Biochemical Oxygen Demand (BOD)
2. Measuring principle: Microbiological electrode
3. Injection mode: Domestic initial liquid flow path automatic switching devices, water samples can be done by the control of the instrument automatically, without external devices
4. Measurement method: automatic measurement, each unknown sample and standard sample automatically and continuously measuring 1-9 times
5. Cleaning method: elution standard, unknown pipeline with automatic cleaning function
6. Measuring range: 2-4000mg / L
Standard Method 7: HJ / T86-2002
8 relative standard deviation: ≤5%
9 Measurement sampling time: ≤8min
10 Thermostat mode: proportional constant temperature heating control, temperature control and high accuracy.
11 Data storage and printing: with print data storage function, can store 140 data.
12 External dimensions: 390 × 250 × 238mm
13 Weight: approximately 10.5 kg
14 Power: AC and DC, AC220V, 50HZ DC12V lithium battery
