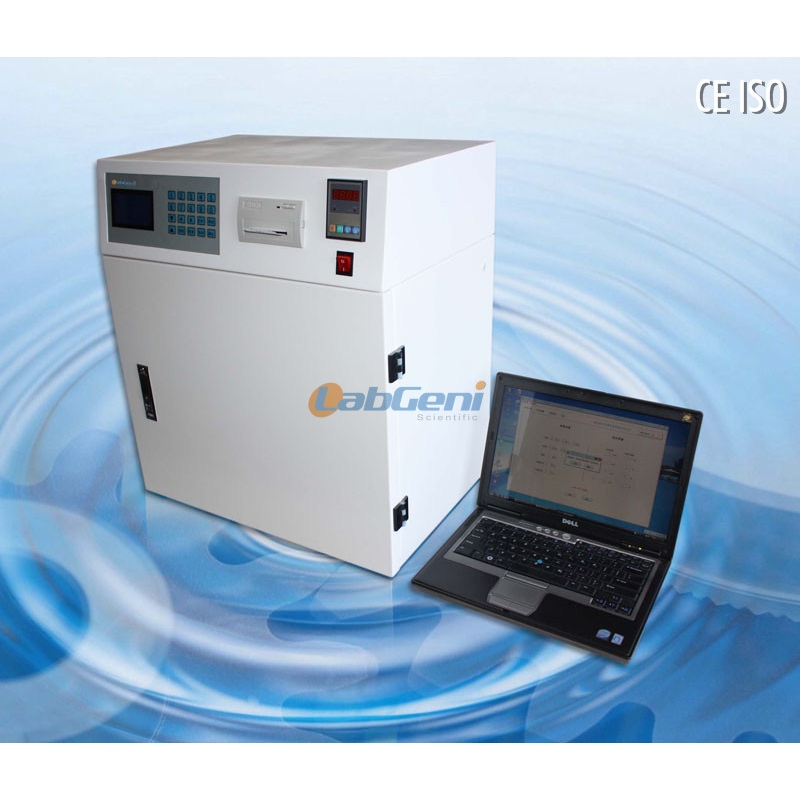

BOD Rapid Measuring Instrument

Product introduction:

Domestic Initial liquid flow path automatic switching devices, without the help of an external injector implement automatic measuring instrument

BOD-07 BOD rapid measuring device, is the first BOD automatic rapid measuring device with the liquid flow path automatic switching system flow-microbial electrode method, without the aid of an external injection device automatically rapid determination of BOD in water, the equipment with high degree of automation , can be controlled by the upper PC computer  and also can be converted to a single stand-alone operation measurement, one time set can continuous measurement for seven samples, instrument with stable performance, easy operation, accurate measurement, measurement one sample only needs 8 minutes, the instrument consistent with national environmental Administration related industry standards, test methods incorporation into the "water and wastewater analysis" fourth edition, and list as a standard method for rapid determination of HJ / T86-2002 microbial sensors, the instrument can be widely used in BOD rapid detection of urban sewage treatment ,all types of surface water and industrial wastewater.

Technical Parameters
1. Measuring principle: circulation type microbial electrode method
2. Measuring range: 2 ~ 4000mg / L
3. Sample measurement time: 8min
4. Relative standard deviation: ≤5%
5. Control mode: a computer-controlled continuous measurement samples 7, for the exclusive domestic production.
6. Sampling method: the liquid flow path automatic switching devices, instrument built seven auto sampler, computer-controlled continuous feed automatic switching, the technology-based patents. Patent Number: 200920158907.5
7. Measurement: automatic measurement, each unknown sample and the standard sample can be automatically measured continuously 1-9 times
8. Required sample volume required: more than 40ml
9. Thermostat mode: proportional constant temperature heating control technology, automatic constant temperature maintained by the heater
10. Communication Interface: RS-232 interface for data transfer and host computer operating
11. Mode switch: manual measurement can be carried out / automatic measurement mode
12. Biofilm life: drying at room temperature to save more than a year, using more than 30 days after activation
13. Data storage: All data is automatically stored in the historical database can be edited using Excel software
14. Software Environment: Windows 95/98/200 / XP software localization
15. Switch mode: can a group set 6 automatic timer switch time
16. Cleaning method: elution standard, unknown three pipeline with automatic cleaning function
17. Machine dimensions: length 540 × width 370 × 620   Weight: 27Kg
18. Power: AC220V, 50HZ
