Centrifuge

High Performance Low-Speed Centrifuge

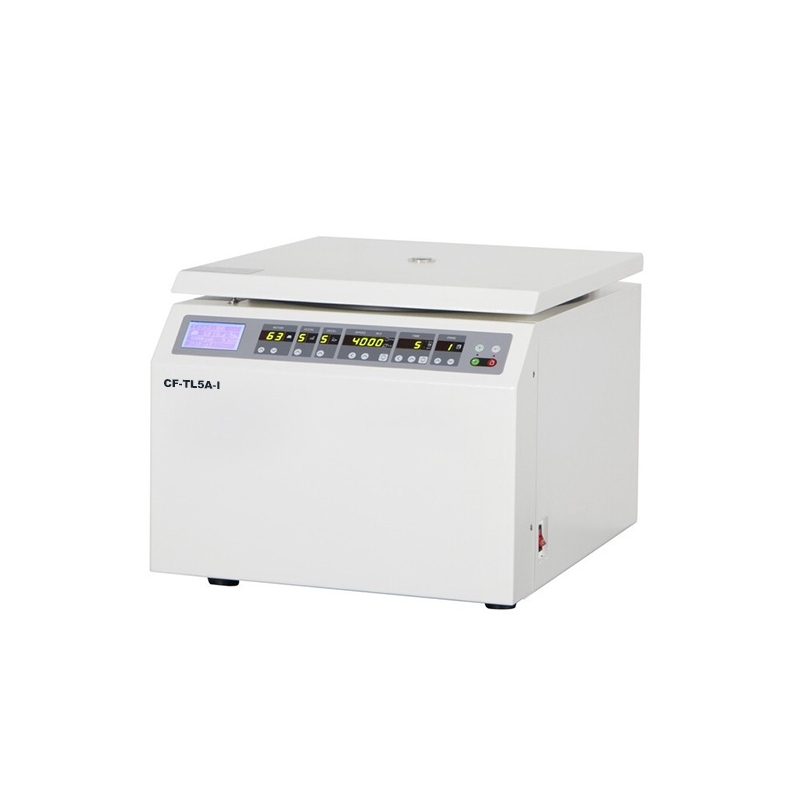

CF-TL5A-I Table-Type

More info

Features:
1. Advanced Control System, Excellent separation
1) Ten kinds of Accel/Decel modes can be selected; User can set up the operate parameter by themselves, to achieve the best centrifugal result.
2) Short running function, convenient for diversified centrifugation.
3) Proprietary SCT speed control technical, high efficiency.
4) Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.

2. High Safety, Ease of use
1) Automatic rotor identification system, no need to select rotor number.
2) Over speed, door and unbalanced protection.
3) Steel body, Stainless steel chamber, Steel Protective sleeve.
4) Can take the rotor with aerosol-tight lid for use with hazardous samples.

3. Friendly Display, Humanity Operate
1) LCD, LED multiple-screen display, the Program, Accel/Decel modes, RPM/RCF, Time, Temperature are all easy to set up without any key combination.
2) Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, can be store and use 20 kinds of self-defining operating modes directly by user-self.

4. Good parts, Reliable and longlasting
1) Brushless motor which has high torque, "SKF" supper speed bearing.
2) Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO).

TECHNICAL PARAMETER


Model

CF-TL5A-I

Max Speed

5500r/min

Max RCF

5310×g

Max Capacity

3000ml

Speed Accuracy

±20r/min

Time Rang

1-999min

Power Supply

AC 220V 50Hz 15A

Noise

≤65dB

Dimension

540×460×390mm

Weight

54kg

CF-TL5A-I Rotor


Rotor Type

Capacity

Max Speed (r/min)

Max RCF(×g)

Dimension of tube (mm)

Swing Rotor

4×50/100ml

5500 r/min

5310×g

Φ38×124

4×500ml
(adaptor 12×50ml /8×100ml)

4000 r/min

3580×g

Φ80×140

4×250ml
(adaptor 8×50ml /32×10ml)

4000 r/min

3500×g

Φ64×113

4×750ml

4000

3580



32×10/15ml

4000 r/min

2810×g

Φ16×85-118

8×50ml

4000 r/min

2810×g

Φ28×105-115

48×5ml

4000 r/min

2800×g

Φ14×54

148×7ml

4000 r/min

3080×g

Φ13×78

120×7ml

4000 r/min

3080×g

Blood tube

Microplate Rotor

2×2×96

4000 r/min

2300×g

Microplate Rotor
