Centrifuge

Low-Speed Temperature Control Centrifuge

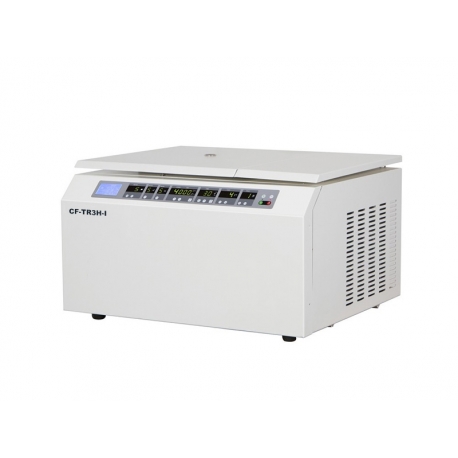

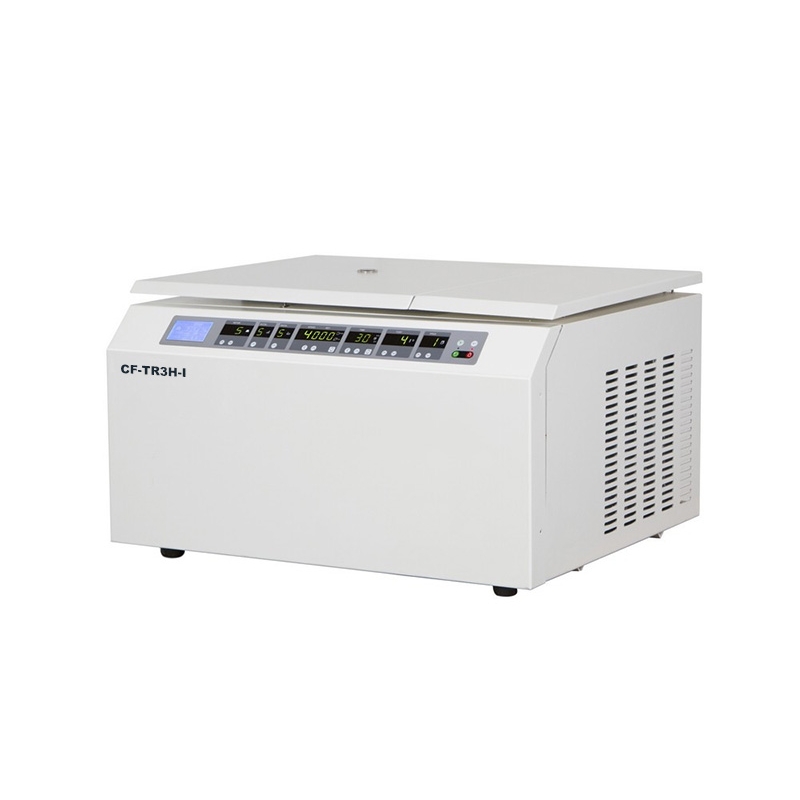

CF-TR3H-I Table-Type

More info

Features:
1. Advanced Control System, Excellent separation
1) Ten kinds of Accel/Decel modes can be selected; User can set up the operate parameter by themselves, to achieve the best centrifugal result.
2) Short running function, easy to diversification centrifugation.
3) Proprietary SCT speed control technical, high efficiency.
4) Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.
5) During 4°C and 37°C the temperature accuracy is ±1°C d in static state, temperature control is more precise.
6) Can be stability in the 37°C, and mainly applies to centrifugal sperm and temperature sensitive cell.

2. High Safety, Ease of use
1) Automatic Rotor identification system, no need to select rotor number.
2) Over temperature, over speed, door and unbalanced protection.
3) Steel body, Stainless steel chamber, Steel Protective sleeve.
4) Can take the rotor with aerosol-tight lid for use with hazardous samples.

3. Friendly Display, Humanity Operate
1) LCD, LED multiple-screen display, the Program, Accel/Decel modes, RPM/RCF, Time, Temperature are all easy to set up without any key combination.
2) Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, can be store and use 40 kinds of self-defining operating modes directly by user-self.

4. Good parts, Reliable and longlasting
1) Brushless motor which has high torque, "SKF" supper speed bearing, Freon-free compressor from Europe.
2) Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO).



TECHNICAL PARAMETER


Model

CF-TR3H-I

Max Speed

5000r/min

Max Rcf

3550

Max Capacity

800ml

Speed Accuracy

±30

Time Range

1-999min

Temperature Accuracy

±1°C

Temperature Range

-20°C-+40°C

Noise

≤65dB

Power Supply

220V /50HZ 18A

Dimension

630×550×360(mm)

Weight

85kg



Rotor


Rotor Type

Number

Capacity

Max Speed

Max RCF

Dimension of tube   (mm)

Swing Rotor

No.1

4×50ml/100 ml

5000 r/min

3550×g

Φ38×124

No.2

24×10ml/15ml

4000 r/min

2270×g

Φ16×85-118

No.3

8×50/100ml

4000 r/min

2270×g

Φ28×105-115

No.4

48×5ml

4000 r/min

2230×g

Φ14×54

Microplate Rotor

No.5

2×2×96 Holes

4000 r/min

2300×g

Microplate Rotor

Angle Rotor

No.6

24×1.5/2.0 ml

5000 r/min

2300×g

Φ10×42
