Centrifuge

New Designed Table type Low speed Centrifuge

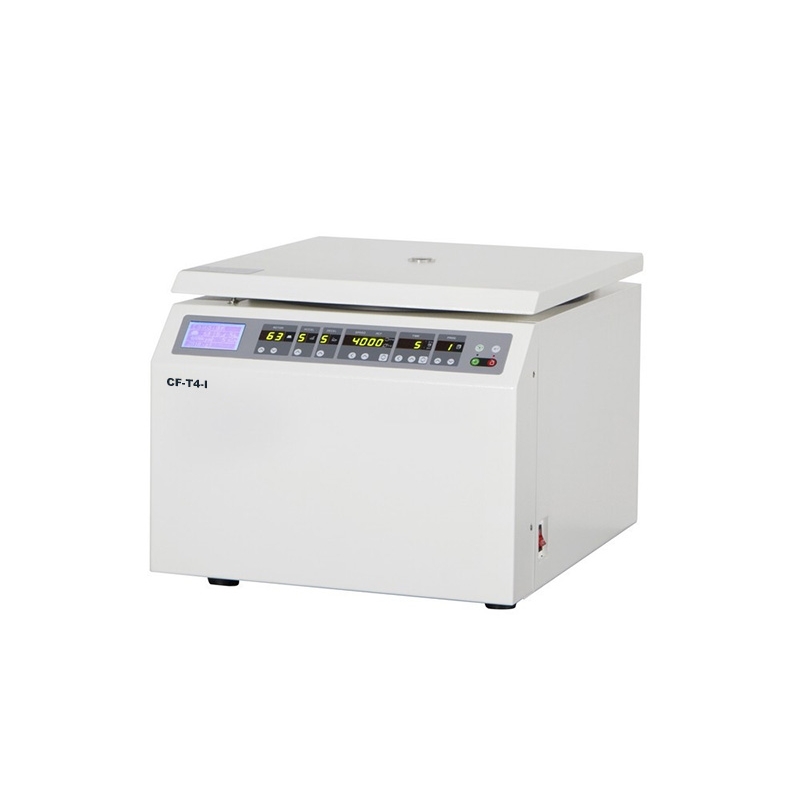

CF-T4-I

More info

FEATURES:
1. Advanced Control System, Excellent separation
1) 10 kinds of Accel/Decel modes can be selected; User can set up the operate parameter by themselves, to achieve the best centrifugal result.
2) Short running function, easy to achieve diversification of centrifugation.
3) Proprietary SCT speed control technical, high efficiency.
4) Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.
2. High Safety, Ease of use
1) Auto-ID instrant rotor identification system, no need to select rotor No.
2) Over temperature, over speed, door and unbalanced protection.
3) Steel body, Stainless steel chamber, Steel Protective sleeve.
4) Can take the rotor with aerosol-tight lid for use with hazardous samples.
3. Friendly Display, Humanity Operate
1) LCD and LED multiple display, the Programs, Accel/Decel modes, RPM/RCF, Time, and Temperature are all easy to set up.
2. Microprocessor control, can start the instrument with RCF directly, can store and use 40 kinds of self-defining operating modes directly.
4. Good parts, Reliable and long-lasting
1) Brushless converter motor which has high torque, "SKF" supper speed bearing.
2) Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO).
TECHNICAL PARAMETER


Model

CF-T4-I

Max Speed

5000r/min

Max RCF

4390×g

Max Capacity

800ml

Speed Accuracy

±20r/min

Time Rang

1-999min

Power Supply

AC 220V 50Hz 15A

Noise

≤65dB

Dimension

540×460×390mm

Net Weight

54kg

ROTOR OPTIONS:


Rotor Type

Number

Capacity

Max Speed (r/min)

Max RCF(×g)

Dimension of tube (mm)

Swing Rotor

No.1

4×50/100ml

5000r/min

4390×g

Φ38×124

No.2

32×10/15ml

4000r/min

2810×g

Φ16×85-118

No.3

8×50/100ml

4000r/min

2810×g

Φ28×105-115

No.4

40/48×5ml

4000r/min

3500×g

Blood Collection Tube

Microplate Rotor

No.5

2×2×96

4000 r/min

2300×g

Microplate
