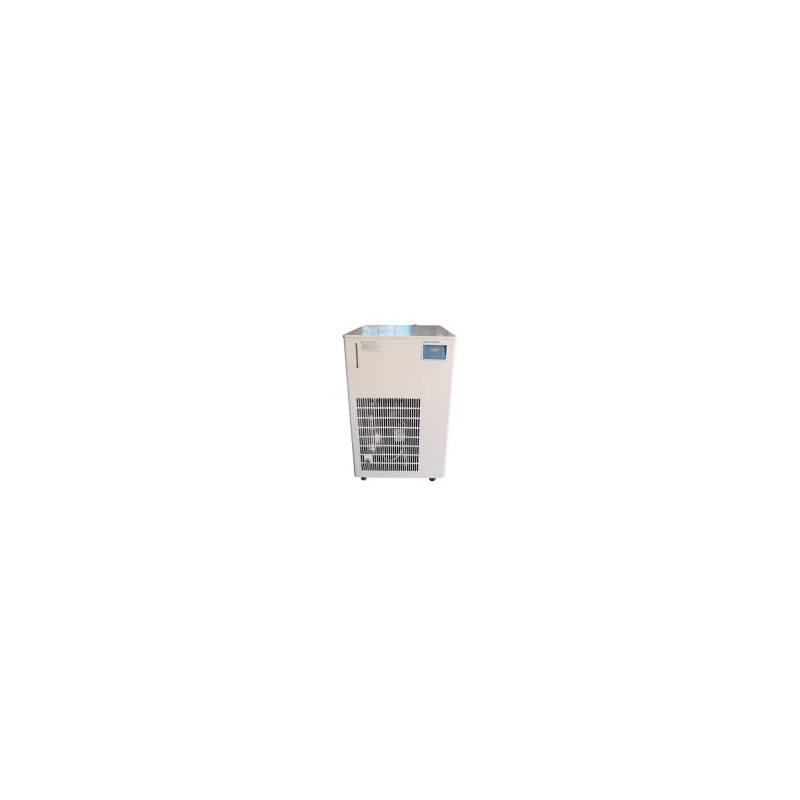

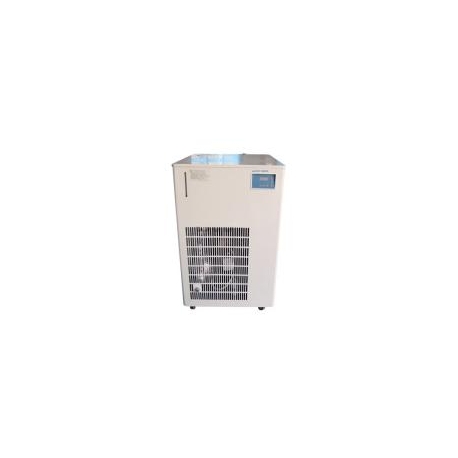

10°C Circulation Chiller

WCCP Series

Provide circulating cooling water with constant flow and pressure to meet the needs of cooling-required machines and facilities. Achieve the purpose of guaranteeing facilities working well and saving water.

More details

More info

Description:
Provide circulating cooling water with constant flow and pressure to meet the needs of cooling-required machines and facilities. Achieve the purpose of guaranteeing facilities working well and saving water.
The pre-infusing distilled water and deionized water circulating in the equipment makes it especially suitable for electron microscope, X-ray apparatus, laser, mass spectrometer, X-ray diffractometer, molecular pump, nuclear magnetic resonance, accelerator, vacuum coating facility, electron beam welding machine, ion spray painting, fatigue of material testing machine, high low temperature test box and other equipments ,facilities , as well as several Rotary Evaporators and Reaction Kettle working simultaneously in this warm area.

Features:

  1. Digital display, with high precision of temperature control.
  2. Temperature and flow rate adjustable.
  3. Alarm & protection function for liquid flow to avoid problem when flow rate is decreased by blocking.
  4. Adopt famous brand compressor, stable performance and can continuously work for long term.

Technical Parameters:


Model

Cooling power(W)

Temp. range(°C)

Temp. accuracy(°C)

Power(V/Hz)

Liquid tank capacity(L)

Pressure(bar)

Flow rate(L/min)

Dimensions(mm)

WCCP-300

300

+10 ~ +25

±1

220/50

9

0.4~0.6

7~40

640L×390W×430H

WCCP-1000

1000

220/50

12

1.7~3.6

8~58

610L×485W×890H

WCCP-1800

1800

220/50

12

1.7~3.6

8~58

640L×550W×890H

WCCP-2500

2500

220/50

12

1.7~3.6

8~58

670L×580W×1000H

WCCP-3500

3500

220/50

19

1.7~3.6

8~58

750L×635W×1020H

WCCP-4500

4500

220/50

19

1.7~3.6

8~58

730L×590W×940H

WCCP-6500

6500

380/50

35

1.7~3.6

8~58

920L×710W×1150H

WCCP-10000

10000

380/50

150

1.7~3.6

8~58

1360L×690W×1375H

WCCP-13000

13000

380/50

200

1.7~3.6

8·58

1270L×840W×1375H

WCCP-20000

20000

380/50

300

1.3~2.8

16~116

1340L×970W×1680H

WCCP-30000

30000

±2

380/50

150

1.3~2.8

16~116

1673L×780W×1185H

WCCP-45000

45000

380/50

200

2.1~3.0

83~183

1720L×960W×1140H

WCCP-60000

60000

380/50

200

1.6~2.6

133~366

2100L×1080W×1050H

WCCP-90000

90000

380/50

1300

1.6~2.6

133~366

2400L×1100W×1100H
