Automatic Solid Phase Extraction

Introduction

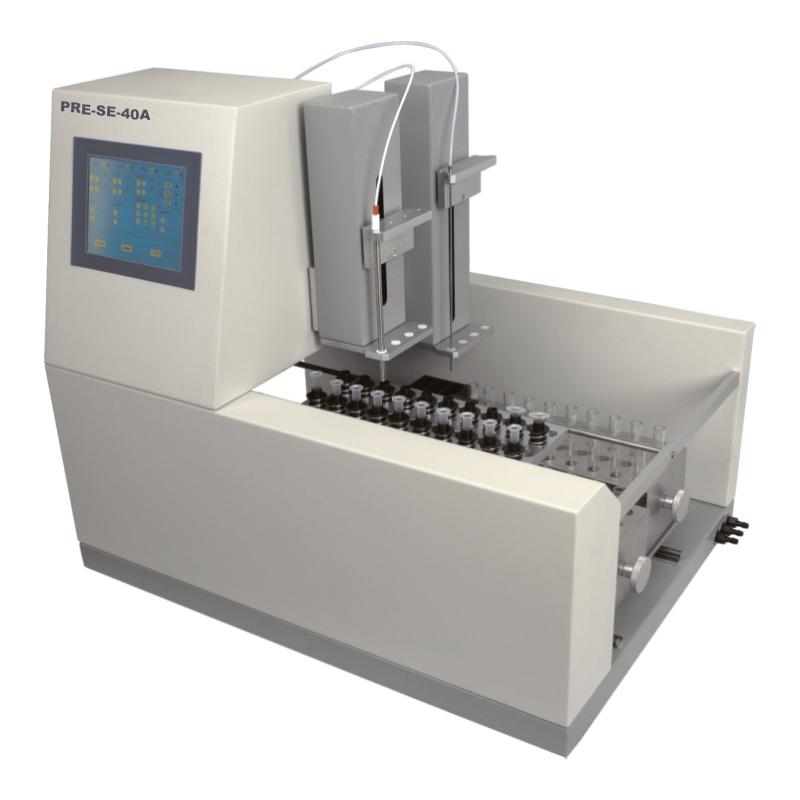

PRE-SE-40A automatic solid-phase extraction system can be fully automated complete SPE activation, sample loading, washing, eluting the whole process, the process is carried out using a syringe pump to take liquid and liquid injection, 10 channel switching valve can switch among many kinds of solvents. solvent injection plunger put the samples and solid into phase extraction column to elutriate, spiral screw track replaces the extraction column, the sample tube and collecting tube. Wherein when inject the liquid ,it uses a unique pressure seal technology which can effectively control the flow rate through the column. Conduct needle and syringe pump are imported, imported screw spiral track can accurately locate.

Application
Widely used in agricultural products (tobacco, fruits, vegetables, tea, medicine, etc.), animal and plant samples, aquatic products, sample extraction in environmental samples and chemical residues in concentrated pretreatment. Protects the column and detector from contamination, accelerate sample handling speed, thereby improving the sensitivity, lower the minimum detection limit. Applicable to GB / T 19648-2005 fruits and vegetables more than 446 kinds of pesticide residue determination method, SC / T3021-2004 agriculture industry standard detection of malachite green residues in aquatic products by the Ministry of Agriculture NY / T 761-2004 process vegetables and fruits organic pesticide testing of samples with SPE pretreatment requirements.

The necessity to buy Optional automatic SPE
When the sample is very complex. Solid phase extraction is one of the most effective extraction purification methods. And less time-consuming, high degree of automation, accurate flow rates and energy saving solid-phase extraction system is what nowadays researchers are pursuing for.

Features:

1. Most of automatic SPE device sold on the market are needle type injection .The way makes that there is a large dead volume on the upper end of the extraction column. when replacing the solvent ,the added solution would be mixed with the original solution which is on the upper end of the extraction column. Then produce new eluent which can’t expect, seriously affecting the elution reproducibility . Our products use liquid injection plunger to inject liquid, no gap between the plug and the injection liquid extraction column bed, no solution mixed phenomenon when solvent , greatly improves the reproducibility of the experiment, and reduces the experiment error.

2. When the automatic SPE device sold on the market needs mix the solvent and does elution, most of them use manual match .Our products can mix on line, greatly improves test efficiency of the solid-phase extraction and reduces reagent consumption.

3.The needle washing mode for most of products on the market are outer wall spray cleaning, the needle wash technology developed by our company is to make the outer wall cleaning more easy and clean, and you can specify needle wash solvents, cleaning capacity and the number of cleanings.

4. Sampling of the products on the market has pipeline dead volume, resulting in sample quantity  not correct, reverse sampling techniques developed by our company  can  achieve accurate sampling.
5. Products sold on the market are organic and aqueous phases two kinds of waste collecting mode, our products increase waste collection of biological samples, making more environmentally friendly and safer when do the biological sample extraction.
6. The products sold on the market need replace device when upgrade from a single-channel to multi-channel, our products can be upgraded to2-4 channels on the basis of the original machine, no need to replace equipment, greatly reduce the cost of the instrument.

Powerful Software Support


Technical Parameters
Number of Channels: 1 (can be extended to 2-4 channels)
Injection pump Accuracy: 0.5%
Sample volume: 0-25mL / stroke (injection can be repeated until reached the required sample injection volume)
Sample flow rate: 0.1-100mL / min
Solvent: 7
Batch processing of samples: 40
Collection tube: 40
Multicomponent collection: 40 / single channel; 10 / four-channel
Drying gas input pressure: 80psi
Drying gas output pressure: 30psi
Waste collection types: A, B, C three kinds
Extraction column specifications: 1mL, 3mL, 6mL
Hydraulic blockage threshold pressure: 0.2Mpa
Weight: 25KG
Power supply: 220V / 50hz
Power: 100W

Supporting devices Guide
Standard: 40 sample tube rack, 40 test tubes +3 kinds of waste collection rack, sampling needle, the plunger (1,3,6mL), general extraction column bracket, 3ml extraction column adapter, 25mL syringe pump, 50ml sample tube 40, 15ml collection tube 40
Optional: (1,3,6mL) extraction column, sample injection tube, collection tube

Buyer's Guide
PRE-SE-40A is a fully automated solid-phase extraction device, four basic processes of solid-phase extraction can be set, including a variety of solvents proportions mixing ,sampling needle automatic cleaning, overpressure alarm. No need someone to watch after setting. It is an instrument which is with highly automation. This instrument is suitable for the experiment with a large number of samples and needs high precision.
