Continuous Flow Filtering Centrifuge

Filtration Centrifuge / Continuous flow filtering centrifuge

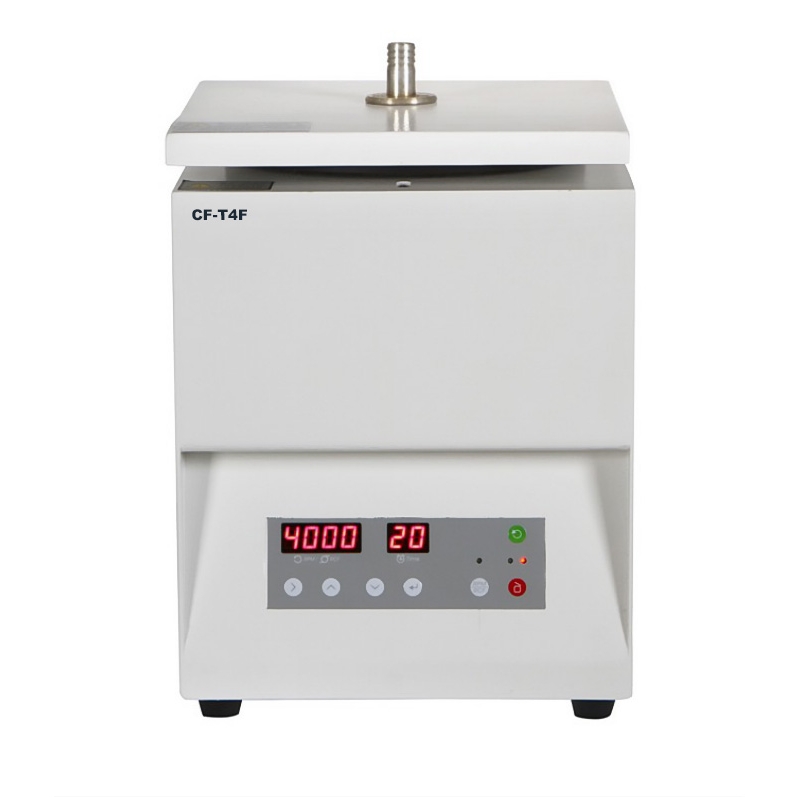

CF-T5F/CF-T4F Table-type

Now this filtering centrifuge is widely used in chemical industry, light industry, pharmaceutical, food, environmental protection and other industries. In environmental applications mainly refers to the industrial and civil sewage treatment sludge generated during the process of dehydration.

More details

More info

Filtering centrifuge applications: can also be used to prevent the materials pollution to the working environment. As the action element in the power source, the pharmaceutical industry and food industry in cleanliness requirements are guaranteed. Particularly in the application of sodium sulfate, ammonium chloride, soda plant, power plant flue gas desulphurization, metallurgy and coking industry sulfur gypsum filtration, sewage disposal, feed grade calcium salt separation by centrifuge etc. Now this filtering centrifuge is widely used in chemical industry, light industry, pharmaceutical, food, environmental protection and other industries. In environmental applications mainly refers to the industrial and civil sewage treatment sludge generated during the process of dehydration.
FEATURES:

  1. Microprocessor control, operated by touch key, LED display, easy to use.
  2. Brushless Motor, maintenance free.
  3. Steel body, stainless steel centrifugal chamber, corrosion resistant, esay to clear, safe and stable
  4. Continuous centrifugal and automatic filtering system, high filtration efficiency.

TECHNICAL PARAMETER


Model

CF-T4F

CF-T5F

Max Speed

4000r/min

4000r/min

Max RCF

2100×g

3500×g

Max capacity

4000ml

5000ml

Time Range

0-99min

0-99min

Power Supply

220V 50Hz 10A

220V 50Hz 10A

Noise

≤65dB

≤65dB

Dimension

320×400×348(mm)

330×380×320(mm)

Net weight

32kg

40kg

 ROTOR


Model

Rotor type

Capacity

Max Speed (r/min)

Max RCF(×g)

CF-T4F

Continuous rotor

4000ml

4000

2100

CF-T5F

Continuous rotor

5000ml

4000

3500
