High Temperature Dropping Point Apparatus

Overview

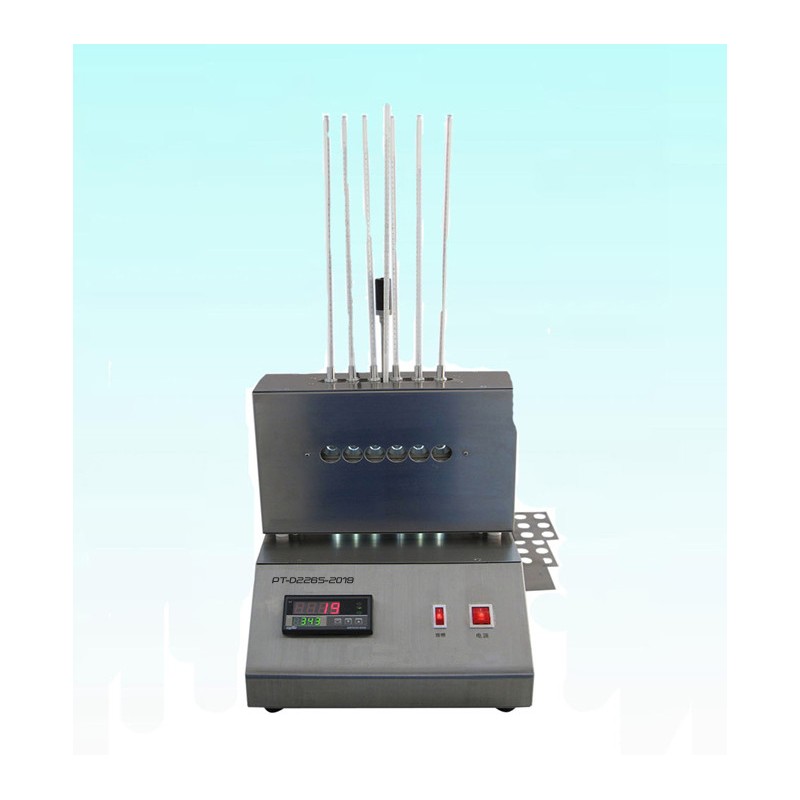

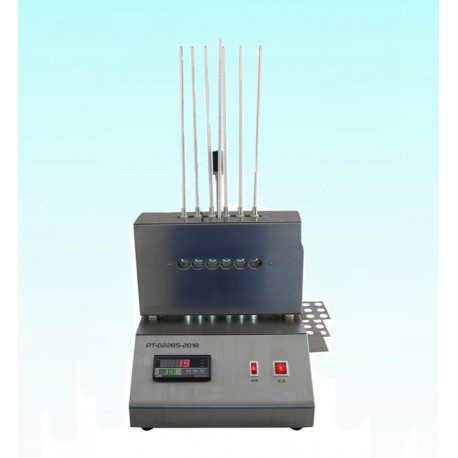

PT-D2265-2019 High Temperature Dropping Point Apparatus conforms to the ASTM D2265 Standard Test Method for Dropping Point of Lubricating Grease Over Wide Temperature Range. This apparatus covers the determination of the dropping point of lubricating grease and it test dropping points of lubricating greases at temperatures of up to 400°C.

Features
1.The apparatus adopts digital display temperature controller, which has high precision of temperature control. Output adopts solid state relay without contact, sparkle and noise. It has long operating life and it is stable, safe and reliable.
2. Metal bath is made by alloy aluminum. It gets six holes and can test six groups of sample at the same time.
3. The apparatus equips with light so that user can obverse the results of each holes.
4. Reasonable structure with easy operation, safe and reliable.

Technical parameters
1. Rated voltage: AC220V±10% 50Hz
2. Power: 750W
3. Temperature control mode: Digital display temperature controller
4. Test holes: Six
5. Light: 220V 8W
6. Ambient requirement: Temperature 20~30°C; Humidity≤85%
