Dry Oven

Blast Dry Oven

DO-GFL Series

DO-GFL Series Blast Dry Oven is suitable for electrical, electronics, instrumentation, materials, medicine, scientific research, production units; mainly used for drying items, baking, heat treatment, sterilization, curing, thermal insulation.

More details

More info

Application:
DO-GFL Series Blast Dry Oven is suitable for electrical, electronics, instrumentation, materials, medicine, scientific research, production units; mainly used for drying items, baking, heat treatment, sterilization, curing, thermal insulation.


Features:
1, Vertical style streamlined shape lateral, laboratory space saving;
2, High-quality stainless steel mirror chamber;
3, Double layer glass windows;
4, Unique fan speed control function;
5, Backside Horizontal air supply;
6, Stainless steel heating pipe to improve efficiency;

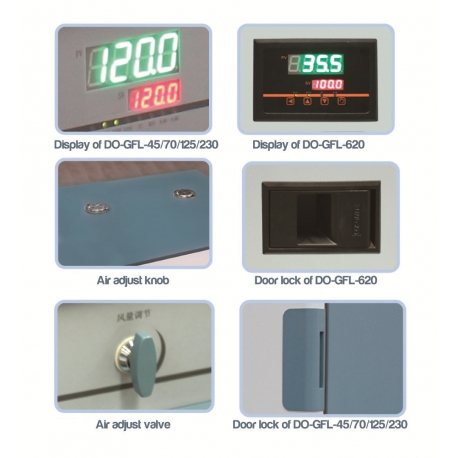

7, High-clear digital display;
8, Touch elastic adjustable invisible door lock;
9, PID microcomputer control system, reservation power on/off;
10, Timer, parameter memory, sound and light alarm over-temperature and etc.

Main Parameters:


Model

DO-GFL-45

DO-GFL-70

DO-GFL-125

DO-GFL-230

DO-GFL-620

Power supply

220V/50HZ

Temp. range (℃)

RT+5-300

Temp. resolution (℃)

0.1

Temp. fluctuation (℃)

±1

Heating power(KW)

1

1.55

2

3

4

Chamber size (mm)

350*300*400

420*350*460

500*400*630

600*500*750

800*500*1555

Dimensions (mm)

480*525*695

550*575*755

630*625*925

730*750*1100

965*750*1870

Packing size (mm)

595*600*810

665*650*870

745*700*1040

855*860*1230

1080*820*2050

Shelf/load

2pcs, 15kg/pc

Timer

1-9999 min

Ambient temperature

5 ~ 40℃

NW/GW (kg)

36/42

47/54

60/68

87/118

210/254

Note:

  1. DO-GFL-230/620 has damper adjust knob, DO-GFL-45/70/125 is Wind cap regulation

Optional:


Items

Function

LCD display



Independent temperature limit controller

Temperature controlling& alarm when main controller fault.

RS485 interface

To be connected with computer

Bench-top printer



Multi stage programmed temperature control
