Electric heating sleeve

> >>>>Electric Heating Sleeve Series

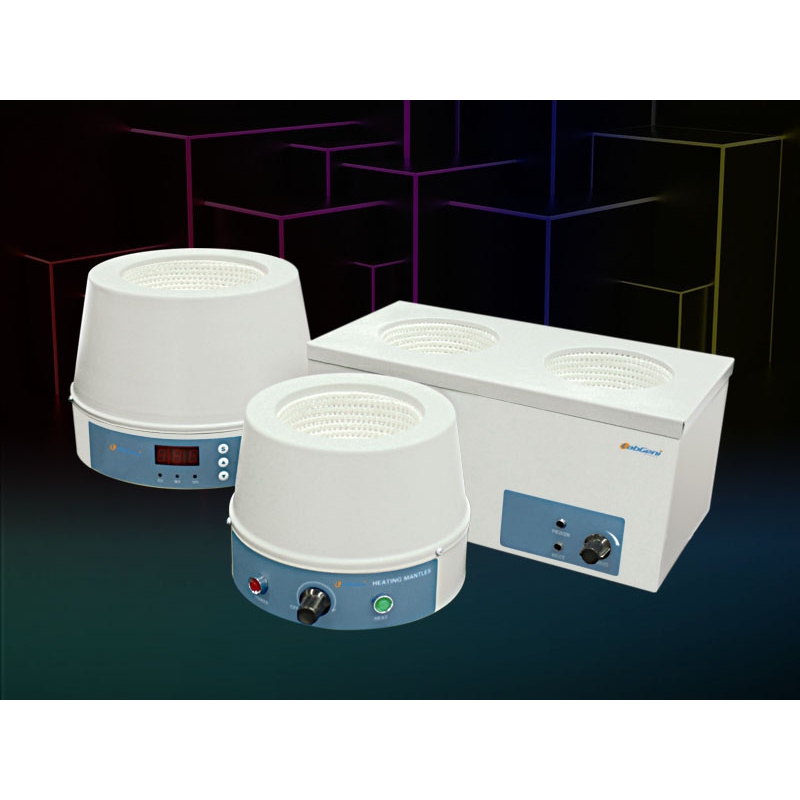

Electric Heating Sleeve Series

HM series

The product is suitable for medium and large institutions, petroleum, chemical, pharmaceutical, environmental protection and other industries laboratory liquid heating.

More details

More info

Ⅰ.Application:
The product is suitable for medium and large institutions, petroleum, chemical, pharmaceutical, environmental protection and other industries laboratory liquid heating.

Ⅱ.Product characteristics:
1, high-quality materials shell, electrostatic spraying process;
2, With Electronic temperature control and Digital temperature control two kinds of ways;
3, Big heating area, fast heating, no flame;
4, with adjustable tube rack

Main Technical Parameter
Single parameter


Model

Specification

Heating power(W)

Surface maximum temperature（℃）

dimension（cm）

Package dimension（cm）

Net weight（kg）

Gross weight（kg）

HM-1
（A）

100ml

100

380
（300）

Φ20×16


23×23×17


2


2.5

250ml

150

500ml

250

1000ml

350

Φ26×20

29×29×22

3.5

4

2000ml

450

Φ30×23

33×33×25

4

5

3000ml

600

Φ30×25

33×33×27

6

7

5000ml

800

Φ35×27

38×38×29

7

8

10000ml

1200

Φ42×32

45×45×34

10

12

20000ml

2400

45×45×38

50×50×40

21

26

Note: HM-1 means single electronic temperature control type electric heating sleeve; HM-1A means digital temperature control electric heating sleeve

Two coupling parameters:


Model

Specification

Heating power(W)

Surface maximum temperature（℃）

dimension（cm）

Package dimension（cm）

Net weight（kg）

Gross weight（kg）

HM-2

100ml

100×2


380

28×14×16

32×18×19

3

3.5

250ml

150×2

32×16×17

36×19×20

4

4.5

500ml

250×2

36×18×18

40×22×21

5

5.5

1000ml

350×2

42×21×20

46×25×23

8

9

Four coupling parameters：


Model

Specification

Heating power(W)

Surface maximum temperature（℃）

dimension（cm）

Package dimension（cm）

Net weight（kg）

Gross weight（kg）


HM-4

100ml

100×4


380

53×14×16

57×18×19

6

7

250ml

150×4

61×16×17

65×19×20

8

9

500ml

250×4

69×18×18

73×22×21

10

11

1000ml

350×4

81×21×20

85×25×23

15

17

Six coupling parameters：


Model

Specification

Heating power(W)

Surface maximum temperature（℃）

dimension（cm）

Package dimension（cm）

Net weight（kg）

Gross weight（kg）


HM-6

100ml

100×6


380

82×14×16

86×18×19

9

10

250ml

150×6

94×16×17

98×19×20

12

13

500ml

250×6

106×18×18

110×22×21

15

16

1000ml

350×6

124×21×20

128×25×23

22

24

Note:
1, performance parameters test in the no-load condition: ambient temperature20℃, environmental humidity 50%RH
2, working ambient temperature: 5-40℃
