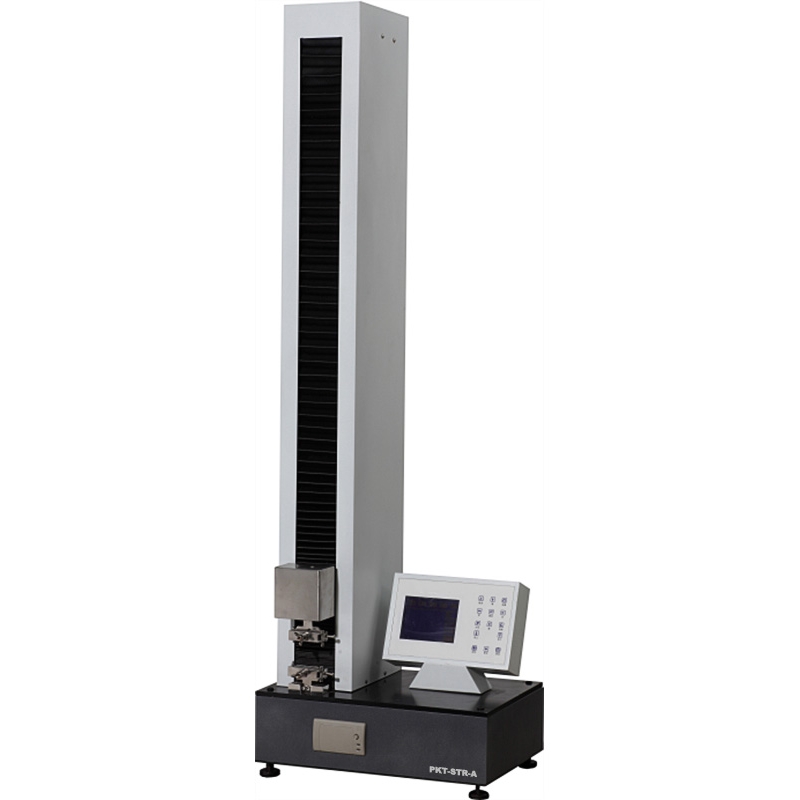

Intelligent Electronic Tensile Tester

Product Description:
This machine adopts mechanical-electrical integration design, specifically for packaging detection industry to optimize design , apply to the stretch, peel, tear, heat sealing, puncture and other physical performance test in plastic film, composite materials, soft packaging materials, plastic hoses, adhesives, adhesive tape, stickers, medical patches, protective film , release paper, the combination of the cover, metal foil, diaphragm, back material, non-woven, rubber, paper fiber and other products; it is the ideal test equipment for enterprise, test agencies, research institutions and universities and other units.


Features
1. Microcomputer control, large liquid crystal display data, results, and the curve;
2. Menu-driven interface, easy operation;
3. Stretch, peel, tear, heat sealing, puncture, suspension, seals and other test projects;
4. Full digital operation, with digital zero and correction function;
5. Precision mechanical transmission, continuously variable;
6. Automatic positioning and displacement measurement;
7. High measurement accuracy, and can be used in peel test below 0.1N
8. Preset test parameters according to national standards, or set up parameters in accordance with corporate standards , one set could be used for long time;
9. Sample test in group, automatic data statistics and printing
10. Variety of security protected model to ensure safe and reliable test

Standard Compliant:
ASTM E4、ASTM D828、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、ISO 37、JIS P8113、QB/T 2358、QB/T 1130、YBB00112003, GB 13022、GB 8808、GB 1040、GB 4850、GB 7753、GB 7754、GB 453、GB/T 17200、GB/T 16578、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590

Technical Specifications:

Technical Index
