ELISA

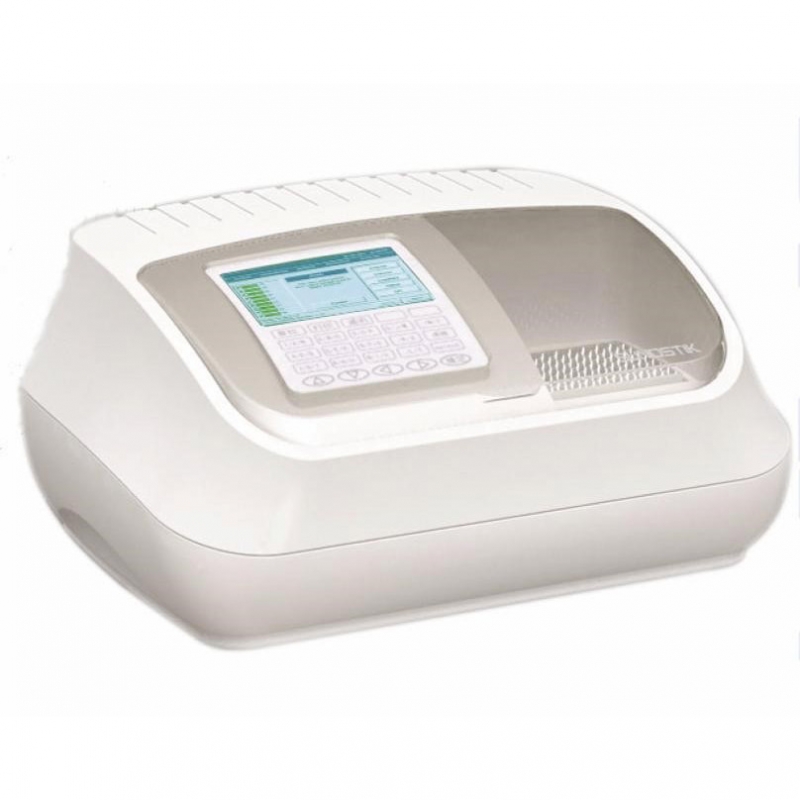

Automatic Microplate reader/ Elisa Reader

CLR-960

More info

Advanced optical path system

  1. Reliable optical system ensures accurate measurement results and good repeatability
  2. Multi-channel fiber optic measurement system, accurate and fast, 96-well detection of 5 holes
  3. Introducing international high-quality optical components (halogen lamps, filters, optical fibers, photovoltaic cells, etc.) through a global procurement model to make instruments more precise and perform better

Rich software features

  1. Full Chinese LCD display, the program is based on question and answer, user-friendly design makes operation more convenient and easy, easy to master
  2. It can be completely controlled by computer to realize the enzyme free workstation;
  3. The instrument is automatically checked and calibrated at startup, which ensures that the instrument is in normal state every time.
  4. Built-in oscillation function, you can edit the oscillation form as needed, and make the termination liquid fully mix to ensure the reliability of the result.
  5. Multiple methodological measurements for qualitative and quantitative testing
  6. With critical value analysis, calibration analysis, quality control and other functions
  7. Large storage capacity for 28 test programs
  8. Professional, fully-fledged software package for free programming and data transfer
  9. Free computer operating software, ready to connect with the computer at any time

Technical Parameters:


Model

 CLR-960

Slat type

 standard 96/48 hole or other types of microplates, strips

Test speed

 96 holes / 5 seconds

Light source

 cold light source

Wavelength range

 340-750nm

Filters

 405nm, 450nm, 492nm, 630nm, with four vacancies

Repeatability

 ≤±1%

Resolution

 0.001Abs

Linearity

 ±1% (0.000-2.000Abs)

Measuring range

 0-4.0000Abs

Measurement method

 single wavelength, dual wavelength, multiple wavelength

Blank mode

 single hole blank, single row blank, single column blank

Calculation methods

 absorbance, threshold, linear regression, logarithmic curve, quadratic polynomial, cubic polynomial, four-parameter logarithm

Vibration plate function

 adjustable speed and time

Mode of operation

 membrane button

Display

 LCD Chinese LCD

External interface

 RS232 serial interface, parallel interface

Power supply

 AC220V/110v±22V, 50Hz/60Hz±1Hz

Net weight

 7kg

Volume

 440 (L) mm × 305 (W) mm × 154 (H) mm
