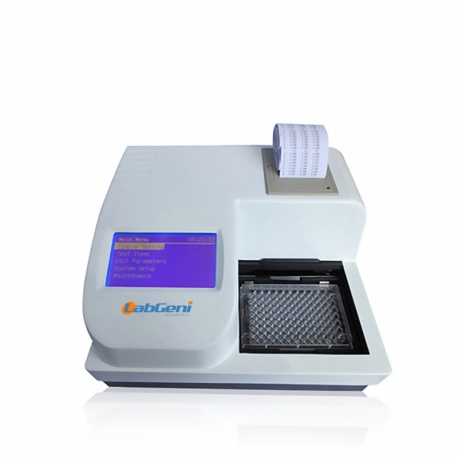

Elisa Microplate Reader

240×128 LCD (Touch screen)

Computer Interface

RS232      9 needle

Applicable Plates

96 wells, “Flat” ,“ U ”,“ V ”bottom

Shake

3 speeds( Low, Mid, High)                              Programmable time period: 0 - 999 seconds

Data Storage

200 programs, 1000 plates result

Light Source

Tungsten Halogen lamp, lamp saver function, 12V,20W

Spectral Range

400-750nm

Optical Sensor

8 photodiode

Filter Capacity

8 filters

Standard Filters

405,450,492,630nm standard filter

Optional Filters

4 free positions for optional filters

Reading Speed

single wavelength<5sec, Duble wavelength<10sec

Indication Range

0.000 - 3.500 Abs

Resolution

0.001 Abs

Accuracy

ΔA≤±0.01(0≤A<1.0)

≤2.5%(A≥1.0)

Linearity

≥0.999

Reproducibility

≤0.2% (0≤A≤1.5Abs)

≤1.0% (A>1.5Abs)

8-channel Variation

≤0.02

Stability

±0.003 Abs

Sensitivity

≥0.01 Abs

Internal Printer

57mm thermal printer

Power Supply

AC 100-240V, 50Hz/60Hz

Power Input

90VA

Net Weight

6.5Kg

Gross Weight

8.7Kg

Dimensions(Instrument)

32(W)×29(D)×17(H) cm

Outer Box

45(W)×41(D)×29(H) cm

Operating Temperature

10°C—30°C

≤ 85% relative humidity without condensation

Storage Temperature

0°C—55°C

≤ 95% relative humidity without condensation

Operation Language

English or Chinese

PC Software

optional accessories
