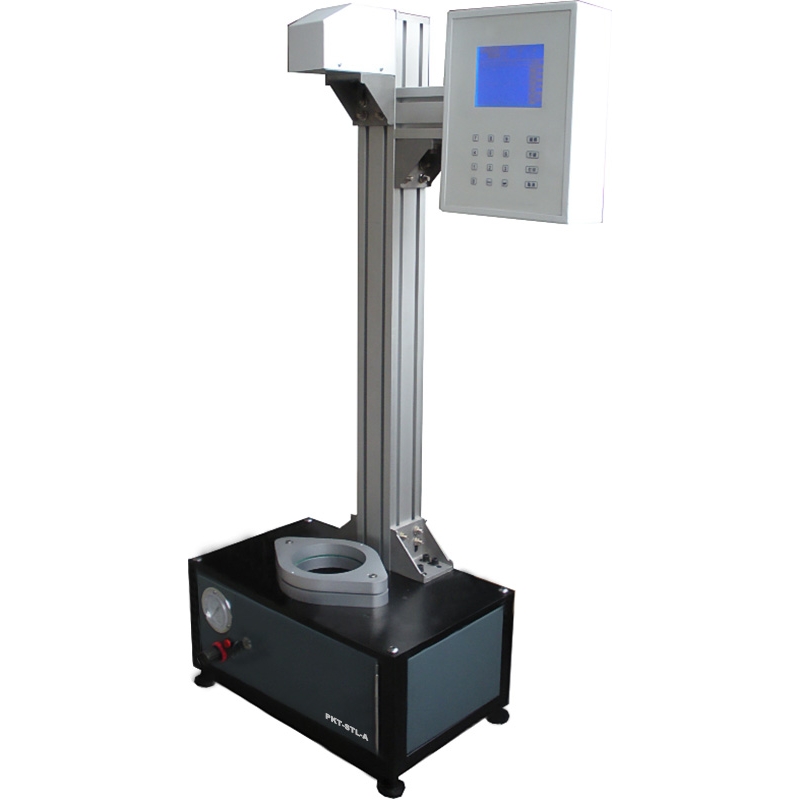

Falling Dart Impact Tester

PKT-STL-A/D

The machine is suitable for plastic film or sheet under the impact of free dart impact at the given height, measure the impact mass and energy when 50% plastic film or sheet specimen is damaged.

More details

More info

Product Description:
The machine is suitable for plastic film or sheet under the impact of free dart impact at the given height, measure the impact mass and energy when 50% plastic film or sheet specimen is damaged.

Features:
1. In line with national and international standards;
2. Revise error in national standards and international standards;
3. Innovative design ,easy to operate;
4. Test Method A, B double mode design;
5. Unique lighting observation light, convenient to test;
6. Test data processed by microcomputers;
7. Intelligent testing process, high efficiency;
8. Sample pneumatic lock, release, reduce the experimental error and the test time;
9. Without manual drawing mark in the test, data parameters system display by LCD;
10. Test data systems automatically identify, calculate, without human intervention;
11. Test automatically ends; results display in various units, output by micro printer;

Technical Specifications:


Model

PKT-STL-A

Measuring Range

Method A: 50～2000g (Method B: 300～2000g, optional)

Measuring Accuracy

0.1g (0.1J)

Measuring Method

Method A ,B (optional)

Test Condition

23 ℃ 50% RH (standard)

Sample Size

> 150mm × 150mm

Power

AC 220V ± 10% 50Hz

Main machine
dimension

Method A: 500 (L) mm × 450 (B) mm × 1320 (H) mm
Method B: 500 (L) mm × 450 (B) mm × 2160 (H) mm

Net weight

70kg

Sample Clamping

Pneumatic

project
Test Mode

Model

PKT-STL-A

PKT-STL-D

Measuring range

A method

A method、B method

measurement accuracy

50～2000g

Clamping means

0.1g

Sample size

pneumatic

Host size

＞150mm×150mm

L × B × H

670mm×400mm×1300mm

670mm×400mm×2100mm

net weight

70Kg

80Kg

Standard configuration

A method balance weight 1 set

A &B method balance weight 1 set each

User-supplied





Standard Compliant:
ASTM D1709、JIS K7124, GB 9639

Standard configuration:
1. Test host, a set of weights in method A;
2. The optional accessories, a set of weights in method B;
Note: The air source is equipped by user.
