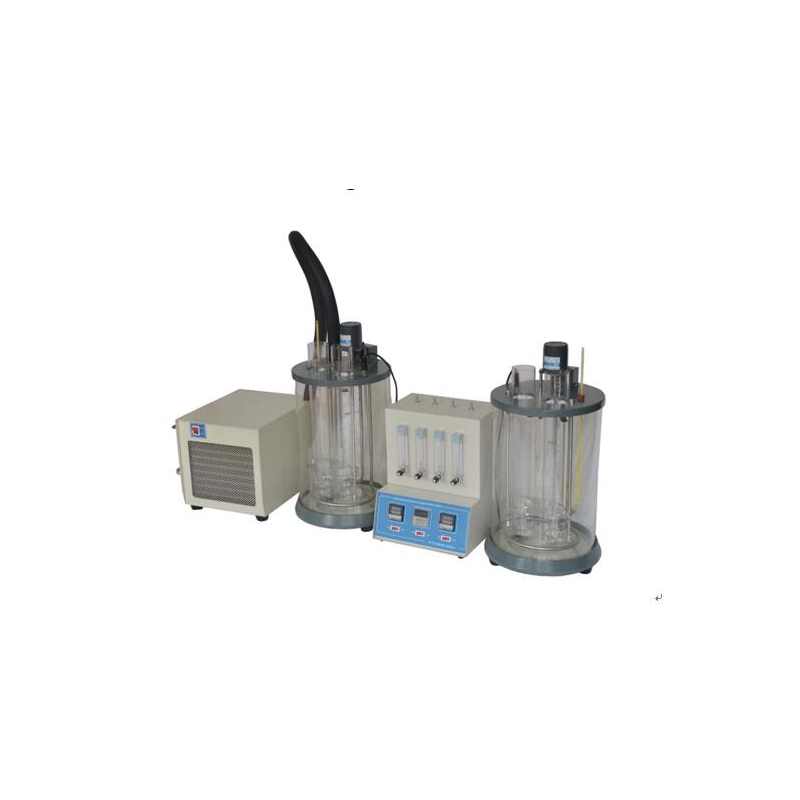

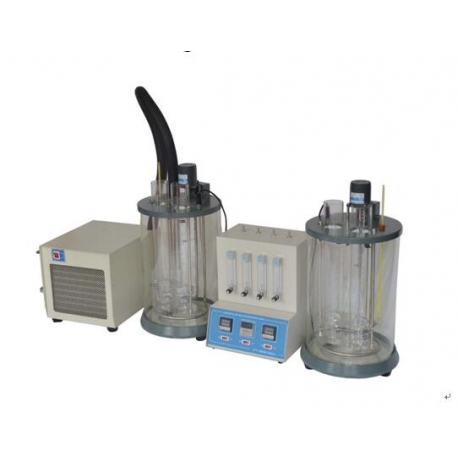

Lubricating oil foam characteristic tester, with cooling immersion chiller

Applicable standard: GB/T 12579, ASTM D892

Features:

1 This instrument is suitable for determining the foam properties (foam tendency, foam stability) of lubricating oil.

2Adopt advanced PID self-tuning digital display temperature control system with accuracy up to ±0.1 °C.

3 The whole machine is divided into two groups of baths at 24 °C and 93.5 °C, and the temperature and flow rate are controlled separately.

4 equipped with oil-free air pump, air filter and gas diffusion head.

5 with input-type refrigerator, the main components are imported from abroad.

6 German-made compressors, American refrigerants, Canadian fan condensers, etc., to facilitate the constant temperature of the 24 ° C bath.

Specifications:

1 power supply: AC220V±10% 50H

2 heating power: 93.5 ° C: 2 KW, 24 ° C: 1KW

3 temperature control range: room temperature ~ 100 ° C

4 temperature control accuracy: ± 0.1a ° C

5 air flow: 94 ± 5ml / min

6 cooling power: 380W

7 Dimensions: 950 × 330 × 650 (mm)

Spare parts:

1 thermometer 0 ~ 50 °C: 1pc

2 thermometer 50 ~ 100 °C: 1pc

3 thermometer rubber plug: 2pcs

41000ml measuring cylinder: 4pcs

5 measuring cylinder rubber plug, dust cover: 4 each

6 diffusion head, ventilation rod: 2 each

7 filters, air pump: 1 each

8 hoses: 5pcs

9 input refrigeration unit, dust cover: 1 set

10 power cord: 3pcs

11 Fuse: 2pcs

12 Instructions, certificate: 1 each
