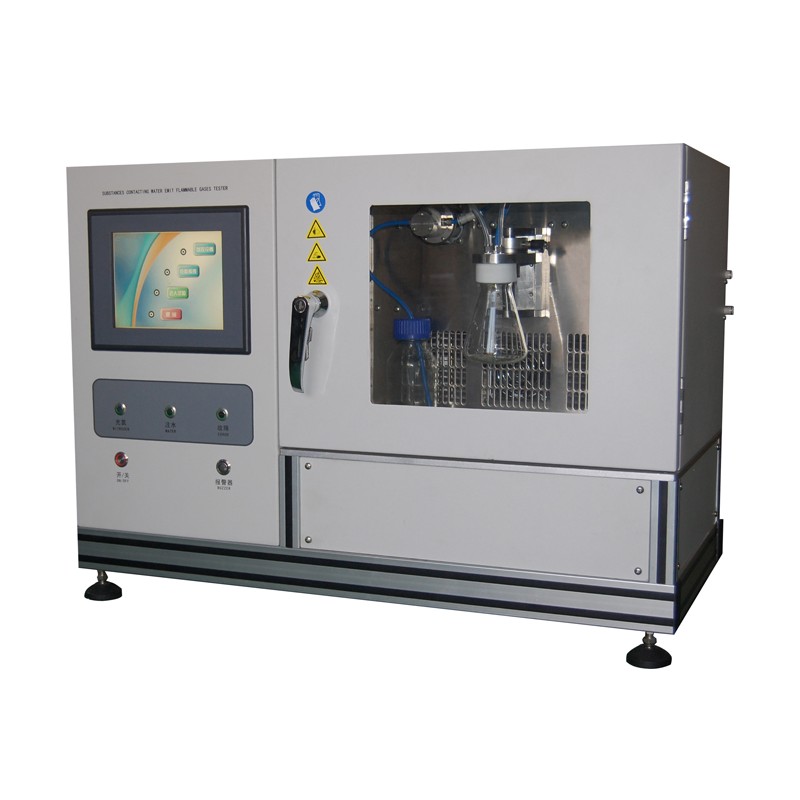

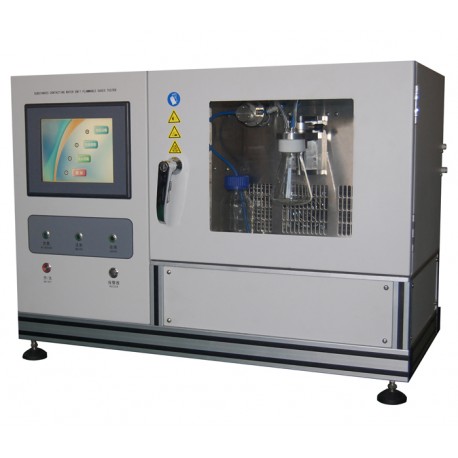

Substance Contact Water Flammable Gas Tester

Product description:
1) The tester is to determine whether the substance would emit flammable gases in contact with water in different various condition, in order to determine the packing type.
2) comply with the United Nations "on the Transport of Dangerous Goods Recommendations on Tests and Criteria Manual" 33.4.1.4 Test N.5: Test methods for substances of emit flammable gases in contact with water, GB / T21619-2008 "dangerous flammable solid emit flammable gases in contact with water test method "and GB30000.13-2013 classification and labeling of chemicals - Part 13: emit flammable gases and mixtures in contact with water.

Product Features
1) Embedded processor, Windows CE operating system;
2) 8-inch LCD touch screen to ensure display test status in real time;
3) can be realized the water entering, staying, dripping and emit flammable gas in water contacting test;
4) Nitrogen automatic cleaning function, fast cleaning pipes and containers;
5) automatic pumping & injecting water, enabling multiple injection;
6) equipped with refrigeration & heating system, can maintain 20 ℃ constant temperature testing area;
7) equipped with full seal gas pipeline, with good acid corrosion capacity to ensure the accuracy of test data;
8) Gas micro negative pressure sensor, controllable gas collector and collection airbags work together to achieve automatic measurement of gas and collected;
9) uses a unique pressure balance method, with automatic timing and precision pressure monitoring system, accurate calculation of the release rate, which is fast and efficient;
10) can automatically draw the gas release rate graph and display the time and gas volume changes, original test data can be stored in background;
11) can be realized in terms of the volume of gas in the current room temperature, atmospheric pressure and normal state;
12) fully automated testing process, without human intervention, support parameter setting, data storage, report search function;
13) Equipped with temperature and humidity module, real-time monitoring of the test environment temperature and atmospheric pressure.

Product parameters
1) Operating environment: 5 ℃ ~ 30 ℃, <85% RH
2) gas collection capacity: 0-0.8L
3) gas collection Accuracy: ± 2.5mL
4) gas collecting resolution: 0.1mL
5) Temperature range: 15 ℃ ~ 25 ℃
6) Temperature accuracy: ± 0.5 ℃
7) Timing range: 0-168h
8) Timing display resolution: 1 min
9) Sampling interval: 1s
10) Gas release rate detection range: 0 ~ 3000mL / min
11) Detection response time: 10ms
12) ambient temperature range: -10 ℃ ~ + 60 ℃
13) Ambient Temperature accuracy: ± 0.5 ℃
14) ambient atmospheric pressure range: 60 ~ 110kPa
15) ambient atmospheric pressure accuracy: ± 0.5kPa
