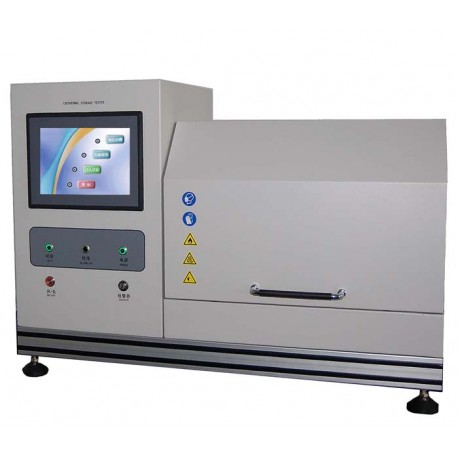

Self Accelerating Decomposition Temperature Tester (Isothermal storage test)

Product description
CIT30-10S Self Accelerating Decomposition Temperature Tester (Isothermal) is used to determine the heat generation rate of decomposition or reaction substance under constant temperature. The measured fever parameters together with the heat loss data of package to determine substance in the container SADT. In line with the UN "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 28.4.3 Test H.3: Isothermal storage test

Product Features
1) Embedded processor, Windows CE operating system;
2) 8-inch LCD touch screen ensure display the test status in real time;
3) Built soaking aluminum block, to ensure that the furnace temperature uniformity and stability and improve heat detection sensitivity;
4) Digital PID algorithm to precisely control the heating temperature, high precision temperature control;
5) Has a cooling system, rapid cooling test furnace, easy to operate;
6) Auxiliary safety device overheating protection, automatically cut off the heating system at a predetermined temperature;
7) Sound and light automatic fault detection and alarm functions, ensure secure test;
8) Real-time display running time, temperature and heat flow, automatic drawing test curve, raw data can be searchable;
9) Diversification test selection, the user can configure the test parameters according to the sample properties;
10) testing process fully automated, without human intervention, support parameter setting, data storage, viewing reports.

Product parameters
1) Operating environment: 5 ℃ ~ 30 ℃, <85% RH
2) Temperature range: -20 ℃ ~ 200 ℃;
3) Temperature stability: ± 0.2 ℃;
4) Temperature measuring range: -30 ℃ ~ 250 ℃;
5) Temperature display resolution: 0.1 ℃;
6) Temperature measurement accuracy: ± 0.5 ℃;
7) Heat flow meter sensitivity: 50μV / mw;
8) Sample container volume: 70ml
