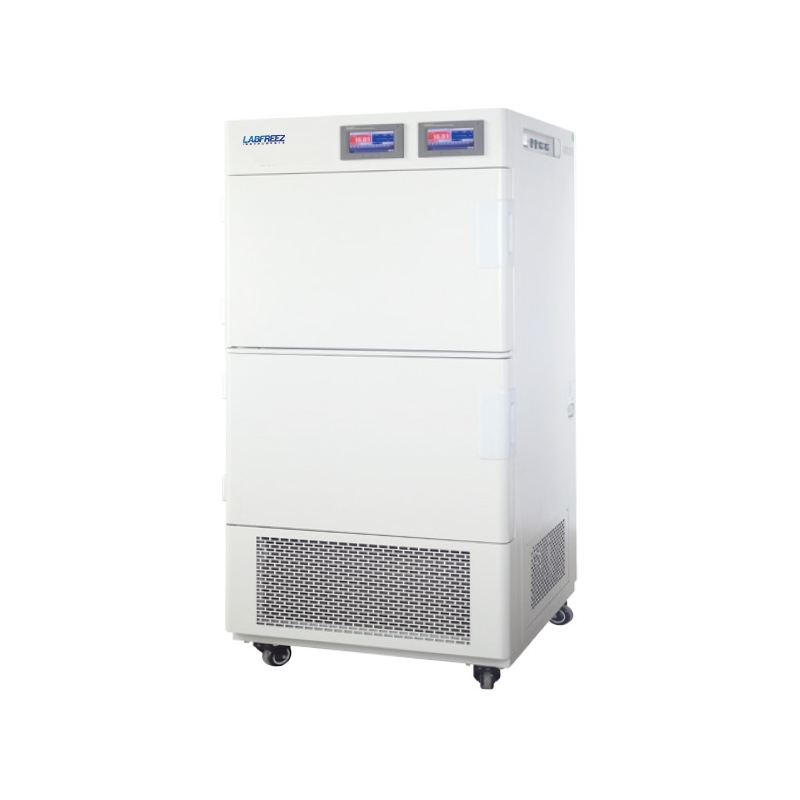

Medicine Stability Testing Chamber, Dual-chamber

MSC-TH/THL series

More info

To create an evaluation of drug failure need long stable temperature, humidity and light environment for pharmaceutical companies for medicines and accelerated testing of new drugs, long-term test, humidity test and glare testing, pharmaceutical companies drug stability test performed best option, it is necessary equipment of pharmaceutical factory to achieve GMP certification.

Features:

  1. New CFC-FREE design
  2. Special sterilization stainless steel, semi-circular arc corners design, easy to clean & operate.
  3. Microcomputer servo controller, digital temperature and humidity display (MSC-TH/THL series).
  4. LCD touch screen controller, all functions displayed on the screen in the form of graphics and text, graphs can observe the machine running (MSC-TH/THL series).
  5. Continuous operation: two imported closed compressor automatically switches to ensure continuous operation of the device.
  6. Continuous operation without frost
  7. Adopt imported humidity sensor, to avoid the frequent replacement of annoyance.
  8. With stepless illumination adjustment function (THL series).
  9. Programmable touch screen controller

Safety features:

  1. Breeze circulation and heating will automatically stops when the door is open.
  2. Circulation fan speed can be controlled automatically.
  3. Independent limit temperature alarm system that can sound and light alarm operator.
  4. Temperature deviation alarm, compressor overheating, overload, over voltage protection and water protection.
  5. Wired alarm monitoring systems
  6. Compressor overheating protection, fans thermal protection, over-temperature protection, compressor overpressure protection, overload protection, water protection, wired surveillance alarm system

Specifications:


Model

MSC-TH200D

MSC-TH300D

MSC-THL200D

MSC-THL300D

MSC-THL425T

Temp. range

0~65°C

With illumination:10~50°C
Without illumination:0~65°C

With illumination:10~50°C
Without illumination:0~65°C

Temp. fluctuation

±0.4°C

±0.4°C

±0.4°C

Temp. uniformity

±2°C

±2°C

±2°C

Humidity range

40~95%RH

40~95%RH

40~95%RH

Humidity accuracy

±3%RH

±3%RH

±3%RH

Illumination range/accuracy

-

0~6000LX adjustable
≤±500LX

0~6000LX adjustable
≤±500LX

Refrigeration

Imported

Imported

Imported

Controller

Programmable touch LCD

Programmable touch LCD

Programmable touch LCD

Sensor

Pt100

Pt100

Pt100

Capacity(L)

Upper

Down

Upper

Down

Upper

Down

Upper

Down

1

2

3

100L

100L

150L

150L

100L

100L

150L

150L

100L

100L

225L

Inner size(mm)
W×D×H

500×450×450

660×520×450

500×450×450

660×520×450

500×450×450

500×450×1000

Illumination

-

-

-

-

-

-

-

-

Shelf

2

2

2

2

2

2

2

2

2

2

4
