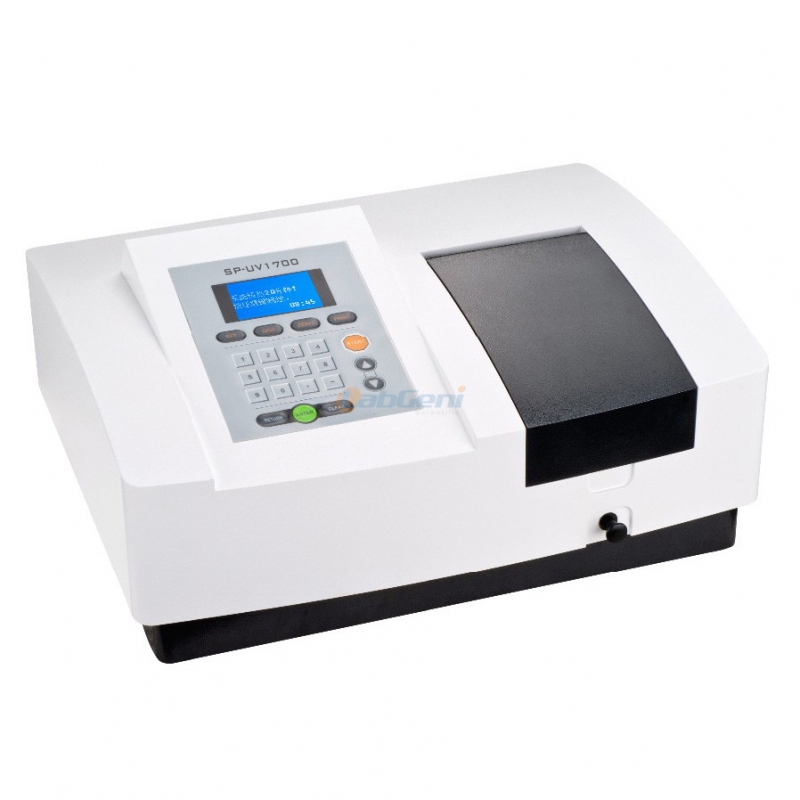

UV Spectrophotometer

Model: SP-UV1700 series

Features:

Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance.
The optional PC software expands the capabilities of the instrument includes Photometric analysis, Quantitative analysis, Spectral scanning, Kinetics, DNA/protein analysis, Multi-wavelength test, etc.
Adopts 51 microcomputer system, and store 200 test data and 100 standard curves;
Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.
Large sample chamber can accommodate 5-100mm cuvettes of all kinds.
Auto 8-cell holder is optional.

Specifications:

Model	SP-UV1700	SP-UV1710	SP-UV1720	SP-V1700	SP-V1710
Optical System	Single Beam, Grating 1200 lines/mm
Wavelength Range	190~1100nm			330~1100nm	340~1050nm
Spectral Bandwidth	2 nm				4nm
Wavelength Accuracy	±0.3 nm	±0.5 nm	1nm	±0.5 nm	1nm
Wavelength Repeatability	<=0.1 nm	<=0.2 nm		<=0.1 nm	<=0.2 nm
Photometric Accuracy	0.3%T	0.5%T		0.3%T	0.5%T
Photometric Repeatability	0.2%T
Photometric Range	0 - 200%T, - 0.3 - 3A
Stray light	0.05%T	0.1%T	0.15%T	0.05%T	0.15%T
Stability	±0.0001A/h @500nm	±0.0002A/h @500nm		±0.0001A/h @500nm	±0.0002A/h @500nm
Baseline Flatness	±0.002 A
Noise	±0.001 A
Wavelength Setting	Auto
Light Source	Imported Deuterium & Tungsten lamp			Imported Tungsten lamp
Display	128*64 LCD
Detector	Imported Silicon Photodiode
Output	USB port & Parallel port ( Printer)
Power	AC 220V/50Hz; AC 110V/60Hz
Dimension	590460220mm
Net Weight	16kg
Shipping Size	700580340mm
Weight	20kg
