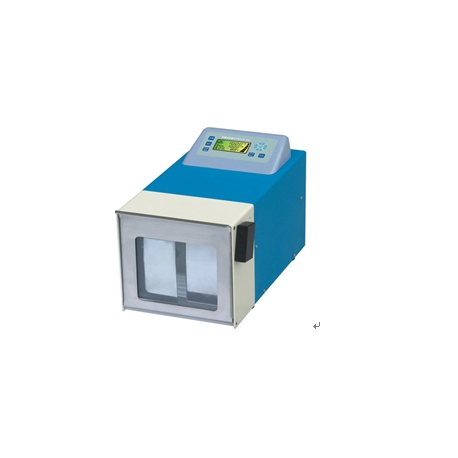

Aseptic Homogenizer (slap type)

SBH Series

Germfree Homogenizer, also known as flap homogenizer, is widely used in the homogenization treatment for animal tissue and biological samples, also used for the following testing areas: food, pharmaceutical, cosmetics, clinics molecule, toxin and bacteria, particularly suitable for preparation of micro-organism testing samples.

More details

More info

Description:
Germfree Homogenizer, also known as flap homogenizer, is widely used in the homogenization treatment for animal tissue and biological samples, also used for the following testing areas: food, pharmaceutical, cosmetics, clinics molecule, toxin and bacteria, particularly suitable for preparation of micro-organism testing samples.


The device is made of stainless steel and can effectively separate the surface of solid sample from a sample with germs inside. The samples are packed in germfree disposable homogenization bags, and no contact with any parts of the instrument. It has such feature as soft homogenization, no pollution, no damage, no temperature rise, no sterilizing treatment, no need to wash the utensils. so as to meet the requirements for being fast, accurate and repeatable.

This product is also suitable for homogenizing tumor tissues( such as liver, intestines cancer, stomach cancer,  breast cancer) not only can to obtain large numbers of single cells(2×105 within 2 minutes) but also crush tissues cells (such as liver cells)more gently. The time for homogenization could be prolonged when necessary, to achieve a soft broken.

Main technical parameters:


Model

SBH-04

SBH-09

SBH-11
SBH-11LCD

Power

300W

300W

500W

Supply

220V/50HZ

220V/50HZ

220V/50HZ

Timing

30, 180, 600 sec or-∝ (continuous working)

0.1 ~ 99min (step 0.1m)

0.1 ~ 99min (step 0.1m)

Rap Speed

6-9 times/sec

3-12 times/sec

3-12 times/sec

Capacity

3-400ml

3-400ml

3-400ml

Motor speed

500-1500r.p.m

500-1500r.p.m

500-1500r.p.m

Attenuation

1:6

1:6

1:6

Display

LCD

LED

LED
LCD

Setting

Keyboard setting

Keyboard setting

Keyboard setting

Cabinet material

SS304

SS304

SS304

Programmable

None

10 group

10 group

UV disinfection

None

None

Heating sterilization

Temp. control

None

None

RT~50°C

Aseptic bags

170×300mm

170×300mm

170×300mm

Net weight

22.5Kg

18.5Kg

18.5Kg

Dimensions

400×420×260mm

420*245*340mm

420*245*340mm

Packing size

495×465×360mm

495×465×400mm

495×465×400mm

protective device

Automatic stop pinch, slap the plate handling and adjustment windows, glass security door
