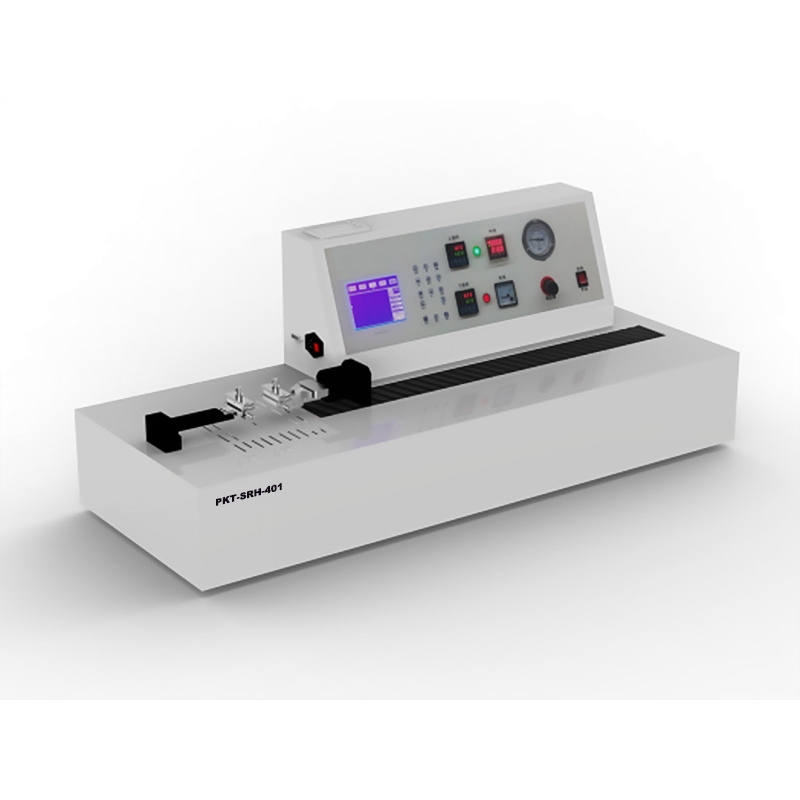

Hot Sticky Pull Tester

Product  Description:
Be fit for heat-adhesive, heat-seal performance test in packaging materials ,such as plastic film, composite membrane, and peeling and pulling off test in adhesives, adhesive tape, stickers, glue sticky composite materials, composite film, plastic film, paper and other soft materials.

Product  Principle:
Mix heat seal tester (heat adhesive) instrument and tensile machine together, can have the heat-sealed, heat-adhesive, tensile test separately, also can achieve integration and automation of heat seal (heat adhesive), tensile test.

Features:
1.  Test Type: Four functions and combination, heat adhesive, heat sealing, peeling, tensile;
2.  Digital continuously viable, fit for various testing needs;
3.  PID intelligent control, temperature control more accurate;
4.  Manual, timing automatically (digital adjustable) two tensile tests start-up mode;
5.  Anti-scald security design , ensure user safety
6.  With various functions, such as automatic clear, overload protection, travel limit, etc;
7.  Embedded computer control, large LCD graphic display, full digital operation;
8.  RS232 data transmission interface, can connect to computer software.

Standards Compliant:
ASTM F1921, ASTM F2029, QB / T2358, YBB 00122003

Technical Specifications:

System Configuration:
Standard configuration: host, pedal switch, hot sticking fixture, calibration support, high temperature welding cloth;
Optional: computers, professional software, communication cable, sampling cutter;
Custom-made parts: Sample positioning plate, hot sealing head, fixture.
