More info

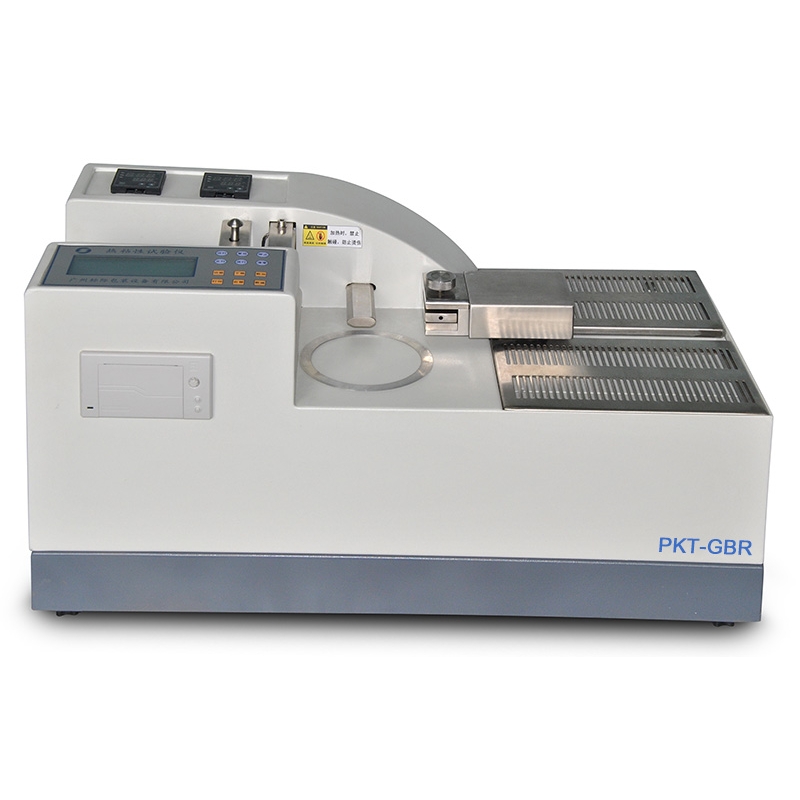

This instrument tests the hot tack strength of plastic film after heat sealed in different conditions of temperature, pressure and time.
Working Principle
Heat seal two layers of test sample, then pull and tear it off by a tear bar at the heat seal point; measure the force of tearing to evaluate the hot tack strength.
Standards
ASTM F1921, ASTM F2029, QB/T 2358, YBB 00122003
Product Features
- LCD display test data.
- Upper and lower heat seal bars can set different temperatures.
- Use compressed air, pneumatic drive.
- Built-in printer, can print report.
- Can customize size, shape and smoothness of heat seal bar.
Specifications
Temperature range | maximum 250℃ |
Temperature precision | ±0.2℃ |
Pressure range | 0.04~0.8Mpa |
Time range | 0.01s~99.99h |
Heat seal area | upper and lower bars 100×5.5mm |
Force range | 0~300N |
Gas source | compressed air, 0.4~0.8Mpa |
Gas port | Φ8mm gas pipe |
Instrument size | 63×30×34cm |
Configuration
Hot Tack Tester, power cable
User provide: compressed air
