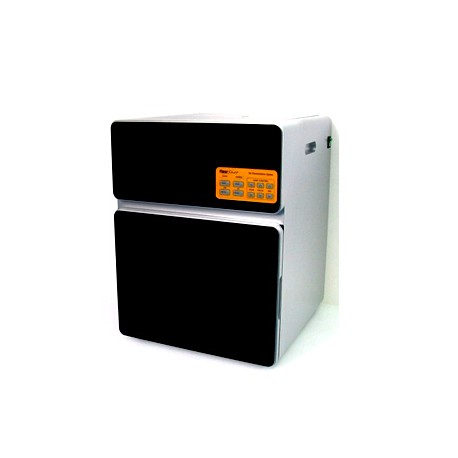

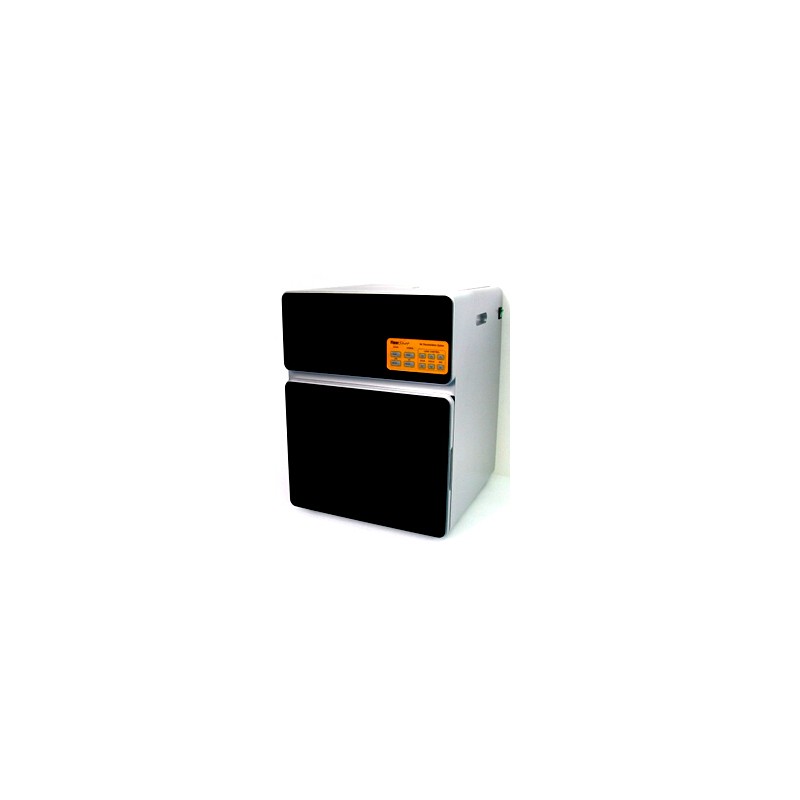

Gel Documentation System

Equipment introduction
With LabGeni Gel Documentation Systems you can handle various images of nucleic acid and protein electrophoresis. With a panel or computer you can make basic operations as image capture, edit, analysis and printing. GD805 has stable functions and high quality-price ratio.
The system has UV automatic protection function, UV lamp automatically switches off when handling samples or it can enter to the glue cutting state and work with special protecting glue cutting device for worker`s safety.
The top of the system can be easily open for changing filters and different fluorescent stains. For standard 590nm filter you can use EB and GelRed stains, if you want to use other, please, contact us for changing hardware.

Main features

1. CE certification, export sales
2. The results are clean, price is cheap, quality-price ratio is high;
3. Detection sensitivity: 20pg of double-stranded DNA;
4. Large area of UV transmission station, the biggest sample can be 21x26cm;
5. Standard LED white light, operation life is long
6. Darkroom with mold production, enclosed camera, built-in acquisition system, dustproof;
7. With a panel or computer you can make full automatic control of zoom, focus, diaphragm, UV Trans and Reflect lamps.
8. UV lamp automatically switches off when you are handling samples.
9. It uses with the most safety UV glue cutting device, it can enter to the glue cutting state, and it`s easy to recover special proceed of nucleic acid.
10. Standard 590 screw-type filter with coating which is easy to change.
11. Optional Trans UV/white light, used for albumin glue and other Electrophoresis carrier which are opacity, but need a UV
12. System size: 30*44*32 cm （length*height*depth）
13. All software`s functions are stable, and you always can upgrade it for free.
