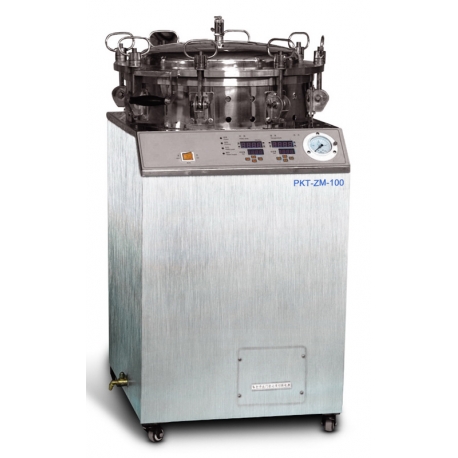

Inverted Pressure Sterilized Boiler

PKT-ZM-100 Inverted Pressure Sterilized Boiler is applicable for the packaging field, film plant, food , printing ink testing institution, scientific research institute, medical units to sterilize material and test the boiling property of high temperature resistance of the packaging materials. It carries the standard of GB 150-1998,GB/T 10004-1998

Features
1.Automatic rising temperature, automatic keeping temperature, automatic timing ；
2.Inverted Pressure Sterilized function；
3.Specially design for chamber，completely sterilized；
4.Use spray of water cooling and air cooling two ways, high efficiency   cooling, completely sterilization ,faster heating and cooling;
5.Five grades of safe measures, efficient and reliable.
Specifications
The diameter of sterilizing barrel: φ400mm,H500mm
The capacity of storage barrel:50L
Range of working pressure: 0~0.22Mpa (saturated vapor pressure)
Power consumption: 4.5kw±10%
Water compensation pressure: ≥0.32 Mpa
Sterilization temperature: 100~135℃
Inverted pressure: 0.14～0.165 Mpa
Dimension:: 560(L)mm×500(W)mm×1150(H)mm
Weight: 80kg
Operational power supply: AC220V /50Hz
