Karl Fischer

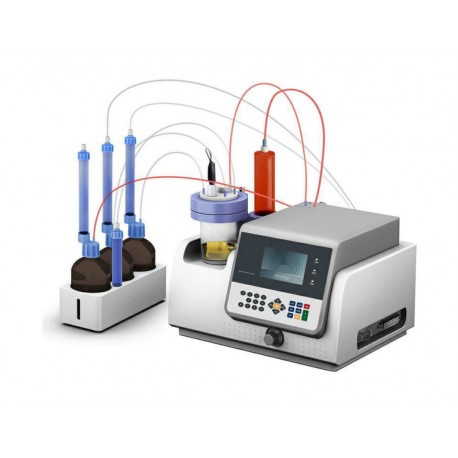

WT-KF-V100 Karl Fischer water content tester – volumetric type

WT-KF-V100

High precision & stable quality & friendly interface, high sealing performance, 0.001 to 100% widely measuring range

More details

More info

Application object:
Drugs: antibiotics, synthetic drugs and intermediates, pharmaceutical preparations
Organic Chemicals: hydrocarbons, alcohol, fat, aldehydes, organic acids
Inorganic Chemicals: salt, acids, bases
Petrochemical: crude oil, petrol, oil and lubricants
Fertilizer: urea, ammonium nitrate pesticides: Pesticides, Pesticide emulsifier
Dye: brighteners, dyes, dye intermediates
Food & Beverage: rice, flour, powdered milk, beer
Surfactant: washing powder, detergent, fabric
Softener Cosmetics: face cream, skin cream, hair cream, hand oils, toothpaste

Detectable material
Detectable substance categories include: gasoline, hydraulic oil, insulating oil, transformer oil, turbine oil, anti-oil. Ethane, dimethyl butane, octane, dodecane, eicosane, cyclododecane, expedited butadiene, benzene, toluene, xylene, ethyltoluene, xylene polystyrene, ten four-ene, petroleum ether, cyclohexylamine, cyclohexyl methyl amine, cycloheptyl, dioxane, ethylene cyclohexylamine, trimethyl styrene, benzene, methylene phenanthrene, iso-cymene and the like. Phenols as phenol, cresol, fluorophenol, chlorophenol, dichlorophenol, p-nitrophenol and the like. Ethers such as diethyl ether, diethylene glycol monomethyl ether, polyethylene glycol ether, anisole, iodo anisole, diheptyl ether; all alcohols, halogenated hydrocarbons of all, all the lipids.

Specifications

Determination moisture content range

 0.001 to 100%

Measurement resolution

 1ug (titration accuracy 0.001ml, 1mg/ml Karl Fischer reagent)

Measurement repeatability

 ≥99.7% (10mg water)

Maximum error

 1%

Delay Setting

 Delay Titration, can be customized

End delay

 can be customized

Measuring time

 3 minutes on average

Display

 LCD display

Data storage capacity

 1000 pcs(expandable);

Buret

 20ml precision measurement tube assembly, with UV guard;

With electrode open, short, real-time detection function



Valves and piping material

 three-way two-way solenoid valve drive control

External Electrode

 Two platinum sheet electrodes;

Data interfaces

 RS-232

Printer

External high speed needle mini-printers, efficient, print results can be long-term preservation (optional)

Ambient temperature

 + 5-40 ℃

Operating humidity

 ≤80%

Power

 220V / 50HZ
