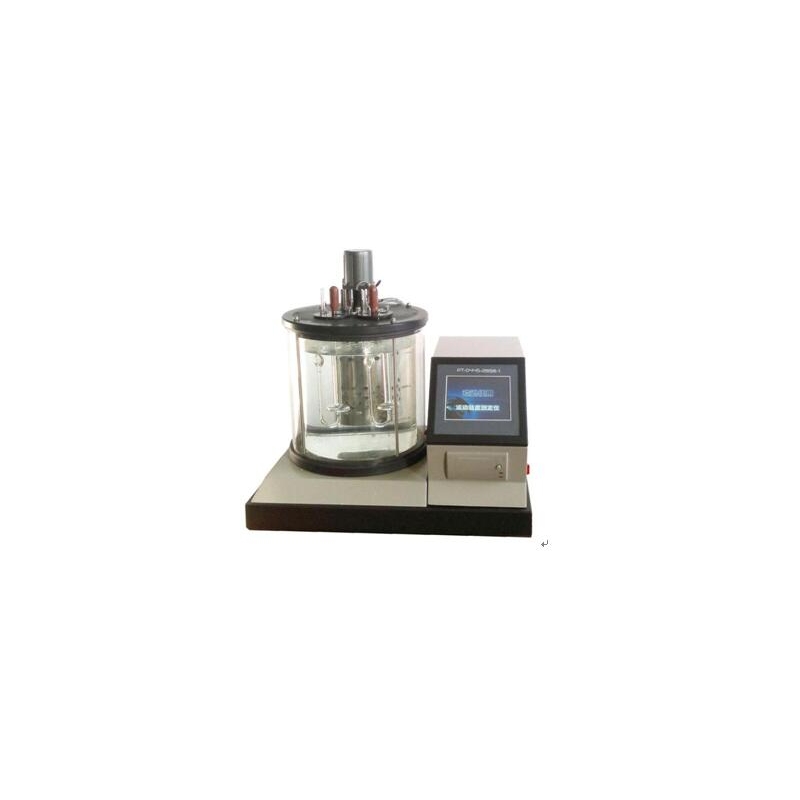

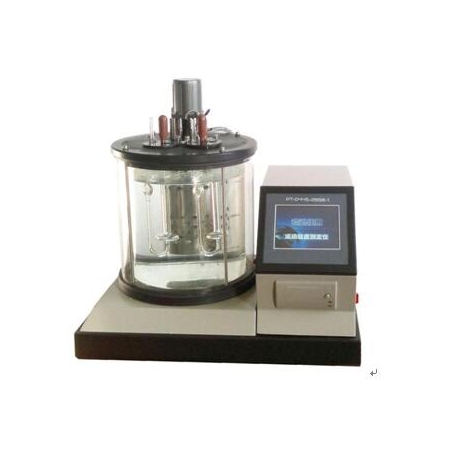

Kinematics Viscometer

Density, Kinematic Viscosity, Viscosity Index Tester, Viscometer, 4 samples, ASTM D445 petroleum Lubricating oils

PT-D445-1884B

More info

Summary
This instrument is designed and made as per national standard of People’s Republic of China GB/T 1884, GB/T 265 and GB/T 1995. It can determine the density(liquid petroleum products) as per GB/T 1884, the kinematic viscosity(Newtonian liquids) as per GB/T 265 and viscosity index(Lubricating oils) as per GB/T 1995.

Main technical features
1. Multifunctional instrument. It can determine the density of crude oil and liquid petroleum products, kinematic viscosity of liquid petroleum products and viscosity index of lubricating oils.
2. Microprocessor and colored LCD technology. English-English bilingual menu. Light-touch screen. Easy to operate.
3. Advanced digital control and display. Automatic kinematic viscosity determination. The density test uses standard GB/T 1884.
4. It can test 4 samples at a time. Two for kinematic viscosity test and another two for density test. Or 4 kinematic viscosity tests. The parameters such as temperature, time, coefficient of capillary viscometer tube and density value can be inputted in or displayed on the light-touch screen.
5. New-type temperature sensor. The temperature resolution is 0.01°C. Temperature control precision is ±0.05°C.
6. It can save 99 coefficients of capillary viscometer.

Main technical specifications
1. Capacity of bath:   Ф300mm×340mm
2. Temperature range:   Ambient to 100°C
3. Resolution:   0.01°C
4. Temperature precision:  ±0.05°C
5. Timing precision:  ±0.1s
6. Display:   5.6 inch colored LCD
7. Sample amount:    4 samples
8. Power supply:   AC(220±10%)V, 50Hz±1Hz
9. Maximum power consumption:    1500W
10. Working environment:   Ambient temp.: (15~35)°C, RH<85%
11. Dimension:     615mm×500mm×610mm
12. Net weight:    26.5kg

Standard Accessories


No.

Item

Unit

Qty

Remarks

1

Capillary clip (Pinkevitch)

Piece

1



2

Pinkevitch capillary viscometer: diameter of 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5mm

Piece

1

A total of 7

3

Density test tube (500mL)

Piece

1



4

Test tube holder

Piece

2

It has been installed in the instrument

5

SY-05 Density meter (10 pieces in a group)

Piece

2



6

Rod type mercury thermometer
(-20 ~ 102°C, scale division is 0.2°C)

Piece

2



7

Rod type mercury thermometer
(0 ~ 50 °C, 50 ~ 100 °C, scale division all 0.1°C)

Piece

2



8

Stopping ring for thermometer (1#)

Piece

2



9

Dust cover

Piece

2



10

Printer paper

Set

1



11

Fuse 10A (Ф5 × 20)

Piece

2



12

Power line (250V / 16A)
