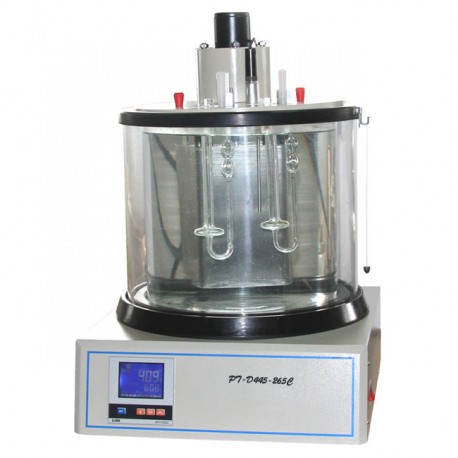

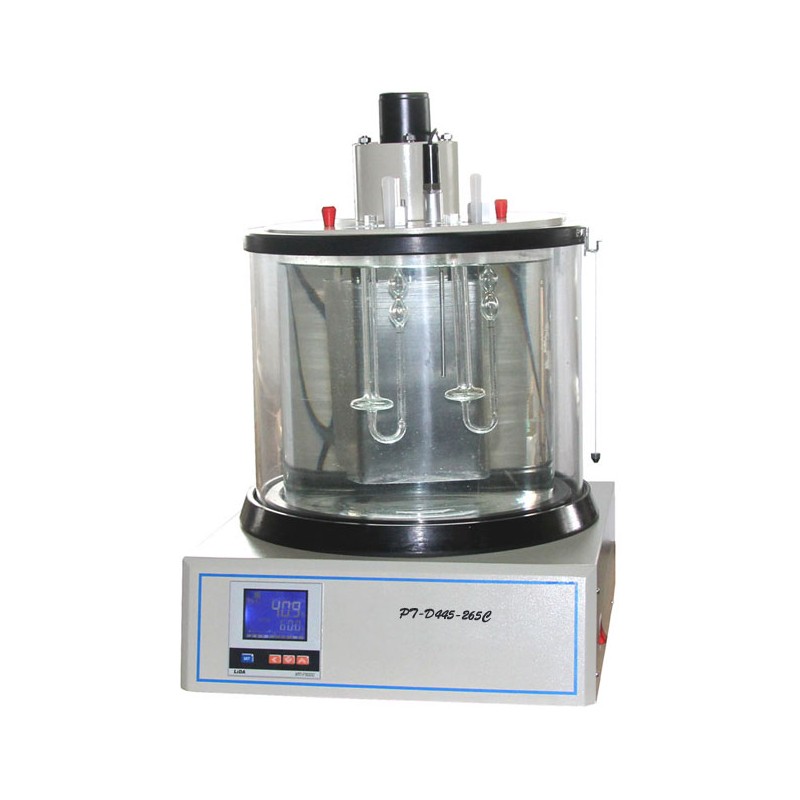

PT-D445-265C Petroleum Kinematic Viscosity Tester

Purpose:
PT-D445-265C Petroleum Products Kinematic Viscosity Tester is designed and made as per the National Standard GB/T265 “Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity”, ASTM D 445, and the Industry Standard SY/T 5651 “Technical Condition for Petroleum Products Kinematic Viscosity Tester”. It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquid) at a certain temperature.

Technical parameters

• Power supply: AC 220V±10%, 50Hz±5%;
• Heating power: two grades, 1000 W+650 W;
• Stirring motor: 6 W, 1200 RPM;
• Temperature range: ambient temperature ~ 100°C;
• Temperature controlling accuracy: ±0.1°C;
• Constant temperature bath: 20 L; two layers water bath;
• Operation environment:
• Ambient temperature: -10°C ~ +35°C;
• Relative humidity: <85%;
• Temperature sensor: Industrial Platinum Resistance; Pt100;
• Total power consumption: not more than 1800 W;
• Capillary Viscometer: 11 pieces in a group. Inner diameters of them are 0.4, 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5 and 4.0 mm respectively (inner diameters of 5.0 and 6.0 mm are optional);
• Dimensions (m): 0.61*0.56*0.76, 0.44*0.44*0.48
