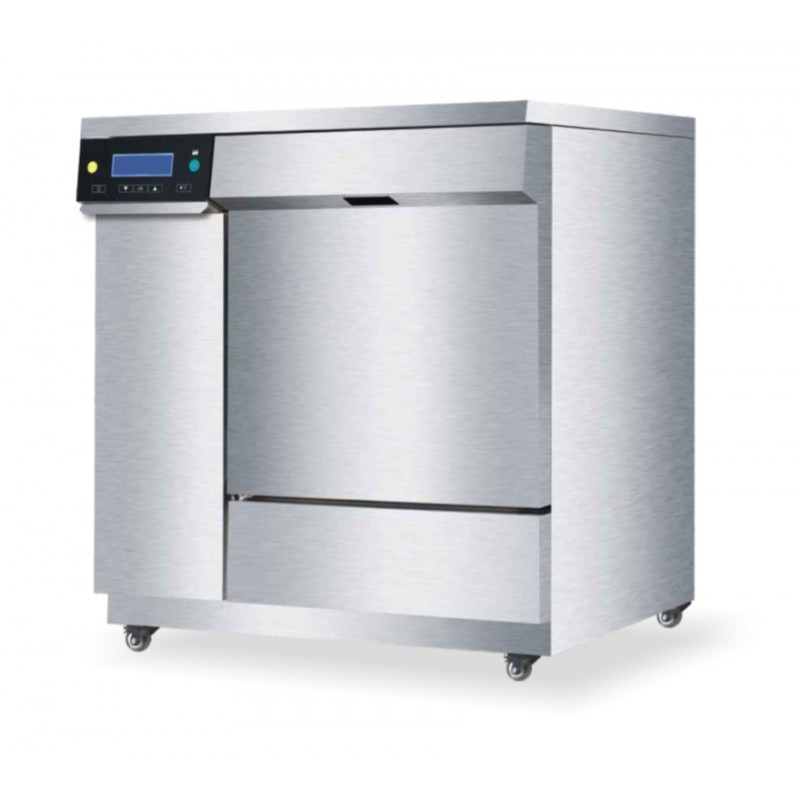

GWS-193 Glassware Washer, cleaning & sterilizing & drying machine

Application:
It can be subdivided according to the field of science or industry (organic, inorganic or physical chemistry, biology, microbiology, hospitals, pharmaceutical, food or cosmetic industry laboratories and etc.) It also can be an important factor in determining the type of machine and accessories as well as the cleaning process required.

Features:

• GWS-193 glassware/bottle washer used microprocessor which imported from U.S., it used optoelectronicisolation control panel which is color touch LCD display. It build in kinds of washing programs can be rapidly cleaning for Grease , biological , lubricants, totally 18 kind of standard programs and 79 pcs customized programs involved. Multi set of parameters include cleaning temperature, time, cleaner channelcan be set and saved. It can be cleaning in above 9 times to ensure high accuracy, it provided 3-stage password management.
• GWS-193 glassware/bottle washer used a circulation pump which rate can be 0~500L/min, it can be variable frequency soft start, spray pressure adjustable, spray arm with sensor to ensure pump work in normal and automatic shutdown when overheating.
• GWS-193 used a water supply device which located in the top-center of machine to supply water for basket & racks, water can be sprayed around from center of racks to ensure the pressure uniformity of each nozzle.
• With black box monitoring, the machine can record the working status of each electric component automatically,and also can be found out the failure easily.

Specifications:

• 316L stainless steel inner been passivated, SUS304 stainless steel external, high corrosion-proof capacity. Integrated design, with 4 pcs of caster with brake for easy movable.
• Power: 220V/50Hz
• Heating power: 4kw
• Power of pump: 900w
• Inner volume: 193L
• Efficiency volume: >175L
• Cleaning capacity: 460 pcs * 2ml sample bottle or 172 pcs pipettes.
• Cleaning pump: soft star and variable frequency control
• Pump rate: 0~500L/min
• Dynamitic water injection system: Built-in flow meter, water injection volume & injection process can be displayed in panel.
• Built-in purifier water booster pump, peristaltic pump can pump from 4 channels.
• Dual temperature monitoring system.
• RS232 interface can connect with printer and saving, exporting data. Data can be search, repeated.
• Working chamber size: 546mmLx 548mmW x646mmH
• Dimensions: :760mmLx 980mmW x1104mmH
• Weight: 210kg

Security system

• Safety electric lock, mechanical insurance device, machine will be locked during working to prevent misoperation.
• Over-temperature, over water level, multi-filter protection, low cleaning agent protection
• Meets with FDA, GMP IQ/OQ/PQ standard.

Drying system

• Pipeline injection drying systems
• Fan power: 0.3KW
• Hot air heating power: 3KW
• Temperature: room temperature ~ 120 ℃
• Time: 0-300min
• Dry air through injection baskets nozzle which can drying the inside and outside of the glassware completely
• Double spray steam condensate system, cooling water automatic discharge, no need for ventilation pipes, condensers using high quality stainless steel
• Has cooling function in end step to ensure user take out the glassware safety.
