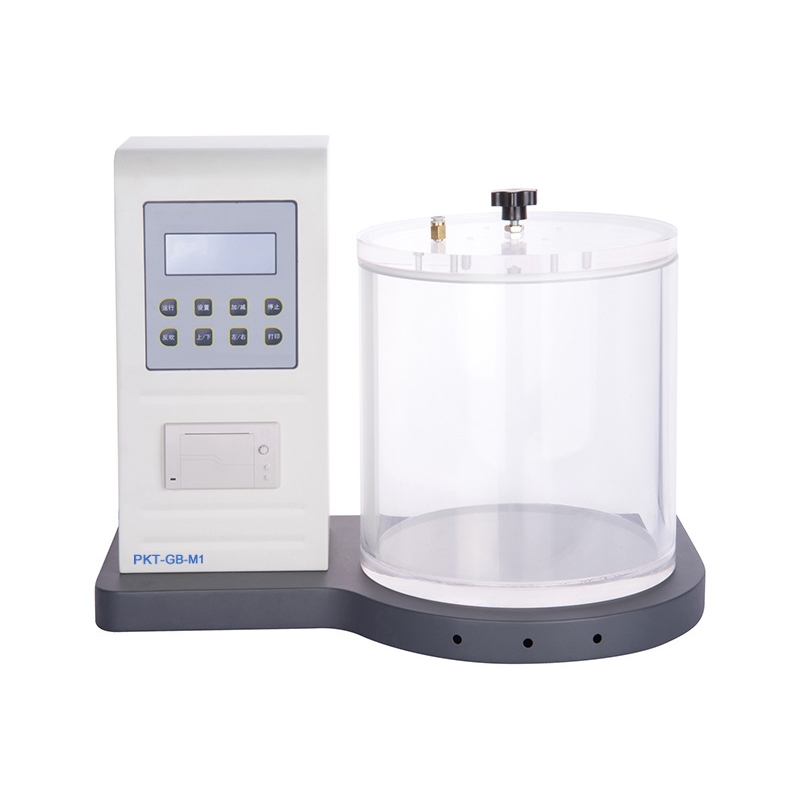

Electronic Leakage Tester

无标题文档

This instrument tests the hermetic sealing status of closed packaging bag or container.

Working Principle
Immerse closed sample filled with gas under water in test chamber, then create vacuum in the chamber; observe if there are bubbles emmision from inside the sample to check the hermetic sealing status.

Standards
GB/T 15171, ASTM D3078

Features

• Use compressed air, pneumatic drive.
• Wholly automatic, auto pump vacuum and keep for set time, auto stop and return.
• Can manually pause and stop.
• LCD display test data.
• Built-in printer, can print report.

Configuration
Leakage Tester, vacuum chamber, power cable, Φ6mm gas pipe
User provide: compressed air

Specifications
