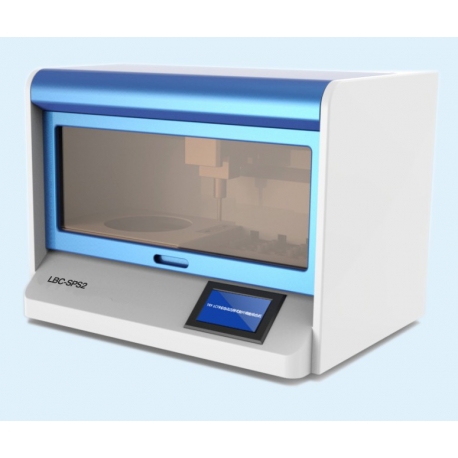

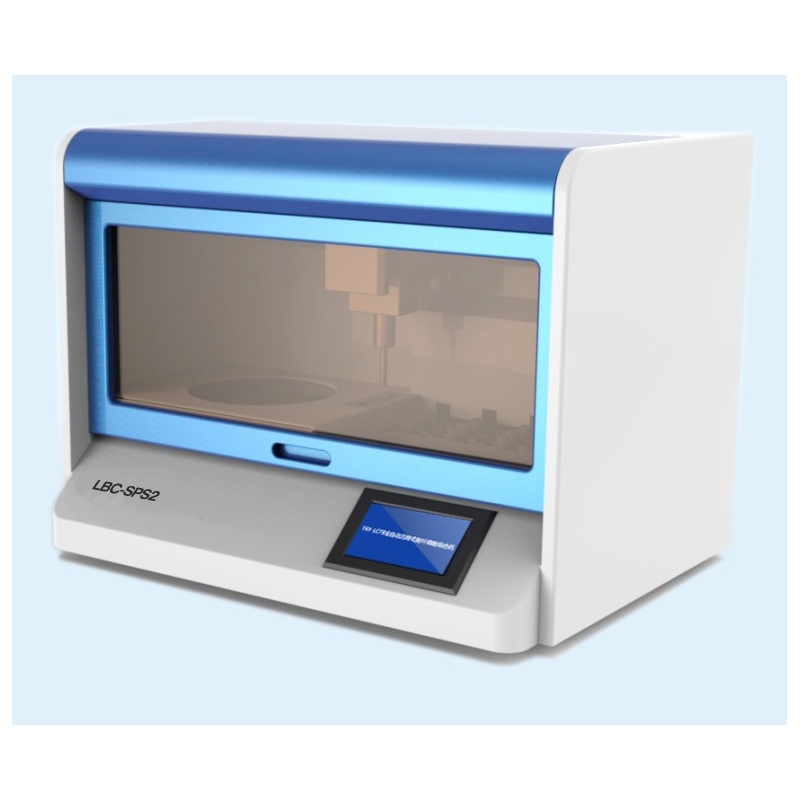

Cell Isolation producer dyeing all-in-one machine

Integrated specimen sampling, gradient separation, sedimentation producer, drop-on dyeing, it is the most convenient cell production technology on the market. After loading specimen bottle, the device automatically produce the monolayer dye lust sheet, the dyeing process without human intervention

Application:
For medical institutions, medical research cytology pathology department, including the cervix, sputum, effusions, urine, endoscopic brushings, needle cells precancerous lesions screening and diagnosis.

working principle
LBC-SPS series automatic decanter cell production dyeing machine is fully controlled by computer . Integrated most advanced liquid-based cell specimens sampling, gradient separation, sedimentation producer, drop-on dyeing ,one single machine produces the cell sheet. Gradient separation to remove the interference component of mucus specimens, inflammatory cells; gradient producer priority captures diseased cells and other useful ingredients according to diseased cells has big specific gravity and rapid Settlement rate after heterogeneity
drop in independent control staining dye automatic control of the amount of dye room dropping staining. LBC-SPS series made out of a sheet of cells: cells sufficient, tightly packed, a three-dimensional distribution of single, clear background, bright colors, clear diagnostic clues, greatly improving the sensitivity than other methods, but also a corresponding increase in specificity.

Features:
Patented technology: The new technology for separation, sampling, production, anti-clogging. ,it is eligible for one patent, eight utility model patents, with the original, counterfeit will be sued.
One stop Producer: centrifugation, specimen transfer, settlement producers, drip control staining coherent whole, so loaded specimen bottles, Automatic devices have been dyed a lecherous monolayer sheet, without manual intervention.
Color manipulation: Seven-inch color touch-screen operation, clear, easy atmosphere.
Quick and efficient: automatic batch processing a batch of 38 minutes 12 servings, uninterrupted cycle production.
Drop control staining: independent compartments drops dye, dye-time use, the difference between the non-batch consistency, and no cross-contamination.
Staining diverse: You can set Papanicolaou stain, HE staining, dyeing and other special staining patterns as needed.
Patent blockades: attempts to prevent the use of patented technology, the full realization of the pipeline, no dye staining solution needle clogging.
Adjustable size: 13mm diameter area of ​​the sheet diagnosis or 17mm, the size can be converted.
Remote operations: equipment failure, can be remotely shut down to protect the normal operation of equipment.
New recipe: one save set cell preservation reagents, mucus dissociation, erythrocyte lysis, cell adhesion, sterilization inactivation five functions in one.
Long-term preservation: preservation reagent samples stored at room temperature for 30 days.

The main technical parameters:
◆ L * W * H: 800 * 600 * 550mm (mm).
◆ seven-inch color touch screen.
◆ Producer Number: Producer loop 1 to 12.
◆ centrifugal Copies: 12 people.
★ cell diameter: 13 or 17 mm optional
★ Producer Channels: 4 channels
