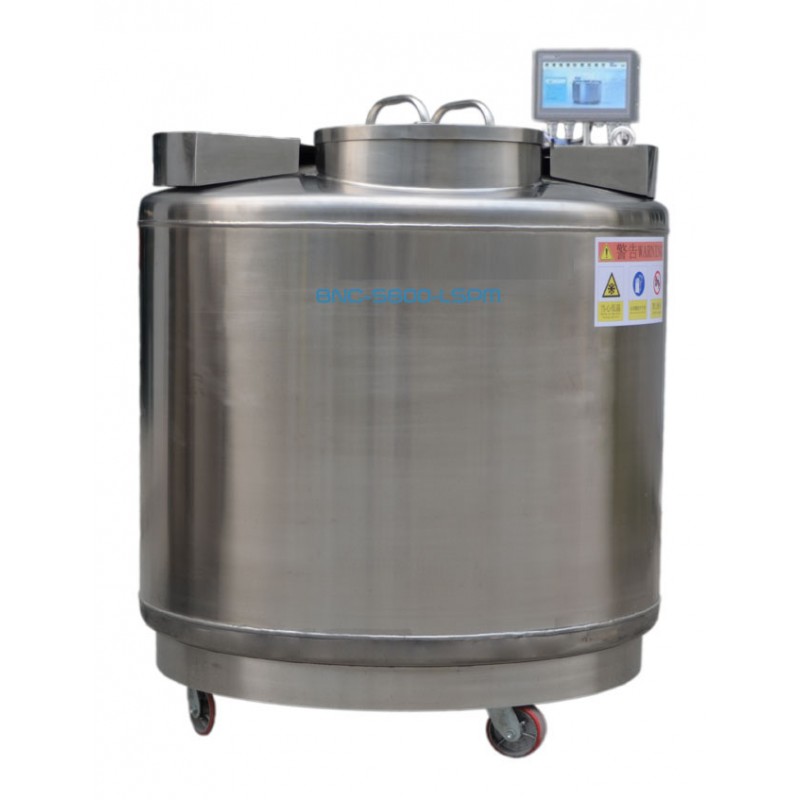

Storing Series Liquid Nitrogen Container, Stainless steel

Model: BNC-S Series

Storing Series Liquid Nitrogen Container, made of stainless steel, used for for long-term static preservation in liquid of a large number of biological samples such as stem cell, plasma, semen, embryo, tissue, organ, and so on

More details

Get Quote

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

PRODUCT QUALIFICATION:
CE certificate National cryogenic container quality supervision and inspection center

APPLICATION RANGE:
It is appropriate for long-term static preservation in liquid of a large number of biological samples such as stem cell, plasma, semen, embryo, tissue, organ, and so on.

PRODUCT FEATURE:
1. Specially designed for immersion cryogenic preservation;
2. Special vacuum and neck technique make very low evaporation rate and operation cost;
3. Two steps design, various pallet options and rotation type make it easy to access;
4. Powerful smart monitor and high precision core data monitoring make the safety of the samples and the equipment;
5. Smart monitor real-time monitor the level, temperature, liquid nitrogen remaining capacity, liquid nitrogen evaporation rate and other data; It could be connected with internet computer in the monitoring center, make it easy to centralized manage the data;
6. 19 kinds of fault alarm, alarm information can be sent to mobile phone;
7. Overheated gas would be discharged automatically while in-charging liquid nitrogen;
8. One button to demist.

SPECIFICATIONS:

BNC-S stainless steel liquid nitrogen container
LS series	BNC-S400-LSPM	BNC-S600-LSPM	BNC-S1000-LSPM	BNC-S1500-LSPM	BNC-S1800-LSPM
Capacity (L)	304	530	858	1493	1635
Liquid nitrogen capacity under the pallet (L)	26	85	187	150	150
Neck diameter (mm)	326	460	610/635	610	610
Inner height (mm)	607	478	375	791	900
Outer diameter (mm)	870	1180	1565	1565	1565
Height (mm)	1130	1120	1116	1520	1630
Empty weight (kg)	207	367	710	900	970
Operation height (mm)	1130	1120	1116	1040	1080
Maximum storage capacity
1.2, 1.8, 2ml vials	13000	26400	35100	76050	87750
Racks with 10*10 vial boxes	12	32	54	54	54
Racks with 5*5 vial boxes	4	4	18	18	18
Vial boxes per racks	10	8	6	13	15
Goblets/Canister :Straws/Goblet	——	3/168	2/168	——	——
SUC-1 canister	——	180	292	——	——
1.2 ml vials on canes	——	25920	42048	——	——
2.0 ml vials on canes	——	14400	23360	——	——
1/2 cc straws 10/cane	——	55800	90520	——	——
Maximum storage capacity
0.5 ml vials	18200	33000	52650	102600	117000
Racks with 5*5 0.5 ml vial boxes	4	4	18	12	18
Racks with 10*10 0.5 ml vial boxes	12	32	54	54	54
Vial boxes per racks	14	10	9	18	20

Blood bag capacity
Blood bag types	Total Bags	Bags/Frame	No. Frames	Total Bags	Bags/Frame	No. Frames	Total Bags	Bags/Frame	No. Frames	Total Bags	Bags/Frame	No. Frames	Total Bags	Bags/Frame	No. Frames
25ml	1272	6	212	1920	4	480	2358	3	786	5502	7	786	6288	8	786
50ml (4R9951)	792	6	132	1152	4	288	1458	3	486	3402	7	486	3888	8	486
250ml(4R9953)	288	3	96	472	2	236	780	2	390	1560	4	390	1560	4	390
