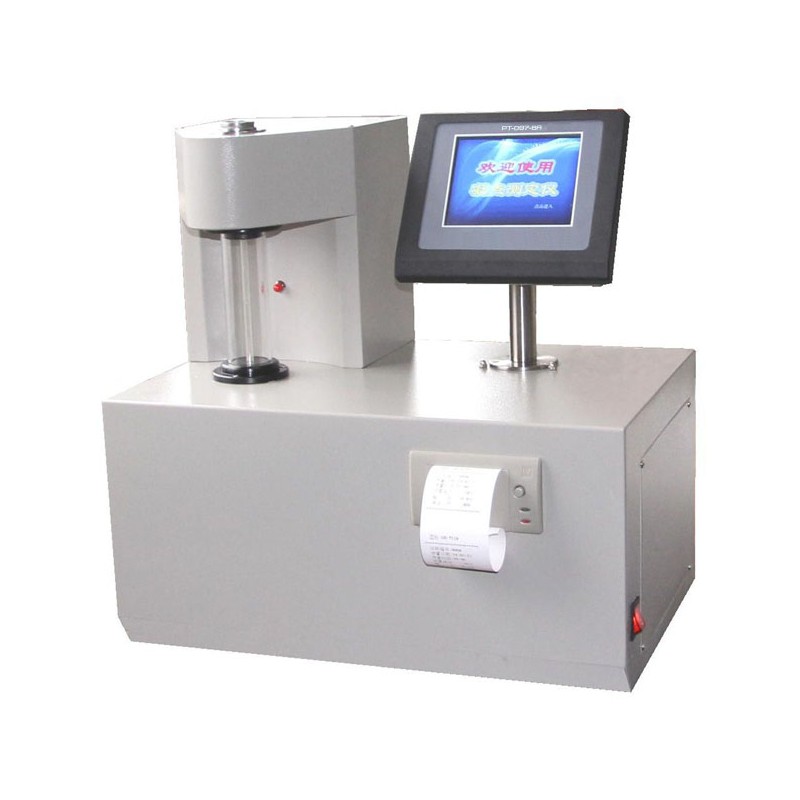

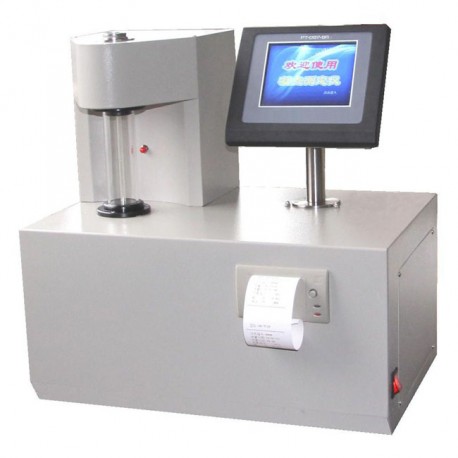

PT-D97-6A Automatic Pour Point Tester

PT-D97-6A Automatic Pour Point Tester is designed and manufactured in accordance with the National Standard GB/T510 and GB/T3535 provisions, for the determination of the freezing point value/ pour point value of transformer oil, lubricating oil and light oil, the LCD screen English interactive interface, parameters as refrigeration depth, test oil label, test pressure, test date have menu-oriented input, convenient and intuitive. English operating software prompt modification function, clear interface, easy to operate, to print test data, the whole test process realized computer automation, is the ideal alternative products of imported equipment.

Features:

1. Graphical display of dynamic simulation test process;
2. Real-time tracking of the oil temperature changing state;
3. Semiconductor refrigeration, test speed fast, accurate results;
4. Separate test condensation/pour point, can also be tested simultaneously, in one machine;
5. Oiling, test, put the oil, print test data microcomputer automatically finished;

Main technical parameters:
1. Applicable oils:  The oils with solidifying point at -60°C ~ 10°C
2. Precision:   ±1°C (HWY-15 Low-temperature circulatory water bath is needed when the solidifying point is lower than -50°C )
3. Display resolution:  0.1°C
4. Maximum cooling depth:  Temperature difference ≥65°C
5. Cooling speed:    15min temperature difference≥60°C
6. Requirement for cooling water:    Pressure: (4.9×10 ~ 49×105)Pa
                               Flow rate: 1.5L/min
7. Power supply:    AC220V±22V, 50Hz
8. Maximum power consumption:    250W
9. Sample dose:    20ml per time
10. Working environment:  Ambient temperature:(25±10)°C,  RH ＜85%
11. Dimension:    460mm×360mm×470mm
12. Net weight:    26Kg
