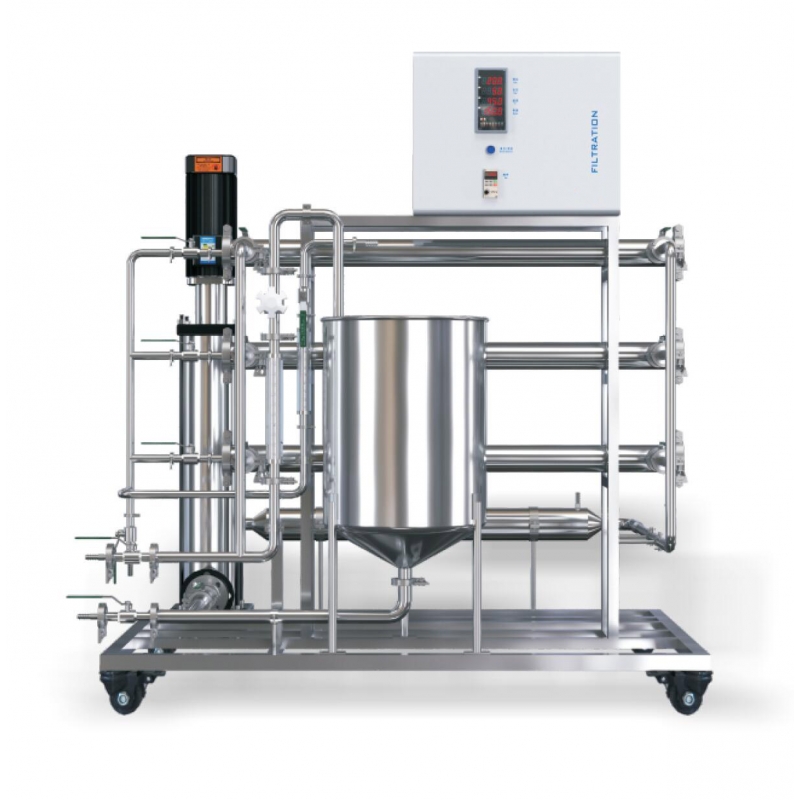

Multifunctional membrane separation device

Basic information
● Model：MSE -2540
● Processing capacity：20～50L/H
● Membrane element: GE imported roll type membrane, Single membrane area 1.2～1.5㎡
● Power unit：Imported GRUNDFOS pump、0～25Bar（Frequency adjustable）
● Material circulation tank：Effective volume V=60L

System overview
●Laboratory type MSE-2540 mainly used in separation and purification of ultrafiltration (UF), nanofiltration (NF) and reverse osmosis (RO), can be used for filtration, decoloration, desalination, purification and concentration
●According to the size of the molecular weight of the separation material, the membrane is selected; The material from 0.03 mu m to 100daltion can be separated.
●With the advantages of easy cleaning, maintenance and high freedom of use.

Power unit
●Imported GRUNDFOS pump
●Variable frequency control, adjustable from 20 to 50Hz, with wide range of use
●Rate of flow：200～1100L/H
●Pressure：0～25 Bar adjustable

Membrane Shell
●3 parallel membrane wall
●Connection: High pressure clamp quick release connection, pressure 20Mpa
●Material：AISI 304
●Surface treatment: External surface brushed treatment, inner surface mirror polishing, with food hygiene grade

Roll type membrane elements
●3 pieces GE imported roll membrane
●Model No.: 2540 industrial separation membrane, anti fouling membrane
●Scope of application: microfiltration, ultrafiltration, nanofiltration, reverse osmosis
●The 2540 membrane has GE, Dow Chemical brand membrane with rich diversity lateral comparison test; The universal membrane shell adapts to a variety of brand membrane

Control cabinet
●Field instrument control cabinet
●Control mode: PID instrument control, automatic adjustment
●Sensor: Temperature electrode, pressure sensor, frequency conversion motor
●Flow meter: Field flow meter, manual adjustment
●Instrument: Four in one display + control instrument, frequency conversion regulator

Material standard
●Contact material part：Material AISI 304, sanitary hose
●Non contact material part：Material AISI 304, carbon + spray paint
●pipeline：Sanitary seamless stainless steel pipe
●Valve: Food grade sanitary direct pass ball valve, diaphragm valve

Specification parameter

 Processing capacity：   20～50L/h

 Power unit：  Imported GRUNDFOS pump, frequency conversion control, with high voltage protection settings

 Working pressure：   0～25 bar adjustable

 Membrane element：
●  Membrane species： GE imported roll type separation membrane - roll type ultrafiltration, nanofiltration, RO membrane
●  Quantity：3
●  Single membrane area：effective area 1.2～1.5 m2
●  Membrane element length：1016mm
●  Membrane shell:  Material AISI 304、high pressure clamp quick disconnect、Anti-pressure : 20Mpa
●Membrane aperture：Interception accuracy >95%( Standard material test) MWCO 200KD,100KD， 10KD,5KD, 2K,1K,600D,300D,150D,100D， RO，customized



 Valves, flow meter：  Imported automatic ball valve, imported liquid mass flow meter

 pipeline：   Material AISI 304, sanitary inside and outside polishing, with stainless steel pipe heat exchanger

 Electric control cabinet：
● Online monitoring of temperature, pressure and liquid flow rate
● Pump frequency conversion controller, real-time display of speed and frequency
● Temperature and pressure preset alarm


 Material circulation tank：            AISI 304, effective volume =60L

 System upgrade：
 ●Material, heat exchanger, flowmeter, valve, pump, etc., can be customized according to the user's environment
●Semi automatic and automatic control system can be customized according to user requirements
●Remote control, mobile iPad control system can be customized according to user requirements

 Size：          1400x1000x1800mm

 Weight：        100kg
