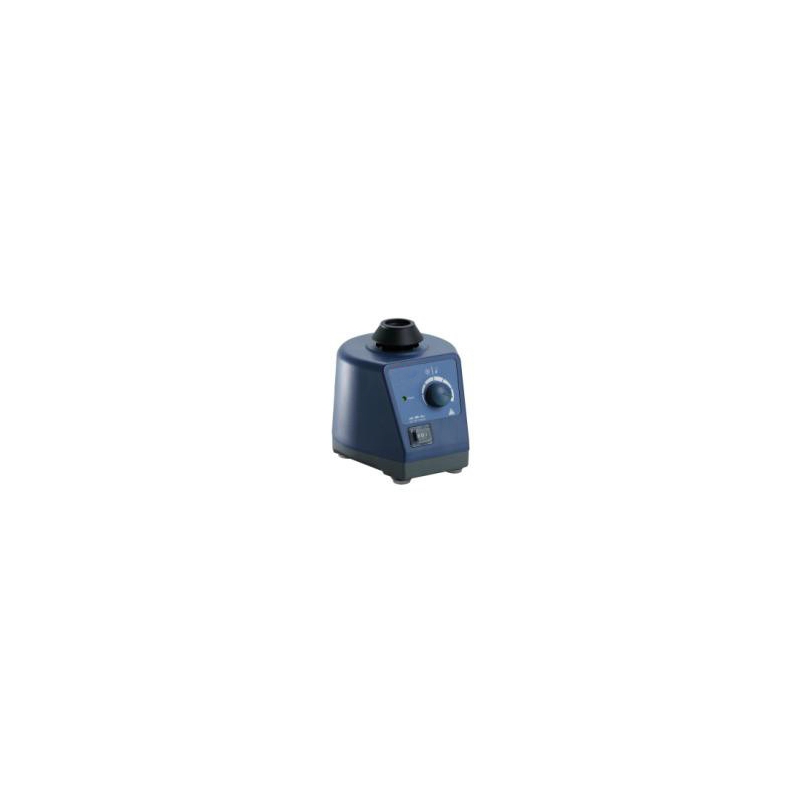

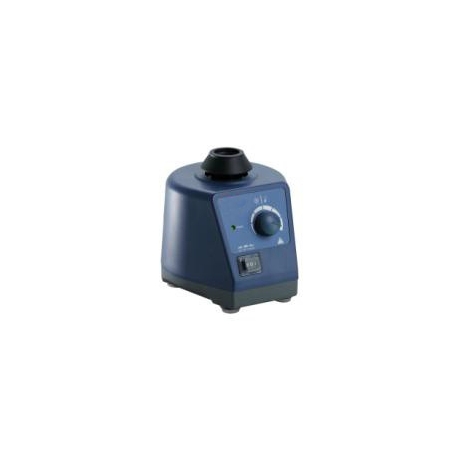

Vortex Mixer Microplate Mixer MX-F

Advantages for the user

 Features

Small and easy to use

 Touch operation or continuous mode

Wide applicability

 Various adapters fit for different tubes

Stability on the table

 Specially designed vacuum suction foot for body stability

 110-120V/220-230V, 50/60Hz

Power

 60W

 Mixing motion

 Orbital

 Orbital diameter

 4mm

 Motor type

 Shaded pole motor

 Motor rating input

 58W

 Motor rating output

 10W

 Speed range

 2500rpm

 Run type

 Touch operation/Continuous

 Dimensions [W × H × D]

 127×130×160mm

 Weight

 3.5kg

 Permissible ambient temperature

 5-40℃

 Permissible relative humidity

 80%

 Protection class

 IP21

Cat. No.

P/N

Power supply

8031101000

MX-F

Cn plug, 220/50Hz

Cn plug, 220/60Hz

USA pug, 110/50Hz

USA pug, 110/60Hz

Euro plug, 220/50Hz

Euro plug, 220/60Hz

UK plug, 220/50Hz

UK plug, 220/60Hz

P/N

Descriptions

18900034

VT1.1

 Standard top cup，for <Ø30mm tubes and small vessels

18900044

VT1.2

 Tube holding rod, used with VTI.3.1 to VTI.3.5

18900035

VT1.3

 Universal top plate，100mm plate attachment , free of Rubber vacuum suction foot (18900158, 4pcs)

18900020

VT1.3.1

 Tube adapter, for 48 holes test tubes, Ø6mm, used with VT1.3/ VT1.2/PS1.1

18900021

VT1.3.2

 Tube adapter, for 15 holes test tubes, Ø10mm, used with VT1.3/ VT1.2/PS1.1

18900022

VT1.3.3

 Tube adapter, for 12 holes test tubes, Ø12mm , used with VT1.3/ VT1.2/PS1.1

18900023

VT1.3.4

 Tube adapter, for 8 holes test tubes, Ø16mm, used with VT1.3/ VT1.2/PS1.1

18900024

VT1.3.5

 Tube adapter, for 8 holes test tubes, Ø20mm, used with VT1.3/ VT1.2/PS1.1

18900043

VT1.3.6

 Platform pad, for <Ø99mm tubes and small vessels

18900158

VT1.3.7

 Rubber vacuum suction foot with screw, 1pc
