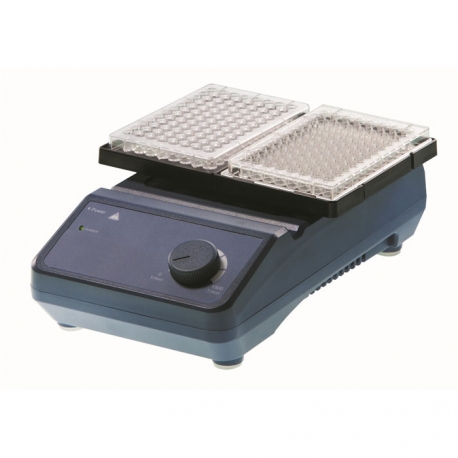

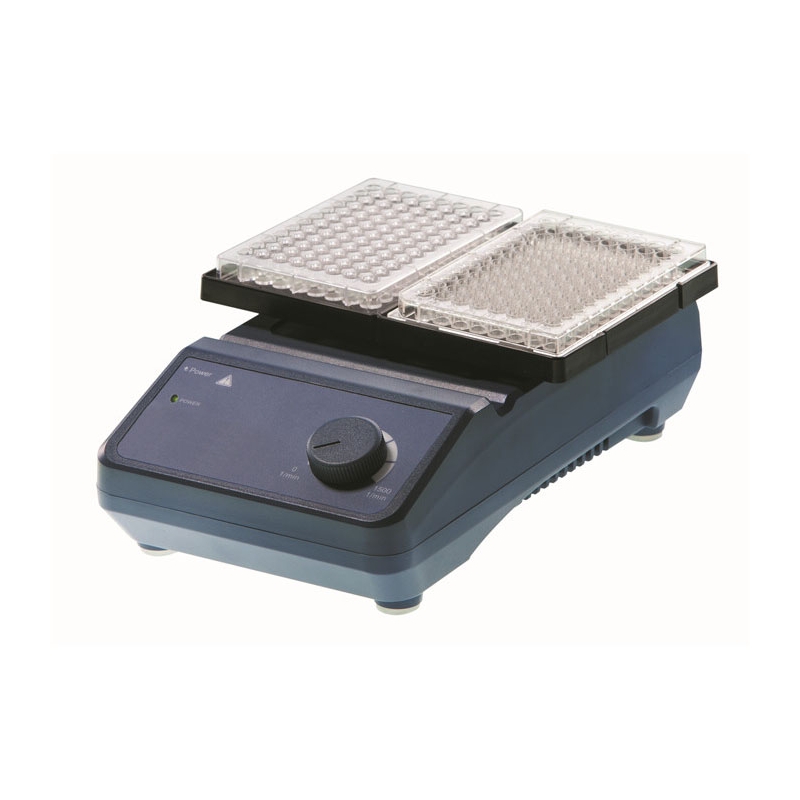

Microplate Mixer with Microplate clamp MX-M

Advantages for the user

 Features

Special design to accommodate microplates

 Can be used for double microplates

Wide applicability

 Various adapters fit for different tubes

Maintenance free motor

 Brushless DC motor

 Orbital

 Orbital diameter

 4.5mm

 Max. shaking weight(with accessory)

 0.5kg

 Motor type

 Brushless DC motor

 Motor rating input

 18W

 Motor rating output

 10W

 Speed range

 Single microplate: 0-1500rpm ; Double microplate: 0-1000rpm

 Speed display

 Scale

 Voltage

 100-240V, 50/60Hz

 Power

 20W

 Dimensions (D × W × H)

 260 × 150 × 80mm

 Weight

 3kg

 Permissible ambient temperature and humidity

 5~40℃, 80%

 Protection class

 IP21

Cat. No.

P/N

 Descriptions

 Power supply

8031202000

MX-M

 Microplate Mixer inlcude Microplate clamp, 18900067

 USA plug,100V-220V/50Hz/60Hz

 Cn plug,100V-220V/50Hz/60Hz

 Euro plug,100V-220V/50Hz/60Hz

 UK plug,100V-220V/50Hz/60Hz

P/N

 Descriptions

18900067

PS1.1

 Universal top plate(round)，used with VT1.3.1--5

18900020

VT1.3.1

 Tube adapter, for 48 holes test tubes, Ø6mm (0.5ml), used with VT 1.3/ VT 1.2/PS1.1

18900021

VT1.3.2

 Tube adapter, for 18 holes test tubes, Ø10mm (1.5-2.0ml), used with VT 1.3/ VT 1.2/PS1.1

18900022

VT1.3.3

 Tube adapter, for 12 holes test tubes, Ø12mm (2-7ml) , used with VT 1.3/ VT 1.2/PS1.1

18900023

VT1.3.4

 Tube adapter, for 8 holes test tubes, Ø16mm (4-15ml),  used with VT 1.3/ VT 1.2/PS1.1

18900024

VT1.3.5

 Tube adapter, for 8 holes test tubes, Ø20mm (20ml), used with VT 1.3/ VT 1.2/PS1.1

18900042

PS1.2

 Microplate clamp

18900079

MXM-116

 Double microplate clamps
