More info
1. Features
Performance reliability: overall composite rotor, high strength, stable performance;
Clean oil-free: adopt with grease lubricated precision ceramic bearings ,no oil vapor contamination;
Any angle: can be installed at any angle for easy system integration;
Easy to use: water, electricity, gas interface connection simple and convenient, customers can choose air or water cooled depending on the usage environment and conditions ;
Wide application: for mass spectrometry, surface physics, coating, ion etching, physics and other fields;
2.Technical Index

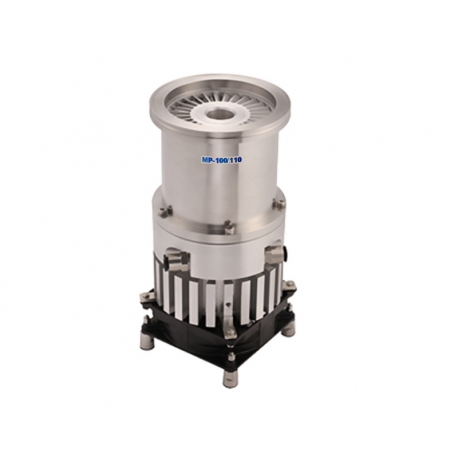

Model | MP-100/110 |
Pumping rate (L / s) | 110 |
Exhaust port flange | KF25(DN25 KF) |
Air inlet flange | DN100 LF、DN100 CF |
Compression ratio | N2：108； H2：5×102 |
Ultimate pressure (Pa) | ≤6×10-6 (DN100 LF) |
≤6×10-7 (DN100 CF) | |
Recommended to start pressure (Pa) | ＜100 |
Rated speed (rpm) | 42300 |
Start Time (min) | ＜2 |
Bearing | Precision greased ceramic bearings |
Vibration value ((mm)) | ≤0.1 |
Recommendations before the pump (L / s) | 2 |
Amount of oil (ml) | Grease lubrication |
Tap | An inner diameter Φ10-line self-sealing |
cooling method | Air-cooled or water-cooled |
Cooling water flow (L / min) | 1 |
Cooling water pressure (mpa) | 0.15 |
Cooling water temperature (℃) | ≤25 |
Pump baking temperature (℃) | ≤100 |
Ambient Temperature (℃) | 5-40 |
Lubrication | Grease lubrication |
Mounting direction | Any angle |
Weight (kg) | 8 |
