Multi-Purpose Tester

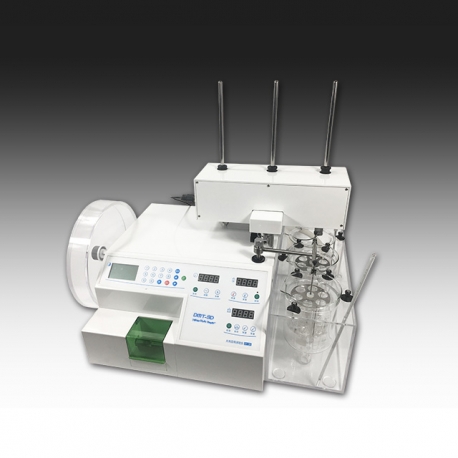

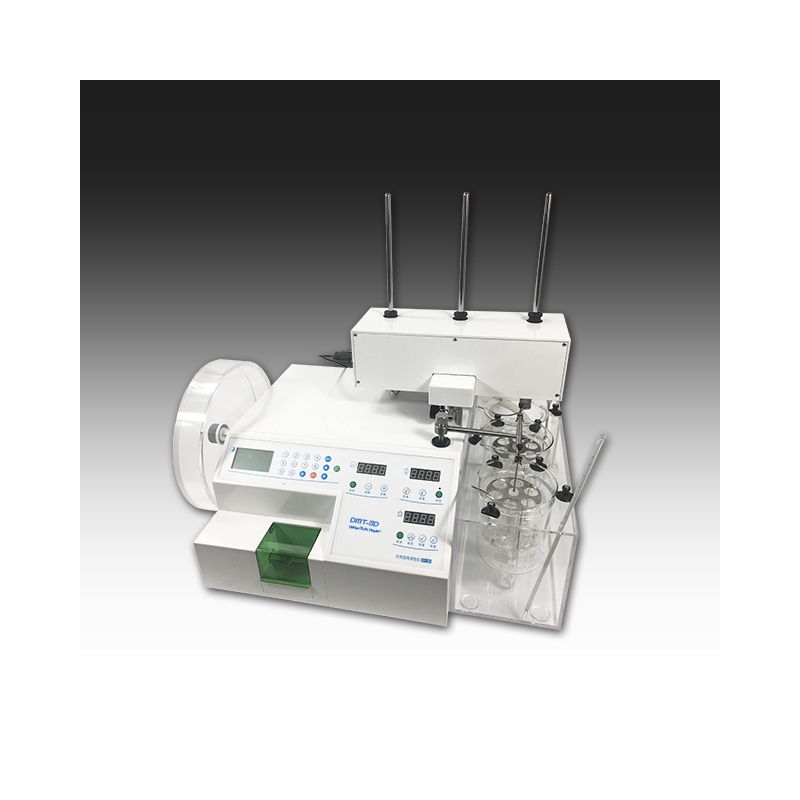

Drug Tablet Multi-Purpose Tester

DMT-3D

More info

Description
DMT-3D tablet four-purpose measuring instrument is an upgraded product of our company. This product is a new product based on the original tablet four-purpose tester. The instrument is multi-purpose, which is used for testing the hardness, friability, disintegration time and dissolution of tablets. It scientifically completes the detection of various properties of tablets in one instrument. DMT series tablet measuring instrument is the best instrument for testing the drugs by scientific research units, universities, drug testing departments and pharmaceutical companies. The technical indicators of this product are in line with the provisions of the Chinese Pharmacopoeia 2015. It is an extremely ideal multi-purpose drug testing instrument.

Product Features

  1. Simple and user-friendly operation interface and method.
  2. Four functions of one machine: dissolution rate, disintegration time limit, tablet hardness, tablet friability; more efficient and convenient.
  3. Smaller size, reducing the footprint of the lab bench.
  4. 3pcs baskets or paddles can be installed, 3pcs 185mm vessels and 2pcs 1000ml flat beakers can be placed.
  5. High-definition transparent lens window above the hardness test chamber, which is clear and intuitive for each test process.
  6. Accurate speed, stable operation, low energy consumption and high reliability.
  7. With fault self-diagnosis function.

Specifications

Product model

DMT-3D

Dissolution

Stirring paddle swing amplitude

≤0.5 mm

Basket swing range

≤1.0 mm

Deviation between rotating rod and vessel axis

≤2.0 mm

Speed setting range

25-250 rpm/min

Steady speed error

≤±1 rpm/min

Temperature range

Room temperature ~ 45.0 ° C

Temperature resolution

0.1 °C

Temperature control accuracy

≤±0.5 °C

Dissolution cup specification

Height 185mm, volume 1000ml

Number of vessels

3 PCS

Disintegration time limit

Basket lifting frequency

30~32 times/minute

Basket lifting amplitude

55mm±1mm

Minimum distance from the screen to the bottom of the cup

25mm±2mm

Screen aperture

2mm (with optional)

Temperature range

Room temperature ~ 45.0 ° C

Temperature resolution

0.1 °C

Temperature control accuracy

≤±0.5 °C

Flat bottom beaker volume

1000ml

Number of flat bottom beakers

2 PCS

Tablet hardness

Measuring range

Hardness 10-200N, maximum diameter of tablets 25mm

Resolution

0.01N

Precision

±1.5%±1digit

Hardness measurement unit

N / kg / kgf (optional)

measurement method

Automatic single/continuous multiple times

Tablet friability

Drum size

Inner diameter of about 286mm, depth 39mm

Pill slip height

156mm

Default speed

25rpm/min

Default number of circles

100 laps

Number of turns setting range

25-999 laps

Number of drums

1 PC

other

power supply

AC220V±10%, 50Hz
