Multi-Purpose Tester

Smart Tablet Four-purpose Measuring Instrument

DMT-6DN

More info

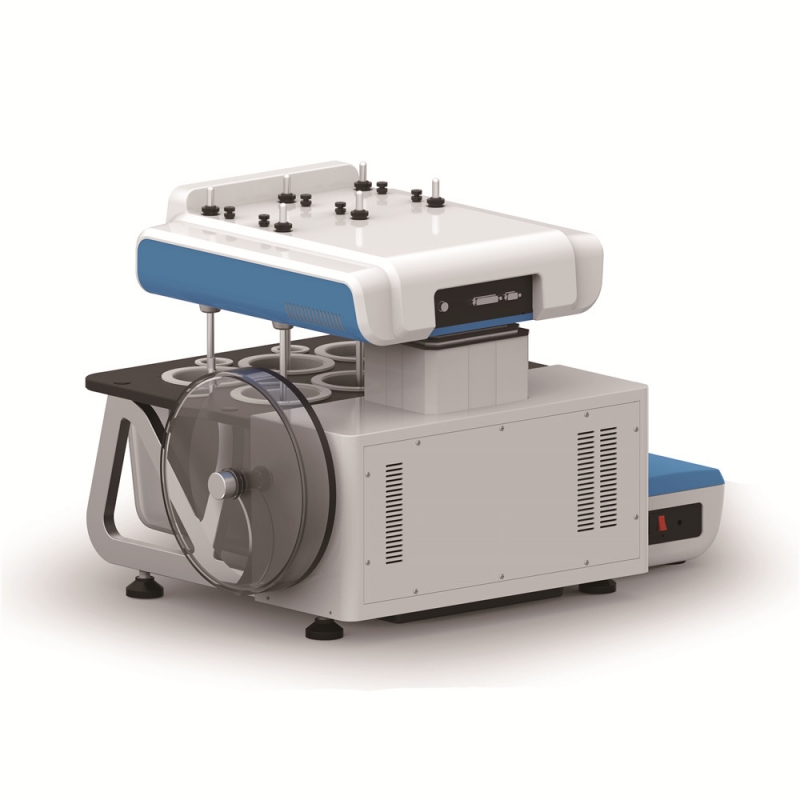

DMT-6DN smart tablet four-purpose measuring instrument integrates four functions of dissolution, disintegration time limit, tablet hardness and tablet friability. It adopts international advanced design concept and manufacturing technology, and its shape is smooth and beautiful. Compact and stable, with high reliability and easy operation. At the same time, it has the characteristics of “accurate speed”, “stable operation” and “low energy consumption”. This product is widely used in pharmaceutical factories, medical research, teaching and research and drug inspection departments. The functional technical indicators are in full compliance with the Chinese Pharmacopoeia 2015 Edition and generic drug conformity evaluation standards.

Product Features

  1. The technical indicators of each function are in full compliance with the "Chinese Pharmacopoeia 2015 Edition" and generic drug conformity evaluation standards.
  2. Built-in user rights management, data management system, and long-term storage of test data.
  3. More accurate integrated circuit design to ensure measurement accuracy.
  4. More complete, simple and user-friendly operation interface and method.
  5. Four functions of one machine: dissolution rate, disintegration time limit, tablet hardness, tablet friability; more efficient and convenient.
  6. Smaller size, reducing the footprint of the lab bench.
  7. 6 baskets or paddles (optional Teflon coating) can be installed, and 6 185mm high-precision vessels can be placed.
  8. More precise temperature control system and more convenient drainage system.
  9. High-definition transparent lens window above the hardness test chamber, which is clear and intuitive for each test process.
  10. The speed is more accurate, the operation is stable, the energy consumption is low, and the reliability is high.
  11. With fault self-diagnosis function; detection data can be exported and printed by USB.
  12. Optional small cup method accessories (for the third method of dissolution determination).

Specifications:

Product model

DMT-6DN

Dissolution

Stirring paddle swing amplitude

≤0.5 mm

Basket swing range

≤1.0 mm

Deviation of shaft paddle, basket and vessel

≤2.0 mm

Speed setting range

10-300 rpm/min

turn around

Clockwise/counterclockwise

Steady speed error

≤±1 rpm/min

Temperature range

Room temperature ~ 45.0 ° C

Temperature resolution

0.1 °C

Temperature control accuracy

≤±0.3 °C

Sampling cycle points

Up to 100 different sampling periods

Sampling cycle time

1 minute ~ 99 hours 59 minutes

Number of paddles and baskets

6 each

Number of baskets

6 pcs

High precision dissolution cup specifications

Height 185mm, volume 1000ml

High-precision vessel number

6 pcs

Disintegration time limit

Basket lifting frequency

30~32 times/minute

Basket lifting amplitude

55mm±1mm

Minimum distance from the screen to the bottom of the cup

25mm±1mm

Screen aperture

2mm (with optional)

Temperature range

Room temperature ~ 45.0 ° C

Temperature resolution

0.1 °C

Temperature control accuracy

≤±0.3 °C

Sampling cycle points

Up to 100 different sampling periods

Sampling cycle time

1 minute ~ 99 hours 59 minutes

Flat bottom beaker volume

1000ml

Number of flat bottom beakers

1

Tablet hardness

Measuring range

Hardness 10-350N, tablet diameter 2-25mm

Resolution

0.01N

Precision

±1.5%±1digit

Diameter measurement range

2.0 to 25.0mm

Diameter resolution

0.1mm

Diameter measurement accuracy

±0.1mm

Hardness measurement unit

N / kg (optional)

measurement method

Automatic single/continuous multiple times (up to 1000 times)

Tablet friability

Drum size

Inner diameter of about 286mm, depth 39mm

Pill slip height

156mm

Default speed

25rpm/min

Speed setting range

25-50 rpm/min

Default number of circles

100 laps

Number of turns setting range

1-1000 laps

turn around

Clockwise/counterclockwise

Number of drums

1 pc

other

power supply

AC220V±10%, 50Hz
