Oscillator & Shakers

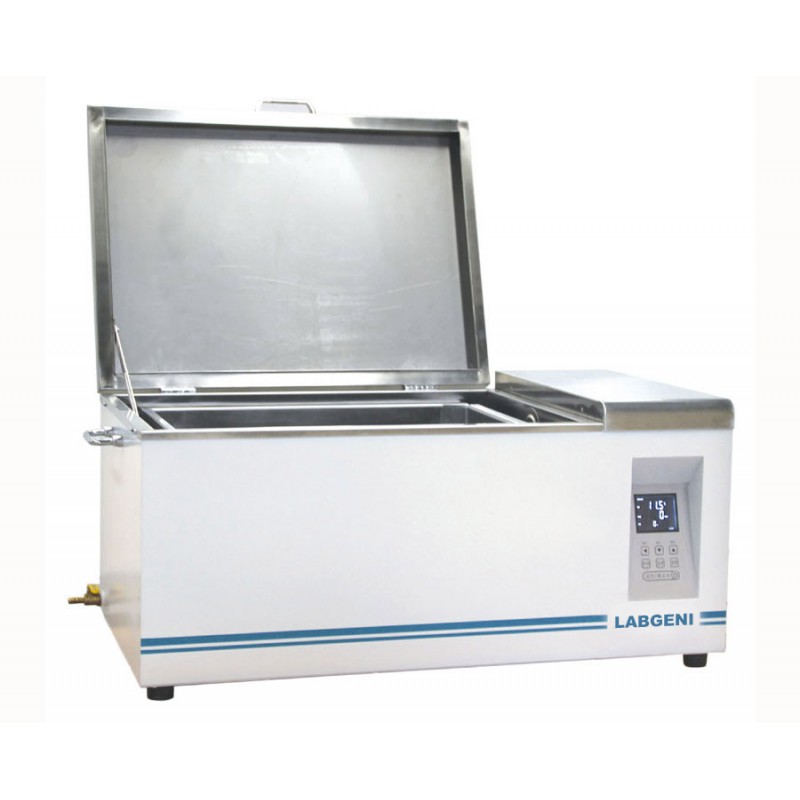

WBTS Series Thermostatic Shaking Water Bath/ Oscillator

WBTS series

WBTS series thermostatic shaking water bath/oscillator, large LCD display with PID control, inside, stainless steel inner

More details

More info

Features:

  • Large backlit LCD display, "super fuzzy PID" control, it has smaller temperature overshoot, faster settling times and better temperature control accuracy than traditional.
  • with power off memory function, to avoid power outages, crashes resulting in data loss.
  • Timer function, setting range is from 0 to 9999 minutes (hours).
  • heating system separate with water, to prevent leakage and ensure higher safety performance.
  • with over-temperature alarm, low water level automatic power-off function.
  • with a drain valve casing side, oscillation frame can be quickly removable for easy replacement test water and clean sanitation sink;
  • Using mature & high reliability AC 220V brushless servo motor control, durable, accurate speed control.
  • high strength, high performance mechanical transmission design, low noise operation, high load capacity.
  • 304 quality stainless steel sink, cradle and fixtures.

Specifications

Product name

Water bath thermostatic shaking oscillator

Model

WBTS-50

WBTS-60

Oscillation frequency

20-200rpm

Oscillation accuracy

±1rpm

Shake plate amplitude

20mm

Temp. range

Ambient Temp. ~ 99.9°C

Temp. resolution

0.1°C

Temp. uniformity

±0.2(37°C,100r/min)

Controller

PID microprocessor

Capacity (ml*pcs)

100×15 / 250×11 / 500×6

100×24/ 250×15 / 500×11/1000×6

Timer

0-9999min (hours)

Shake plate size(mm)

280X390

340×470mm

Shake plate qty

universal fixture

Power(kw)

1.8

2.3

Voltage

AC220±10% 50~60Hz

Water tank size
(W*D*H)

520X360X210

600X420X260

Dimensions
(W*D*H)

780X415X343

860X475X393

Packing size
(W*D*H)

895X540X450

980X600X500
