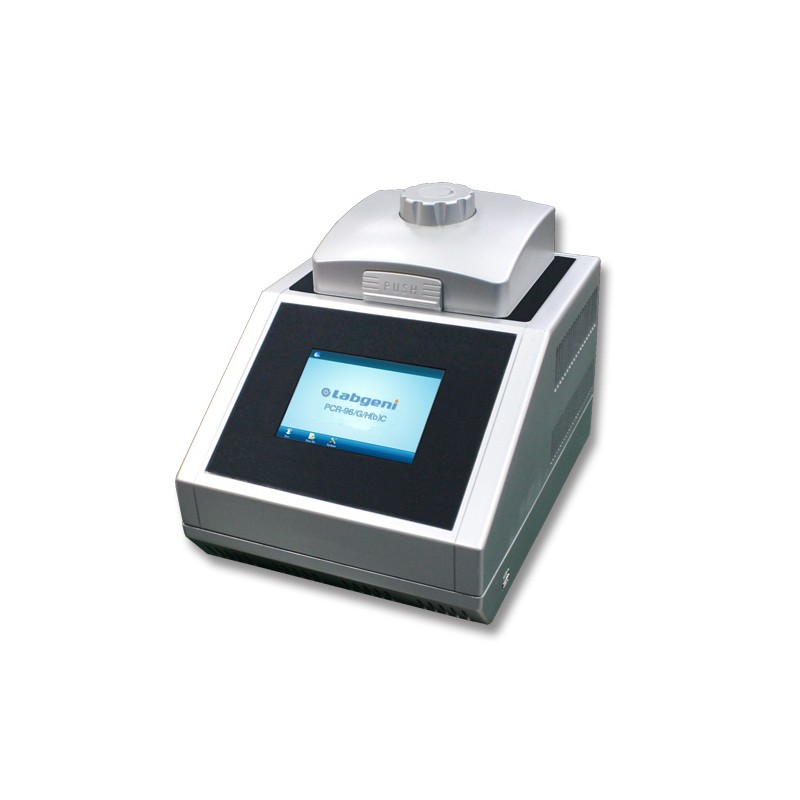

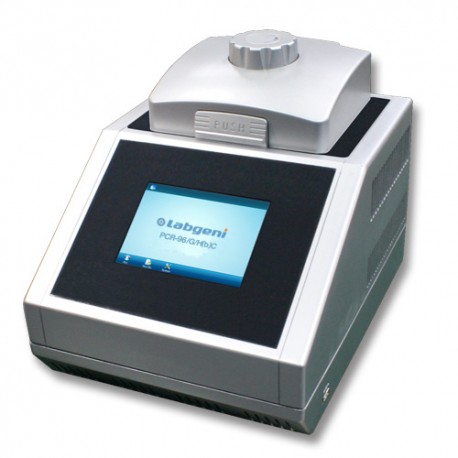

Life ECO PCR

Life ECO gene amplification instrument is 2013 following the Life Touch after the company and see a cost-effective products.
This new film adhering to the technical features of PCR series consistent, using advanced thermoelectric refrigeration technology and new TAS technology, make the overall performance to a new height: more high temperature control precision, temperature rise faster, more uniform temperature profile module, smaller volume, operating environment is more static. The grace of functionally gradient not only has 30 DEG C, can be used to optimize the experimental conditions, meet the most demanding needs of, at the same time, the continuation of the Life Touch's "USB" function, leading the global PCR industry products fashion. On the basis of LifeTouch, LifeECO replacement for the higher price of 5.7 inches of LCD color touch screen, the display and convenient operation and direct.

Well-designed:

1. Wide input voltage:100-240V 50-60Hz, Use the closed magnetic protection power, filtrate clutter power, it ensures the repeatability of experiments
2. UL/CSA/CE/RoHS certificated
3. Using ARM9 CPU to improve the speed greatly
4. Imported of industrial cooling fans, dual ball bearing up to 70,000 hours
5. The self-test makes sure the Life Eco in normal and protect the experiment
6. Full tailor-made long-life Peltier devices to ensure the instrument’s life and safety
7. FLASH memory for program storage, ensure running programs are being saved when power failure happened
8. RAM memory as an instrument of memory to ensure the running speed
9. Integrated structure, high reliability, good stablility, shock proof and crash resistant
10. Fully automatic SMT production line to ensure the reliability of the circuit board

Easy experiment

1. Intuitive interfaces
   1. 5.7 inch large touch screen colorful display, the bilingual language choices, direct communication.
   2. Setting at a glance, powerful program editing function, flexible and efficient to define your application.
   3. Pause Function, the program can be run manually or pre-program suspended.
   4. POST normal state to ensure the equipment to protect the safety test, improved user management, password protection, experimental procedures to copy, delete, operating etc.
   5. Several kinds of file stage for your choice: Equipment storage, USB FLASH. Take your experiment data everywhere with you, USB port to a computer.
   6. Upgrade, software scalability, and free upgrade to meet future experimental technique development.
2. Superior performance
   1. Using the unique TAS technology, Life Eco avoids the edge effect of thermal conduction of block, provides PCR experiment with first-class temperature uniformity. It ensures repeatablility of results.
3. Multiple temperature control modes
   1. The users can choose TUBE mode or BLOCK mode. The BLOCK mode directly reflects the changes of metal block. While the simulating TUBE mode is able to demonstrate the actual temperature changes of reagents. According to the reagents, choose a suitable temperature control mode can achieve the best conditions of amplification
4. Excellent gradient function
   1. BIO-DL gradient function thermal cycler, the temperature range up to30℃, to meet the needs, even the most demanding tests
5. Smart block
   1. When the hot lid is heating, the block can keep lower temperature to improve amplification specificity.
6. Network function
   1. One computer can control many Life Eco, best for massive experiment or industry
7. Extensive experiment application
   1. Swift temperature variation. The temperature heating/cooling is adjustable based on the necessary of the experiment.
   2. Time progressive increase/decrease function. Suitable for Long PCR, which can apply to amplify the PCR template longer than 5kb.
   3. The function of the temperature progressive increase/decrease, suitable for Touchdown PCR.
   4. Suitable for nested PCR

Specifications:
